Details
|
Product SKU
| |
|---|---|

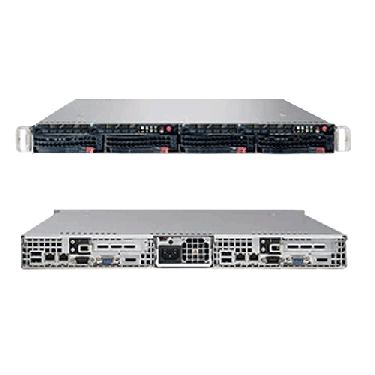

| AS-1021TM-INF+B | • A+ Server 1021TM-INF+B (Black) |
|
Motherboard
| |
|---|---|
| • 2x H8DMT-INF+ | |
| Processor/Cache (per node)
|
|
|---|---|
| CPU | • Support two Six-Core AMD Opteron™ 2000 Series (Socket F) processors NOTE: Support processors with Max ACP ≤ 75W |
| Chipset | • nVIDIA MCP55V-Pro chipset with up to 2.4GHz Hyper Transport Link support |
|
System Memory (per node)
| |
|---|---|
| Memory Capacity | • Sixteen 240-pin DIMM sockets • Up to 128GB of Reg. ECC DDR2 memory |
| Memory Type | • Reg. ECC DDR2 800/667/533/400 MHz |
| DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB, 4GB, 8GB |
| Memory Voltage | • 1.8 V only |
| Error Detection | • Corrects single-bit errors, detects
double-bit errors (using ECC) |
|
On-Board Devices (per node)
| SATA | • nVIDIA MCP55V-Pro controllers RAID 0, 1 support |
|---|---|
| Network Controllers | • nVIDIA MCP55V-Pro Dual-port Ethernet controllers |
| VGA |
• XGI Z9S 32MB PCI Graphics Controller |
| Infiniband | • Mellunox MT25204 20Gbps controller Single port |
|
Expansion Slots (per node)
| PCI-Express | • PCI-E x16 (low-profile) slot |
|---|
|
Input/Output (per node)
| SATA | • 4x Serial ATA ports | LAN | • 2x RJ45 LAN ports |
|---|---|
| Infiniband | • 1x External Infiniband port |
| USB | • Total of 6 USB 2.0 Compliant ports • 2x USB rear ports • 2x USB internal headers • 2x USB internal ports (Type A) |
| VGA | • 1x VGA port |
| Serial Ports | • 1x Header, 1x Port |
|
Dimension and Weight
| |
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 27.75" (704mm) |
| Gross Weight | • 34 lbs (15.4kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Two sets of independent Power switch and reset button |
| LEDs |
• Power status LED |
|
Chassis
| |
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC808T-980 |
|
Drive Bays
| |
|---|---|
| Hot-swap | • Two sets (4 total) of 2x 3.5" hot-swap SATA Drive Bays |
|
System Cooling
| |
|---|---|
| Fans | • Six heavy duty counter-rotating fans with optimal fan speed control and air shroud |
|
Power Supply
| |
|---|---|
| 980W AC-DC power supply w/ PFC | |
| AC Input | • 100 - 240V, 60-50Hz, 14-6 Amp |
| +5V sb |
• 4 Amp |
| +12V | • 81 Amp |
|
System BIOS
| |
|---|---|
| BIOS Type | • 8Mb Flash EEPROM with AMI® BIOS |
| BIOS Features |
• Plug and Play (PnP) |
|
Management
| |
|---|---|
| Softwarer | • Optional IPMI (Intelligent Platform Management Interface) 2.0 • Super Doctor III • Watch Dog • NMI |
| Power Configuration |
• ACPI Power Management • Wake-On-LAN (WOL) header • CPU Fan auto-off in sleep mode • Power-on mode control for AC power loss recovery |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +3.3V, +5V, ±12V, +5V Standby, HyperTransport Link voltage, memory voltage, VBAT, Chipset voltage |
| FAN | • 6x fans w/ tachometer status monitoring • Status monitor for speed on / off control |
| Temperature | • Monitoring for CPU and chassis environment • environment CPU Thermal Trip Support • Thermal Control for 6x Fan Status • I2C Temperature Sensing Logic |
| LED | • CPU / System Overheat LED |
|
Operating Environment / Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
