Details
|
Product SKU
| |
|---|---|

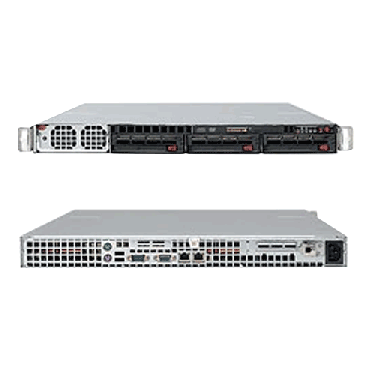

| AS-1041M-T2+B | • A+ Server 1041M-T2+B (Black) |
|
Motherboard
| |
|---|---|
| • Super H8QMi-2+ | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Quad 1207-pin Socket F • Supports up to four Six-Core AMD Opteron™ 8000 Series (Socket F) processors • HT3.0 Link support |
| Chipset | • nVidia MCP55 Pro • NEC uPD720400 |
|
System Memory
| |
|---|---|
| Memory Capacity | • Thirty-two 240-pin DIMM sockets • Supports up to 256GB DDR2 800/667/533 MHz memory * • Single or Dual (recommended) channel memory support • For Quad CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Memory Type | • DDR2 667/533/400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 256MB, 512MB, 1GB, 2GB, 4GB ** |
| Memory Voltage | • 1.8V only |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| SATA | • nVidia MCP55 Pro SATA2 3.0Gbps Controller • 6 SATA2 Ports • nVidia RAID 2.0 • SATA RAID 0, 1, 0+1, 5 JBOD Support |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • 200-pin IPMI slot • (Optional: AOC-SIMLC(+) R 3.00) • (Optional: AOC-SIM1U(+) R 3.00) • RMM (Remote Management Module) • Card not included) Note: Dedicated LAN connection is required for KVM-over-LAN function. |
|---|---|
| Network Controllers | • Intel® 82546GB Dual Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Super I/O | • Winbond 83627HG |
| VGA |
• ATI ES1000 Graphics Controller |
|
Input/Output
| SATA | • 6 SATA2 ports | IDE | • Single EIDE channel support up to two UDMA IDE devices • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA 100 / 133 |
Floppy | • 1 Floppy port; 1.44 MB support | LAN | • 2 RJ45 LAN ports | USB | • Up to 4 USB Ports 2.0/1.1 Compliant • 2 Rear Ports • 2 Internal Headers |
Keyboard/Mouse | • PS/2 keyboard and mouse ports |
|---|---|
| Serial Ports | • 1 Fast UART 16550 serial port • 1 Header |
| VGA | • 1 VGA port |
|
System BIOS
| |
|---|---|
| BIOS Type | • 8Mb Flash EEPROM with AMI® BIOS |
| BIOS Features |
• Plug and Play (PnP) |
|
Chassis
| |
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC818TQ+-1000LPB |
|
Dimension and Weight
| |
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 27.75" (705mm) |
| Gross Weight | • 43 lbs (19.5 kg) |
| Available Colors | • Beige, Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
|
Expansion Slots
| |
|---|---|
| PCI-Express | • 1 x16 PCI-e Slot |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 3 x 3.5" Hot-swap SATA drive bays |
|
SATA Backplane
| |
|---|---|
• 1U SATA Backplane |
|
|
Peripheral Drives
| |
|---|---|
| DVD-ROM | • Slim 8x DVD, 24x CD, DVD-ROM drive |
|
System Cooling
| |
|---|---|
| Fans | • 6x heavy-duty counter-rotating fans with optimal fan speed control |
| Shroud |
• 2x Air Shroud |
|
Power Supply
| |
|---|---|
| 1000W AC-DC high-efficiency power supply w/ PFC + PDB | |
| AC Voltage | • 100 - 240V, 50 - 60Hz, 15 - 7Amp |
| +5V standby
|
• 4 Amp |
| +12V | • 83 Amp |
| With Power Distributor |
• +5V: 20 Amp • +3.3V: 20 Amp • -12V: 0.6 Amp |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT |
| FAN | • Total up to 9-fan status tachometer monitoring • Up to nine 3-pin fan headers • Status monitor for speed control • Support 3-pin fans with fan-speed control |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip Support • PC Temperature Sensing Logic |
| LED | • CPU / System Overheat LED • Suspend-State Indicator LED • +5V Standby Alert LED |
| Other Features | • Chassis Intrusion Detection • Chassis Intrusion Header |
|
Operating Environment / Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
