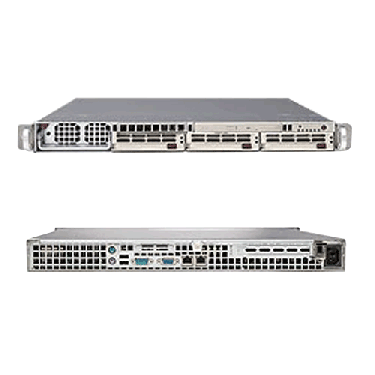

Supermicro 1U Rackmount A+ Server AS-1041M-82

More Views

Supermicro 1U Rackmount A+ Server AS-1041M-82

Description

Details

Supermicro 1U Rackmount A+ Server AS-1041M-82

Product SKU
AS-1041M-82	• A+ Server 1041M-82 (Beige)
AS-1041M-82B	• A+ Server 1041M-82B (Black)

Motherboard
	• Super H8QM8-2+

Processor/Chipset
CPU	• Quad 1207-pin Socket F • Supports up to four Six-Core AMD Opteron™ 8000 Series (Socket F) processors • HT3.0 Link support
Chipset	• nVidia MCP55 Pro • AMD 8132

System Memory
Memory Capacity	• Sixteen 240-pin DIMM sockets • Supports up to 128 GB DDR2 800/667/533/400 MHz memory • Single or Dual (recommended) channel memory support • For Quad CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type	• DDR2 800/667/533/400MHz Reg. ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 256MB, 512MB, 1GB, 2GB, 4GB, 8GB
Memory Voltage	• 1.8V only
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
SCSI	• Adaptec AIC-7902W Controller • Dual-Channel Ultra320 SCSI with Host RAID (Host RAID only supports 4 drives) • Host RAID 0, 1, JBOD
IPMI	• Intelligent Platform Management Interface 2.0, Low Profile (Opt: AOC-SIMSO R3.00) • NOTE: KVM-over-LAN not supported - there is no DVO signal to the IPMI slot • RMM (Remote Management Module) • (Card not included) • For Dedicated LAN, cable CBL-0177L must be used (cable sold separately)
Network Controllers	• Intel® 82546GB Dual Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Super I/O	• Winbond 83627HF
VGA	• ATI ES1000 Graphics Controller

Input/Output
IDE	• Single EIDE channel support up to two UDMA IDE devices • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA 100/133
Floppy	• 1 Floppy port; 1.44 MB support
LAN	• 2 RJ45 LAN ports
USB	• FUCI • Up to 4 USB Ports 2.0 Compliant • 2 Rear Ports • 2 Internal Headers
Keyboard/Mouse	• PS/2 keyboard and mouse ports
Serial Ports	• 1 Fast UART 16550 serial port • 1 Header
VGA	• 1 VGA port

System BIOS
BIOS Type	• 8Mb Flash EEPROM with AMI® BIOS • SST 49LF080A BIOS Chip
BIOS Features	• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 2.0 • USB Keyboard Support • SMBIOS 2.3

Chassis
Form Factor	• 1U Rackmount
Model	• SC818S+-1000

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 27.75" (705mm)
Gross Weight	• 43 lbs (19.5 kg)
Available Colors	• Beige, Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED

Expansion Slots
PCI-Express	• 1 x16 PCI-e Slot
HyperTransport	• 1 HyperTransport (HTX) Connectors

Drive Bays
Hot-swap	• 3 x 3.5" Hot-swap U320 SCSI drive bays

SCSI Backplane
	• 1U SCSI Backplane w/ SAF-TE

Peripheral Drives
DVD-ROM	• Slim 8x DVD, 24x CD, DVD-ROM drive

System Cooling
Fans	• 6x heavy-duty counter-rotating fans with optimal fan speed control
Shroud	• 2x Air Shroud

Power Supply
	1000W AC-DC high-efficiency power supply w/ PFC + PDB
AC Voltage	• 100 - 240V, 50 - 60Hz, 15 - 7Amp
+5V standby	• 4 Amp
+12V	• 83 Amp
With Power Distributor	• +5V: 20 Amp • +3.3V: 20 Amp • -12V: 0.6 Amp

PC Health Monitoring
CPU	• Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT • CPU 4-Phase-switching voltage reulator
FAN	• Total up to 9-fan status tachometer monitoring • Up to nine 3-pin fan headers • Status monitor for speed control • Support 3-pin fans with fan-speed control
Temperature	• Monitoring for CPU and chassis environment • CPU Thermal Trip Support • PC Temperature Sensing Logic
LED	• CPU / System Overheat LED • Suspend-State Indicator LED • +5V Standby Alert LED
Other Features	• Chassis Intrusion Detection • Chassis Intrusion Header

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
