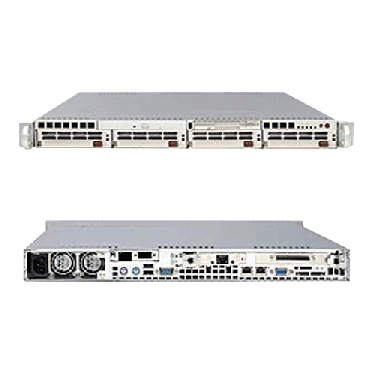

Supermicro 1U Rackmount A+ Server AS-1020C-3

Product SKU
AS-1020C-3 • A+ Server 1020C-3 (Beige)
AS-1020C-3B • A+ Server 1020C-3B (Black)
Motherboard
  • H8DCR-3
Processor/Chipset
CPU • Dual 940-pin ZIF Sockets
• Supports up to two Dual-Core AMD Opteron™ 200 Series processor(s)
• Single CPU configurations are not recommended
• VRM x3
Chipset • nVidia nForce Pro 2200 (CK804)
• AMD 8132
System Memory
Memory Capacity • Eight 184-pin DIMM sockets
• Supports up to 16 GB DDR 400 MHz memory or
• Supports up to 32 GB DDR 333 MHz memory or
• Supports up to 32 GB DDR 266 MHz memory
• Single or Dual (recommended) channel memory support
• For Single CPU: Memory must be populated in CPU1 DIMMs only
• For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type

• DDR 400/333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes

• 256 MB, 512 MB, 1GB, 2GB, 4GB**
Memory Voltage

• 2.5 V only
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
SAS • Adaptec AIC-9410W SAS Controller
• 8 SAS Ports (4 Internal, 4 External)
• RAID 0, 1, 10
• Zero-Channel RAID (optional)
IPMI • 1U support: Intelligent Platform Management Interface v.2.0+ (Optional: 1UIPMI-B)
• Remote Management Module
• (Card not included)
Network Controllers • Two Broadcom BCM5721 Gigabit LAN / Ethernet Controllers
• Supports 10Base-T, 100Base-TX, and 1000Base-T, RJ45 output
Graphics

• ATI Rage XL 8MB
Super I/O

• Winbond 83627HG
Clock Generator

• ICS8634
Input/Output
Serial Attached
SCSI		 • Integrated Adaptec AIC-9410W(SAS) Controller
• Two Serial Attached SCSI (SAS) ports (1 internal, 1 external)
• Each SAS port supports up to 4 SAS / SATA drives for a total of up to 8 SAS or SATA hard drives
IDE • Dual EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5
• Supports PIO Mode 4
• Supports ATA 100/133
Floppy • 1 Floppy port, 1.44 MB
LAN • 2 RJ45 LAN ports
USB • FUCI
• Up to 4 USB Ports 2.0 Compliant, 1.1 Compatible
• 2 Rear Ports
• 2 Internal Headers
VGA • 1 VGA port
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Ports










 • 1 Fast UART 16550 serial port
• 1 header
Chassis
Form Factor • 1U Rackmount
Model • SC813TQ+-500
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 25.6" (650mm)
Gross Weight • 38 lbs (17.2kg)
Available Colors • Beige, Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
Drive Bays
Hot-swap

• 4 x 3.5" hot-swap SCSI Drive Bays with SAF-TE
Peripheral Drives
Floppy

• 3.5" 1.44MB Slim Floppy Drive
CD-ROM

• Slim 24x CD-ROM drive
Expansion Slots
Full-height /
Half-length Slot

• 64-bit 133MHz PCI-X (riser card pre-preinstalled) OR
• PCI-E x8 (requires optional riser card CSE-RR1U-EL)
Low-profile /
Half-length Slot

• 64-bit 100MHz PCI-X (riser card pre-installed) OR
• PCI-E x8 (requires optional riser card CSE-RR1U-ELP)
• Note: Dual Processors are required for correct PCI-X expansion slot operation
SAS Backplane


• 4 x 3.5" SAS HDD Backplane
System Cooling
Fans

• 4x 10,200 RPM counter rotating fans
Power Supply
  Cold-swappable 500W AC power supply module with PFC [ 20-pin, (4-pin, 8-pin = 12V) ]
AC Voltage • 100 - 240V, 60-50Hz, 10 Amp Max
DC Output
 • 5V + 3.3V ≤ 160W
+5V • 30.0 Amp
+5V standby • 2.0 Amp
+12V • 39.0 Amp
-12V • 1.0 Amp
+3.3V • 21.0 Amp
System BIOS
BIOS Type

• 8Mb Flash EEPROM with AMI® BIOS
• 49LF080A BIOS Chip
BIOS Features • Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.3
• ACPI 2.0 / 1.0
• BIOS Rescue Hot Keys
• USB Keyboard Support
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +1.5V, +2.5V, +3.3V, +5V, ±12V, HyperTransport Link voltage 1.2V, memory voltage 2.5V, 3.3V Standby, VBAT

FAN • Total up to 5-fan status tachometer monitoring
• Up to five 3-pin fan headers
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• I2C Temperature Sensing Logic
LED • CPU / System Overheat LED
• Suspend-State Indicator LED
• +5V Standby Alert LED
Other Features • Chassis Intrusion Header
• Chassis Intrusion Detection
