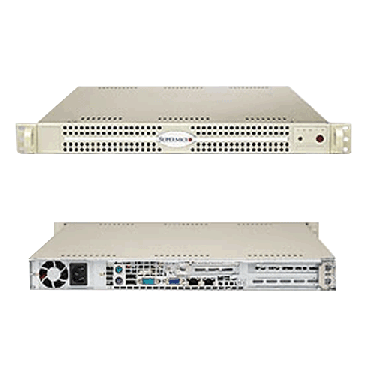

Supermicro 1U Rackmount A+ Server AS-1011M-NiB
|
Product SKU
| |
|---|---|
| AS-1011M-Ni | • AS-1011M-Ni A+ Server 1011M-Ni (Beige) |
| AS-1011M-NiB | • A+ Server 1011M-NiB (Black) |
|
Motherboard
| |
|---|---|
| • Super H8SMU | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Single 940-pin AM2 Socket • Supports one Quad-Core AMD Opteron™ 1000 Series (Socket AM2/AM3) processor • 4 phase VRM |
| System Bus | • 1000MHz HyperTransport |
| Chipset | • nVidia MCP55 Pro |
|
System Memory
| |
|---|---|
| Memory Capacity | • Four 240-pin DIMM sockets • Supports up to 8 GB DDR2 800/667/533 MHz memory • Single or Dual (recommended) channel memory |
| Memory Type | • DDR2 800/667/533MHz un-buffered ECC / non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 512 MB, 1GB, 2GB |
| Memory Voltage | • 1.8V only |
|
On-Board Devices
| SATA | • nVidia MCP55 Pro SATA2 3.0Gbps Controller • 4 SATA Ports • nVidia RAID 2.0 • SATA RAID 0, 1, 0+1, 5, JBOD Support |
IDE | • Single EIDE channel • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA/100/133 |
IPMI | • Intelligent Platform Management Interface v.2.0: (Optional: AOC-SIMSO(+) R 3.00) • RMM (Remote Management Module) • (Card not included) |
Network Controllers | • nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
|---|---|
| VGA | • ATI ES1000 graphics controller |
| Super I/O |
• Winbond 83627HG |
|
Expansion Slots
| Left Slots | • 2 PCI-express x8 Slot (Full-height / Full-length) | Right Slot | • 1 PCI-express x8 Slot (Low-Profile) |
|---|
|
Input/Output
| SATA | • Up to three SATA2 devices | IDE | • Single ATA 133/100 EIDE channels support up to two UDMA IDE devices • Supports UDMA Mode 5 • Supports ATA133/100 |
Floppy | • 1 Floppy port 1.44 MB | LAN | • 2 RJ45 LAN ports |
|---|---|
| USB | • 2 USB Rear Ports • 2 USB Internal Headers • 4 Total USB 2.0 Compliant, 1.1 Compatible |
| VGA | • 1 VGA port |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | • 1 Fast UART 16550 serial ports • 1 Header |
|
Chassis
| |
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC812L-280U |
|
Dimension and Weight
| |
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 16.8" (426mm) |
| Depth | • 25.6" (650mm) |
| Gross Weight | • 34 lbs (15.4kg) |
| Available Colors | • Beige, Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
| Ports | • 2x USB & DB9 COM port tray |
|
Drive Bays
| |
|---|---|
| Internal | • rive Bays Internal 3x 3.5" Internal drive bays |
|
System Cooling
| |
|---|---|
| Fans | • 2x Blower Fans |
|
Power Supply
| |
|---|---|
| 280W AC power supply w/ PFC | |
| AC Voltage | • 100 - 240V, 50 - 60Hz, 5Amp |
| +5V |
• 18 Amp |
| +5V standby | • 2 Amp |
| +12V | • 23Amp @ 100-140V, 27Amp @ 180-240V |
| -12V | • 1.0 Amp |
| +3.3V | • 15 Amp |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +3.3V, +5V, +12V, +5V Standby, VBAT |
| FAN | • Total up to five 3-pin fan headers • Support 3-pin fans (with speed control) |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip support • I2C temperature sensing logic |
| LED | • CPU / Overheat LED • Suspend-state indicator LED • +5V Standby Alert LED • UID/Remote UID LED |
| Other Features | • Chassis Intrusion Header • Chassis Intrusion Detection |
|
System BIOS
| |
|---|---|
| BIOS Type |
• 4Mb Flash EEPROM with AMI® BIOS |
| BIOS Features |
• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • USB Keyboard support |
