Supermicro SYS-1028R-WMR

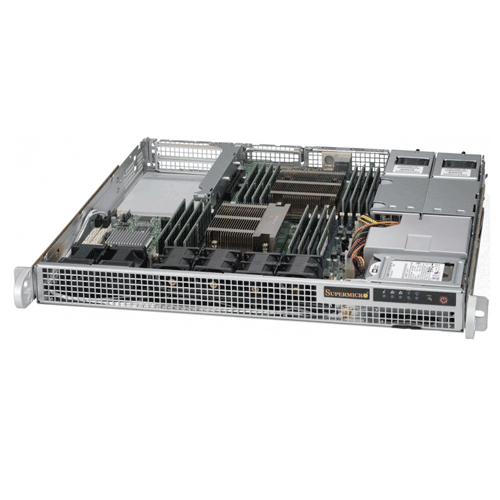

Supermicro 1028R-WMR 1U Rackmount Server Barebone with 400W Redundant Power SuppliesGold Level; BBP option 2x 2.5" Fixed drive bays w/ bracket using Supermicro
Super X10DRW-E Server Motherboard and CSE-514-R400W 1U Rackmount Server Chassis.
Super X10DRW-E Server Motherboard and CSE-514-R400W 1U Rackmount Server Chassis.
Product SKU |
|
|---|---|
| SYS-1028R-WMR | • SuperServer 1028R-WMR |
Motherboard |
|
|---|---|
| Super X10DRW-E | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011) |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Note | • † BIOS version 2.0 or above is required |
| • Please contact WillJaya Technical support for additional information | |
System Memory |
|
|---|---|
| Memory Capacity |
• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes |
• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C612 chipset |
| SATA | • SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| IPMI |
• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Connectivity | • Intel® X540 Dual Port 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8211E PHY (dedicated IPMI) |
| Video | • ASPEED AST2400 BMC |
Input/Output |
|
|---|---|
| Serial SATA | • 10x SATA3 (6Gbps) ports |
| LAN |
• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB |
• 2x USB 3.0 ports (front via header) • 4x USB 2.0 ports (rear) |
| Video | • 1x VGA port |
| Serial Header Port | • 1x Header |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-514-R400W |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 16.9" (429mm) |
| Gross Weight | • 16.5 lbs (7.48 kg) |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED |
• Power Status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
Expansion Slots |
|
|---|---|
| PCI-Express | • 2x PCI-E 3.0 x16 full-height, Half-length slots |
Drive Bays |
|
|---|---|
| Internal | • 2x 2.5" Fixed drive bays with bracket |
Backplane |
|
|---|---|
| • SAS/SATA HDD Backplane (SAS support requires optional SAS controller) | |
System Cooling |
|
|---|---|
| Fans | • 4x 40x56mm PWM fan; 2x fans for AOC cooling |
Power Supply |
|
|---|---|
| 400W Redundant Power Supplies w/Power Distributor, PMBus 1.2, I2C, and PFC | |
| AC Input | • 100-240V, 50-60Hz, 6-3A |
| DC Ouput |
• +5V standby: 3A • +12V: 33A |
| DC Output With Power Distributor |
• +5V: 25A • +3.3V: 25A • -12V: 0.6A |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features |
• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1 |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
