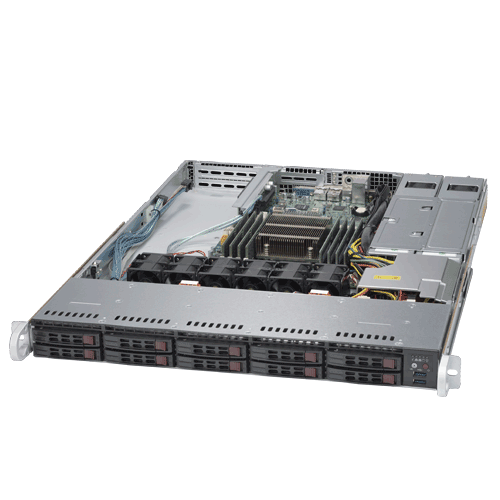

SuperServer SYS-1018R-WC0R
Supermicro 1018R-WC0R 1U Rackmount Barebone with 750W Redundant Power Supplies Platinum Level Certified, Intel® C612 Chipset support 8x 2.5" Hot-swap SAS3/SATA3 +
2x 2.5" Hot-swap SAS3/SATA3 HDD bays using Supermicro Super X10SRW-F Server Motherboard and CSE-116AC2-R706WB 1U Rackmount Chassis.
2x 2.5" Hot-swap SAS3/SATA3 HDD bays using Supermicro Super X10SRW-F Server Motherboard and CSE-116AC2-R706WB 1U Rackmount Chassis.
Product SKU |
|
---|---|
SYS-1018R-WC0R | • SuperServer 1018R-WC0R (Black) |
Motherboard |
|
---|---|
Super X10SRW-F |
Processor |
|
---|---|
CPU | • Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3 family (up to 145W TDP **) • Single Socket R3 (LGA 2011) |
Core/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
Note | • † BIOS version 2.0 or above is required |
** Motherboard supports this maximum TDP. Please verify your system can thermally support |
System Memory |
|
---|---|
Memory Capacity |
• 8x 288-pin DDR4 DIMM slots • Up to 1TB ECC 3DS LRDIMM • Up to 512GB ECC LRDIMM • Up to 256GB ECC RDIMM |
Memory Type | • 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs |
DIMM Sizes |
• 3DS LRDIMM: 128GB • LRDIMM: 64GB, 32GB • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB |
Memory Voltage | • 1.2 V |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
---|---|
Chipset | • Intel® C612 chipset |
SATA | • SATA3 (6Gbps) via C612 controller • RAID 0, 1, 10 support; 5 supported under Windows |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC with 10/100/1000Mbps |
Network Connectivity | • Intel® i350 Dual Port Gigabit Ethernet |
Graphics | • ASPEED AST2400 BMC |
Input/Output |
|
---|---|
SATA | • 10x SATA3 (6Gbps) ports • SATA DOM Power Connector |
LAN |
• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
USB | • 2x USB 3.0 ports (rear) • 2x USB 2.0 ports (rear) • 2x USB 3.0 ports (front) |
VGA | • 1x VGA port |
Serial Port /Header | • 2x COM ports (1 rear, 1 header) |
DOM | • 2x SuperDOM (Disk on Module) ports |
PC Health Monitoring |
|
---|---|
Voltage | • Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V |
Fan | • 6x 4-pin fan headers • 6x fans w/ tachometer status monitoring • Status monitor for speed control • Status monitor for on/off control • Support 3-pin fans (w/o speed control) • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors |
Temperature | • Monitoring for CPU & chassis environment • CPU thermal trip support • CPU thermal trip support FC temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI |
LED | • CPU / System Overheat LED • +5V Standby alert LED |
Other Features | • Chassis intrusion detection • Chassis intrusion header |
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • CSE-116AC-R706WBP |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 23.5" (597mm) |
Gross Weight | • 25 lbs (11.3 kg) |
Available Color | • Black |
Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset button |
LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED / Fan fail LED / UID LED |
Expansion Slots |
|
---|---|
PCI-Express |
• 2x PCI-E 3.0 x16 slots
(support GPU/Xeon Phi cards) |
Drive Bays |
|
---|---|
Hot Swap | • 8x 2.5" Hot-swap SAS3/SATA3 HDD bays + 2x 2.5" Hot-swap SATA3 (total of 10) |
Backplane |
|
---|---|
Fans | • SAS3/SATA3 HDD Backplane (SAS support requires optional SAS controller + cables) |
System Cooling |
|
---|---|
Fans |
• 4x 40x28mm 4-pin PWM Cooling Fans |
AC/DC 240V Input Redundant Power Supply |
|
---|---|
700W/750W Redundant Power Supplies with PMBus | |
Total Output Power | • 700W/750W |
Dimension (W x H x L) |
• 54.5 x 40 x 320 mm |
Input | • 100 - 140Vac / 8 - 6A / 50-60Hz • 200 - 240Vac / 4.5 - 3.8A / 50-60Hz • 200 - 240Vdc / 4.5 - 3.8A (CCC Only) |
+12V | • Max: 58A / Min: 0.5A (100 - 140Vac) • Max: 62A / Min: 0.5A (200 - 240Vac) • Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only) |
+5V sb | • Max: 3A / Min: 0A |
Output Type | • Gold Finger Connector Mating with Molex 45984-4343 |
Certification | • Platinum Certified |
System Bios |
|
---|---|
Bios Type | • 64Mb SPI Flash EEPROM with AMI BIOS |
Bios Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.7.1 • UEFI 2.3.1 • RTC (Real Time Clock) Wakeup |
Management |
|
---|---|
Software |
• IPMI (Intelligent Platform Management Interface) v2.0 with KVM support • SuperDoctor® III • Watch Dog • NMI |
Power Configuration |
• ACPI / ACPM Power Management • Main Switch Override Mechanism • Power-on mode for AC power recovery • Internal/External modem ring-on |
Operating Environment/Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
