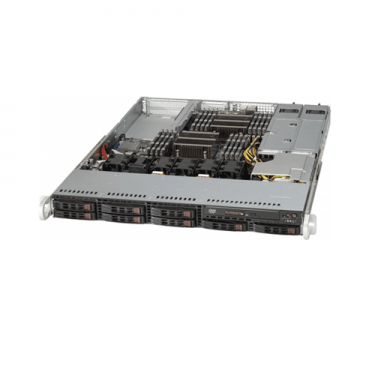

  • Supermicro 1U Rackmount SYS-1027R-N3RF - Angle
  • Supermicro 1U Rackmount SYS-1027R-N3RF - Front
  • Supermicro 1U Rackmount SYS-1027R-N3RF - Rear

Supermicro 1U Rackmount SuperServer SYS-1027R-N3RF

Call for price.
SKU:SYS-1027R-N3RF

Quick Overview:

Key Features:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
• Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM slots
• Add on card support: 2x PCI-E 3.0 x16 full-height, Half-length slots
• Intel® i350 Dual port Gigabit Ethernet Controller; 2x LAN ports
• 10x Hot-swap 2.5" SAS/SATA HDD bays connected to onboard storage controller
• 700W Redundant Power Supplies Gold Level Certified

Details

SuperServer SYS-1027R-N3RF

Supermciro 1027R-N3RF 1U Rackmount Server Barebone with 700W Redundant Power Supplies Gold Level Certified, Intel® C606 Chipset support 10x Hot-swap 2.5" SAS/SATA HDD
bays using Supermciro Super X9DRW-3F Server Motherboard and CSE-116TQ-R700WB 1U Rackmount Chassis.

Product SKU
• SuperServer 1027R-N3RF (Black)
Motherboard
        Super X9DRW-3F
Processor/Cache
CPU • Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 130W TDP)
Cache • Up to 30MB
System Bus • QPI up to 8 GT/s
Note • † BIOS version 3.0 or above is required
  • Please contact WillJaya Technical support for additional information
System Memory
Memory Capacity • 16x 240-pin DDR3 DIMM slots
• Up to 1TB DDR3 ECC LRDIMM
• Up to 512GB DDR3 ECC Registered memory (RDIMM)
• Up to 128GB DDR3 ECC and non-ECC UDIMM
Memory Type • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage • 1.5 V, 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® C602J chipset
SATA • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1
SAS • SAS from C606
• RAID 0, 1, 10 support
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Renesas SH7757 BMC
Network Connectivity

• Intel® i350 Dual Port Gigabit Ethernet Controller
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8211E PHY (dedicated IPMI)

VGA • G200 (Renesas SH7757 BMC)
Input/Output
Serial SATA

• 2x SATA 3.0 ports (6Gbps)

SAS

• 8x SAS ports

LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 6x USB 2.0 ports total (4x rear + 2x via header)
Video • 1x VGA port
Serial Port/Header • 1x Fast UART 16550 port / 1 Header















Chassis
Form Factor • 1U Rackmount
Model CSE-116TQ-R700WB
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 23.5" (597mm)
Gross Weight • 46 lbs (20.9kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
• UID button
LED • Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED
Expansion Slots
PCI-Express

• 2 PCI-E 3.0 x16 full-height, Half-length slots
• UIO AOC Compatibility Matrix

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot Swap • 10 Hot-swap 2.5" SAS / SATA HDD trays (connected to onboard storage controller)10x Hot-swap 2.5" SAS/SATA HDD trays
Backplane
  • SAS/SATA HDD Backplane (SAS support requires optional SAS controller)
System Cooling
Fans • 5x 4cm Counter-rotating PWM Fans
Power Supply
  700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
AC Voltage • 700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp
• 750W: 180 - 240V, 60-50 Hz, 5-3.8 Amp
DC Output +5V standby • 3 Amp
DC Output +12V • 700W: 58 Amp @ 100-140V
• 750W: 62 Amp @ 180-240V
With Power Distributor • +5V: 25A
• +3.3V: 12A
• 12V: 0.6A
Certification • Gold Certified
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 5°C to 35°C (41°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
