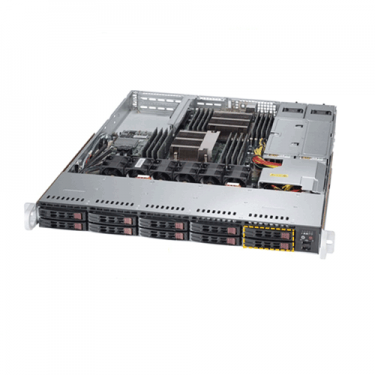

  • Supermicro SYS-1028R-WC1RT Angle
  • Supermicro SYS-1028R-WC1RT Top
  • Supermicro SYS-1028R-WC1RT Front
  • Supermicro SYS-1028R-WC1RT Rear

Supermicro SYS-1028R-WC1RT 1U SuperServer Rackmount NVME

Call for price.
SKU:SYS-1028R-WC1RT

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
• 2x PCI-E 3.0 x16 (FHHL) slots
• 10x Hot-swap 2.5" SAS/SATA HDD bays
• SAS3 (12Gbps) via LSI 3108
• Intel® X540 Dual port 10GBase-T
• I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 6x USB 3.0 (4 rear, 2 front)
• Optional 2x 2.5" NVMe drives support
• 700W Redundant Power Supplies Platinum Level High-efficiency


Details

Supermicro SYS-1028R-WC1RT

Supermicro 1028R-WC1RT 1U Rackmount Server Barebone with 700W Redundant Power Supplies Platinum Level High-efficiency and 10x Hot-swap 2.5" SAS/SATA HDD bays
using Supermicro Super X10DRW-iT Server Motherboard and CSE-116AC2-R706WB1U 1U Rackmount Server Chassis.
Product SKU
• SuperServer 1028R-WC1RT (Black)
Motherboard
        Super X10DRW-iT
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
Note • † BIOS version 2.0 or above is required
  • Please contact WillJaya Technical support for additional information
System Memory
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SATA • SATA3 via Intel® C610; RAID 0, 1
SAS • SAS3 (12Gbps) via LSI 3108
• RAID 0, 1, 5, 6, 10, 50, 60 support
• 2GB DDR3 Cache
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Connectivity • Intel® X540 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8211E PHY (dedicated IPMI)
Video • ASPEED AST2400 BMC
Input/Output
Serial SATA • 2x SATA3 (6Gbps) ports
SAS • 8x SAS3 (12Gbps) ports
LAN • 2x RJ45 10GBase-T ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 6x USB 3.0 ports (4 rear + 2 via header)
VGA • 1x VGA port
Serial Header Port • 1x Fast UART 16550 header
DOM • 2x SuperDOM (Disk on Module) ports
PC Health Monitoring
Voltage • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V,
  +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
• 5+1 Phase-switching voltage regulator
Fan • 6x 4-pin fan headers (up to 6 fans)
• 6x fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x Fan Connectors
• Thermal Monitor 2 (TM2) support
• PECI
LED • CPU / System Overheat LED
• Suspend static indicator LED
• UID/Remote UID
Other Features • Chassis intrusion detection
• Chassis intrusion header
• SDDC Support
• RoHS
Chassis
Form Factor • 1U Rackmount
Model • CSE-116AC2-R706WB
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 23.5" (597mm)
Gross Weight • 39 lbs (17.7 kg)
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power Status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED
Expansion Slots
PCI-Express • 2x PCI-E 3.0 x16 full-height, Half-length slots
Drive Bays
Hot-swap • 10 Hot-swap 2.5" SAS/SATA HDD trays (Default 8 SAS3, 2 SATA3)
Backplane
  • SAS/SATA HDD Backplane Optional 2x 2.5" NVMe drives
System Cooling
Fans • 5x 4cm heavy-duty counter-rotating fans w/ air shroud and optimal fan speed control
AC/DC 240V Power Supply
  700W/750W Redundant Power Supplies with PMBus
Total Output Power • 700W/750W
Dimention
(W x H x L)
• 54.5 x 40 x 320 mm
Input • 100 - 140Vac / 8 - 6A / 50-60Hz
• 200 - 240Vac / 4.5 - 3.8A / 50-60Hz
• 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V • Max: 58A / Min: 0.5A (100 - 140Vac)
• Max: 62A / Min: 0.5A (200 - 240Vac)
• Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only)
+5V sb • Max: 3A / Min: 0A
Output Type • Gold Finger Connector Mating with Molex 45984-4343
Certification • Platinum Certified
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
