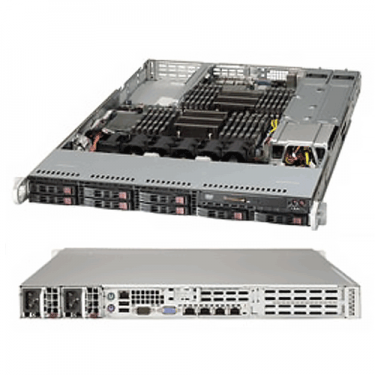

SuperServer SYS-1027R-WRF4+
Supermicro 1027R-WRF4+ 1U Server Barebone with 750/700W Redundant power supplies Gold Level Certified, Intel® C606 Chipset support 8x Hot-swap 2.5" SAS/SATA HDD bays using
Supermciro Super X9DRW-3LN4F+ Server Motherboard and CSE-119TQ-R700WB 1U Rackmount Chassis.
Supermciro Super X9DRW-3LN4F+ Server Motherboard and CSE-119TQ-R700WB 1U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-1027R-WRF4+ | • SuperServer 1027R-WRF4+ (Black) |
Motherboard |
|
|---|---|
| Super X9DRW-3LN4F+ | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 130W TDP) |
| Cache | • Up to 30MB |
| System Bus | • QPI up to 8 GT/s |
| Note | • † BIOS version 3.0 or above is required |
| • Please contact WillJaya Technical support for additional information | |
System Memory |
|
|---|---|
| Memory Capacity |
• 24x 240-pin DDR3 DIMM slots • Up to 1.5TB DDR3 ECC LRDIMM • Up to 768GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC and non-ECC UDIMM |
| Memory Type | • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C606 chipset |
| SATA | • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
| Network Connectivity | • Intel® i350 Dual Port Gigabit Ethernet Controller |
| VGA | • Matrox G200eW |
Input/Output |
|
|---|---|
| SAS/SATA |
• Customizable storage |
| LAN |
• 4x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 7x USB 2.0 ports total (2x rear + 4x via header + 1x Type A) |
| Video | • 1x VGA port |
| Serial Port/Header | • 1x Fast UART 16550 port / 1 Header |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-119TQ-R700WB |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 26.6" (676mm) |
| Gross Weight | • 46 lbs (20.9kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button • UID button |
| LED | • Power status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 1 PCI-E 3.0 (x16) Full-height (10" length) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
Drive Bays |
|
|---|---|
| Hot Swap | • 8 Hot-swap 2.5" SAS / SATA HDD trays (ready for PCI-E storage controller card) |
Peripheral Drives |
|
|---|---|
| DVD-ROM | • Slim DVD-ROM drive (optional) |
Backplane |
|
|---|---|
| • SAS/SATA HDD Backplane (SAS support requires optional SAS controller) | |
System Cooling |
|
|---|---|
| Fans | • 6x 4cm Counter-rotating PWM fans |
Power Supply |
|
|---|---|
| 700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C | |
| AC Input | • 700W: 100-140 V, 50-60 Hz, 8.5-6 Amp • 750W: 180-240 V, 60-50 Hz, 5-3.8 Amp |
| DC Output +5V standby | • 3 Amp |
| Certification | • GoldCertified |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features |
• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
5°C to 35°C (41°F to 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
