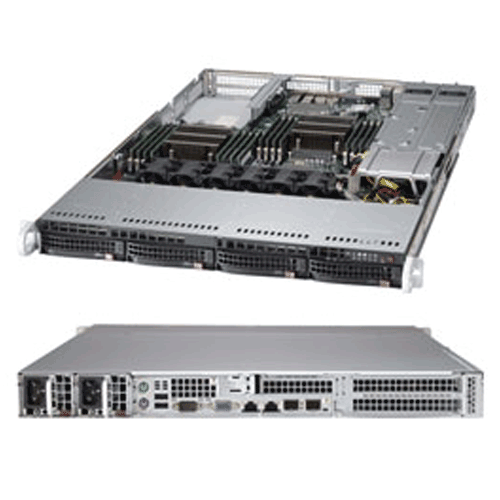

  • Supermicro 1U Rackmount 6017R-72RFTP - Angle

Supermicro 1U Rackmount SuperServer SYS-6017R-72RFTP

Call for price.
SKU:SYS-6017R-72RFTP

Quick Overview:

Key Features:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
• Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM slots
• 1 PCI-E 3.0 (x8) Low-profile, 2 PCI-E 3.0 (x16) Full-height slots (see below for details)
• Intel® i350 Dual port GbE controller Broadcom BCM57810S 10Gb SFP+
• 4x 3.5" Hot-swap SAS/SATA HDD Bays Connected to onboard LSI 2208 hardware RAID Controller
• 750/700W Redundant power supplies Gold Level Certified

Details

SuperServer SYS-6017R-72RFTP

Supermicro 6017R-72RFTP 1U Rackmount Server Barebone with 750/700W Redundant Power Supplies Gold Level Certified, Intel® C602 Chipset, 4x 3.5" Hot-swap SATA HDD Bays
using Supermicro Super X9DRW-7TPF Server Mohterboard and CSE-819TQ-R700WB 1U Rackmount Server Chassis.

Product SKU
• SuperServer 6017R-72RFTP (Black)
Motherboard
        Super X9DRW-7TPF
Processor/Cache
CPU • Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 135W TDP)
Cache • Up to 30MB
System Bus • QPI up to 8 GT/s
Note • † BIOS version 3.0 or above is required
  • Please contact WillJaya Technical support for additional information
System Memory
Memory Capacity • 16x 240-pin DDR3 DIMM slots
• Up to 1TB DDR3 ECC LRDIMM
• Up to 512GB DDR3 ECC Registered memory (RDIMM)
• Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage • 1.5 V, 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® C602 Chipset
SATA • Via Cable for SATA controller
• SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1
SAS • SAS2 from LSI 2208 (1GB cache)
• HW RAID 0, 1, 5, 6, 10, 50, 60 support
• Supports up to 16 drives
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC
Network Connectivity

• Intel® i350 Gigabit Ethernet Controller
• Broadcom BCM57810S 10Gb SFP+
• 1x Realtek RTL8201N PHY (dedicated IPMI)

(Both CPUs need to be installed for LAN ports 1 and 2 to be enabled)

Graphics • Matrox G200eW
Input/Output
SAS/SATA

• 4x HW RAID SAS2 (6Gbps) ports

LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 2x SFP+ 10Gb LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 5x USB 2.0 ports total (2 rear + 2 via header + 1 Type A)
Video • 1x VGA port
Serial Port/Header • 1x Fast UART 16550 port / 1 Header















Chassis
Form Factor • 1U Rackmount
Model CSE-819TQ-R700WB
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 27.75" (705mm)
Gross Weight • 43 lbs (19.45kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
• UID
LED • Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Information LED
Expansion Slots
PCI-Express

• 1x PCI-E 3.0 x16 Full-height (10" length)
• 1x PCI-E 3.0 x16 Full-height (6.6" length)
• 1x PCI-E 3.0 x8 Low-profile (6.6" length)

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot Swap • 4 3.5" Hot-swap SAS / SATA HDD trays
Peripheral Drives
DVD-ROM • Slim DVD-ROM drive (optional)
Backplane
  • SAS/SATA HDD Backplane
System Cooling
Fans • 6x 4cm Counter-rotating PWM fans
Power Suplly
  700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
AC Input • 700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp
• 750W: 180 - 240V, 60-50 Hz, 5-3.8 Amp
DC Output +5V standby • 3 Amp
DC Output +12V • 700W: 58 Amp @ 100-140V
• 750W: 62 Amp @ 180-240V
With Power Distributor • +5V: 25 Amp
• +3.3V: 25 Amp
• -12V: 0.6 Am
Certification • Gold Certified
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 5°C to 35°C (41°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
