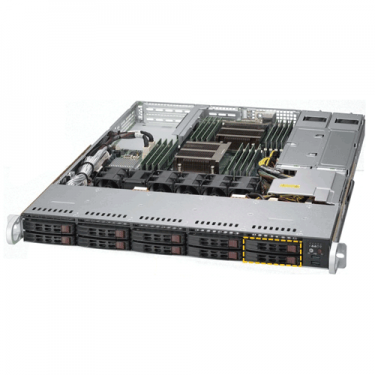

  • Supermicro SYS-1028R-WTNRT Angle
  • Supermicro SYS-1028R-WTNRT Top
  • Supermicro SYS-1028R-WTNRT Front
  • Supermicro SYS-1028R-WTNRT Rear

Supermicro SYS-1028R-WTNRT 1U SuperServer Rackmount NVME

Call for price.
SKU:SYS-1028R-WTNRT

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/
   v3 family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
• 2 PCI-E 3.0 x16 (FHHL) slots
• 10 Hot-swap 2.5" SAS/SATA HDD bays (default 8 SATA3, 2 NVMe or SATA2)
• Intel® X540 Dual port 10GBase-T LAN
• I/O ports: 2 SuperDOM, 1 VGA, 1 COM, 2 USB 3.0 (front), 4 USB 2.0 (rear)
• 2 SuperDOM (Disk on Module) ports
• 700W Redundant Power Supplies Platinum Level High-efficiency


Details

Supermicro SYS-1028R-WTNRT

Supermicro 1028R-WTNRT 1U Rackmount Server Barebone with 700W Redundant Power Supplies Platinum Level High-efficiency, 10x Hot-swap 2.5" SAS/SATA HDD bays; 2x NVMe
support, using Supermicro Super X10DRW-NT Server Motherboard and CSE-116AC2-R706WB 1U Rackmount Chassis.
Product SKU
• SuperServer 1028R-WTNRT (Black)
Motherboard
        Super X10DRW-NT
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
Note • † BIOS version 2.0 or above is required
  • Please contact WillJaya Technical support for additional information
System Memory
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Connectivity • Intel® X540 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8211E PHY (dedicated IPMI)
Video • ASPEED AST2400 BMC
Input/Output
Serial SATA • 8 SATA3 (6 Gbps) ports and 2 NVMe/SATA3 hybrid ports
LAN • 2x RJ45 10GBase-T ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 2x USB 3.0 ports (front via header)
• 4x USB 2.0 ports (rear)
Video • 1x VGA port
Serial Header Port • 1x Fast UART 16550 header
DOM • 2x SuperDOM (Disk on Module) ports
PC Health Monitoring
Voltage • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages
• 5+1 Phase-switching voltage regulator
Fan • 6x 4-pin fan headers (up to 6 fans)
• 6x fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x Fan Connectors
• Thermal Monitor 2 (TM2) support
• PECI
LED • CPU / System Overheat LED
• Suspend static indicator LED
• UID/Remote UID
Other Features • Chassis intrusion detection
• Chassis intrusion header
• SDDC Support
• RoHS




Chassis
Form Factor • 1U Rackmount
Model • CSE-116AC2-R706WB
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 23.5" (597mm)
Gross Weight • 46 lbs (20.9kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• UID button
LED • Power Status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED
Expansion Slots
PCI-Express • 2x PCI-E 3.0 x16 full-height, Half-length slots
Drive Bays
Hot Swap • 8x SATA3 (6Gbps) ports and 2x NVMe/STAT3 hybrid ports (connected to onboard storage controller)
Backplane
  • SAS/SATA HDD Backplane
System Cooling
Fans • 5x 4cm heavy-duty counter-rotating fans w/ air shroud and optimal fan speed control
AC/DC 240V Input Redundant Power Supply
  700W/750W Redundant Power Supplies with PMBus
Total Output Power • 700W/750W
Dimension
(W x H x L)
• 54.5 x 40 x 320 mm
Input • 100 - 140Vac / 8 - 6A / 50-60Hz
• 200 - 240Vac / 4.5 - 3.8A / 50-60Hz
• 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V • Max: 58A / Min: 0.5A (100 - 140Vac)
• Max: 62A / Min: 0.5A (200 - 240Vac)
• Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only)
+5V sb • Max: 3A / Min: 0A
Output Type • Gold Finger Connector Mating with Molex 45984-4343
Certificate • Platinum Certified
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1
Management
Software • SuperDoctor® 5
• Watch Dog
• NMI
• IPMI 2.0
• Intel Node Manager
Power Configuration • ACPI / APM Power Management
• Power-on mode for AC power recovery
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
