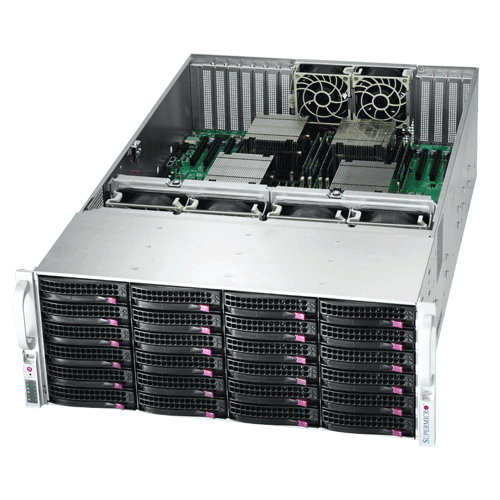

  • Supermicro 4U Rackmountable Tower SuperServer SYS-8047R-7JRFT - Angle

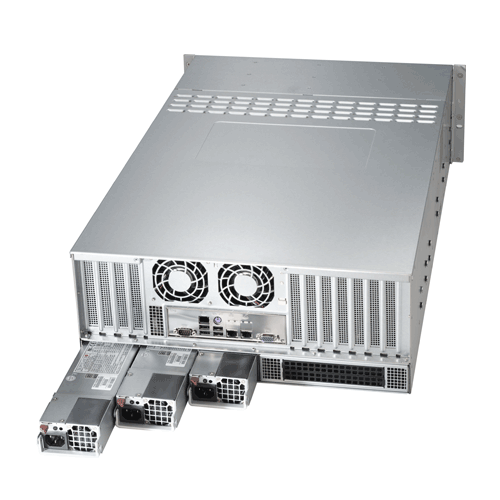

  • Supermicro 4U Rackmountable Tower SuperServer SYS-8047R-7JRFT - Rear Angle

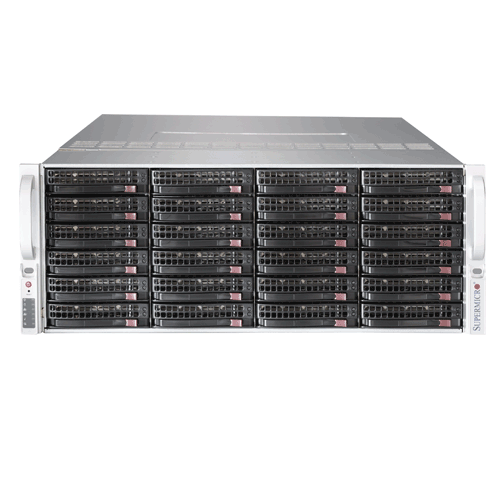

  • Supermicro 4U Rackmountable Tower SuperServer SYS-8047R-7JRFT - Front

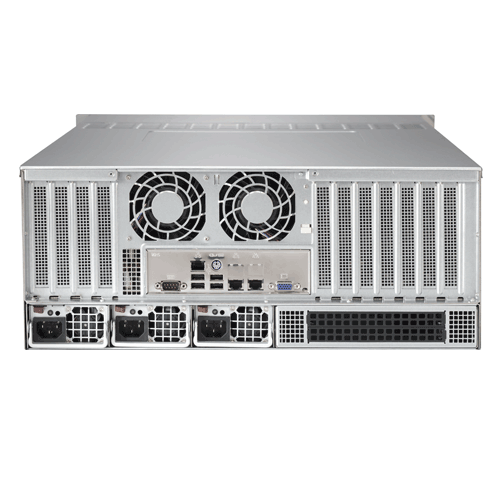

  • Supermicro 4U Rackmountable Tower SuperServer SYS-8047R-7JRFT - Rear

Supermicro 4U Rackmountable Tower SuperServer SYS-8047R-7JRFT

Call for price.

Quick Overview:

Key Features:
• Quad socket R (LGA 2011) supports Intel® Xeon® processor
• Up to 768GB* DDR3; 24x DIMM slots
• Intel® X540 Dual port 10GBase-T
• 24x 3.5" Hot-swap SAS2/SATA3 HDD Bays
• 4x 9cm + 2x 8cm Heavy-duty Fans
• 1620W Redundant Power Supplies Platinum Level (94%+)


Supermicro SuperServer SYS-8047R-7JRFT

Product SKU
• SuperServer 8047R-7JRFT (Black)
  • Super X9QR7-TF-JBOD

• Intel® Xeon® processor E5-4600 v2 (12-Core)** or E5-4600 (8-Core) family
• Quad Socket R (LGA 2011)

** BIOS rev. 3.0 or above is needed to support Ivy Bridge-EP 4S

Cache • Up to 30MB
System Bus • QPI up to 8 GT/s
System Memory
Memory Capacity • 24x 240-pin DDR3 DIMM slots
• Supports up to 768GB DDR3 ECC Registered memory (RDIMM)
Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset • Intel® C602 chipset
AHCI SATA • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1
SCU SATA • SATA 2.0 3Gbps with RAID 0, 1, 10

• SAS2 via Dual Broadcom 2308
• (IT mode)


• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• Intel® X540 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBase-T , 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)


• Matrox G200 (Nuvoton WPCM450 BMC)

Super I/O

• Nuvoton W83527HG

SAS • SAS2 ports (6Gbps) (IT mode)
LAN • 2x RJ45 10GBase-T ports
• 1x dedicated LAN port for IPMI
USB • 10x USB 2.0 ports total (4x rear + 4x via header + 2x Type A)
Serial Port/Header • 2x Fast UART 16550 ports: 1 rear and 1 header
System BIOS
BIOS Type • 16MB SPI Flash EEPROM with AMI® BIOS
BIOE Features • Plug and Play (PnP)
• PCI 2.2
• ACPI up to 3.0
• USB Keyboard support
Form Factor • Tower / 4U Rackmountable
• Rackmount Kit (MCP-290-00057-0N)
Model CSE-848E16-R1K62B
Dimension and Weight
Height • 7.0" (178mm)
Width • 17.2" (437mm)
Depth • 29" (737mm)
Gross Weight • 100 lbs (45.4 kg)
Available Colors • Black
Drive Bays

• 24x 3.5" Hard drive bays

Expansion Slots

• 8x PCI-E 3.0 x16 slots (1x PCI-E 3.0 x8 in x16 slot)


• SAS/SATA HDD Backplane

System Cooling

• 4x 92mm RPM Hot-Swappable Cooling Fans
• 2x 80mm RPM Hot-Swappable Rear Exhaust Fan


• 1x Air Shroud (MCP-310-84805-0B)

Power Supply
  1620W high-efficiency redundant power supply w/ PMBus
AC Input • 1000W Output @ 100-120V, 12-10A, 50-60Hz
• 1200W Output @ 120-140V, 12-10A, 50-60Hz
• 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
• 1000W: +12V/84A; +5Vsb/4A
• 1200W: +12V/100A; +5Vsb/4A
• 1620W: +12V/150A; +5Vsb/4A
Certification • Platinum Certified
PC Health Monitoring

• Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages
• 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V


• 4-pin fan headers with tachometer status monitoring
• Low noise fan speed control mode


• Monitoring for CPU and system environment
• Thermal Control for 8x fan connectors

Other Features

• Chassis intrusion detection

Operating Environment

• RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
