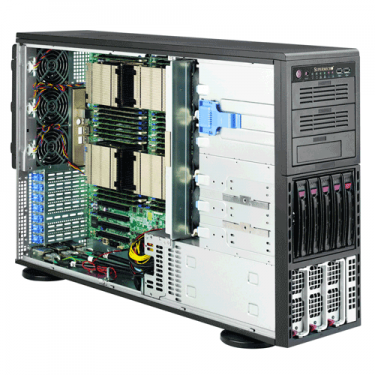

Supermicro 4U Rackmountable Tower SuperServer SYS-8047R-7RFT+

Call for price.

SKU:SYS-8047R-7RFT+

Quick Overview:

Key Features:
• Quad socket R (LGA 2011) supports Intel® Xeon® processor
• Up to 1TB* DDR3 1866MHz ECC; 32x DUMM slots
• 4x PCI-E 3.0 x16 (2 in x8) Slots
• Intel® X540 Dual port 10GBase-T
• 5x 3.5" Hot-swap SAS2/SATA3 HDD Bays and 3x 5.25" peripheral bays
• 3x 9cm + 3x 8cm Heavy-duty Fans
• 1400W Redundant Digital PS Platinum Level (95%)

Description

Details

Supermicro SuperServer SYS-8047R-7RFT+

Product SKU
SYS-8047R-7RFT+	• SuperServer 8047R-7RFT+ (Black)

Motherboard
	• Super X9QR7-TF+

Processor/Cache
CPU	• Intel® Xeon® processor E5-4600 v2 (12-Core) or E5-4600 (8-Core) family (up to 130W CPU at 35°C) • Quad Socket R (LGA 2011) BIOS rev. 3.0 or above is needed to support Ivy Bridge-EP 4S
Cache	• Up to 30MB
System Bus	• QPI up to 8 GT/s

Processor/Cache

CPU

• Intel® Xeon® processor E5-4600 v2 (12-Core)** or E5-4600 (8-Core) family (up to 130W CPU at 35°C)
• Quad Socket R (LGA 2011)

** BIOS rev. 3.0 or above is needed to support Ivy Bridge-EP 4S

Cache

• Up to 30MB

System Bus

• QPI up to 8 GT/s

System Memory
Memory Capacity	• 32x 240-pin DDR3 DIMM slots • Supports up to 1TB DDR3 ECC Registered memory (RDIMM) in 32 DIMM slots
Memory Type	• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602 chipset
SATA	• SATA 2.0 3Gbps with RAID 0, 1, 5 • SATA 3.0 6Gbps with RAID 0, 1
SAS	• SAS2 (6Gbps) via Broadcom 2208 controller • HW RAID 0, 1, 5, 6, 10 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC
Network Controllers	• Intel® X540 Dual Port 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201F PHY (dedicated IPMI)
Graphics	• Matrox G200eW (Nuvoton WPCM450 BMC)
Super I/O	• Nuvoton W83527HG

Input/Output
SATA	• 2x SATA 3.0 ports (6Gbps) • 4x SATA 2.0 ports (3Gbps)
SAS	• 8x SAS2 ports (6Gbps)
LAN	• 2x RJ45 10GBase-T ports • 1x dedicated LAN port for IPMI
USB	• 4x USB 2.0 rear ports
Video	• 1x VGA Port
Super I/O	• 1 Fast UART 16550 serial port

System BIOS
BIOS Type	• 16MB SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support

Chassis
Form Factor	• Tower / 4U Rackmountable • Optional Rackmount Kit (MCP-290-00059-0B)
Model	• CSE-748TQ-R1K43B

Dimension and Weight
Height	• 18.2" (462mm)
Width	• 7.0" (178mm)
Depth	• 28.4" (721mm)
Gross Weight	• 86.0 lbs (39.0 kg)
Available Colors	• Black

Drive Bays
Hot-swap	• 5x 3.5" Hard drive bays • Additional 5x 3.5" Hard Drives available with optional M35 Mobile Rack
Peripheral Bay(s)	• 3x 5.25" Peripheral Drive Bay

Expansion Slots
PCI-Express	• 4x PCI-E 3.0 x16 (2 in x8) Slots

Backplane
	• SAS/SATA HDD Backplane

System Cooling
Fans	• 3x 92mm RPM Hot-Swappable Cooling Fans • 3x 80mm RPM Hot-Swappable Rear Exhaust Fan
Shrouds	• 1x Air Shroud

Power Supply
	Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage	• 100-240 V, 50-60 Hz, 15 Amp max
+12V	• 100 Amp/115 Vac • 117 Amp/230 Vac
With Power Distributor	• +5V: 30 Amp • +3.3V: 25 Amp • -12V: 0.6 Amp
Certification	• Platinum Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN	• 4-pin fan headers with tachometer status monitoring • Low noise fan speed control mode
Temperature	• Monitoring for CPU and system environment • Thermal Control for 10x fan connectors
Other Features	• Chassis intrusion detection

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
