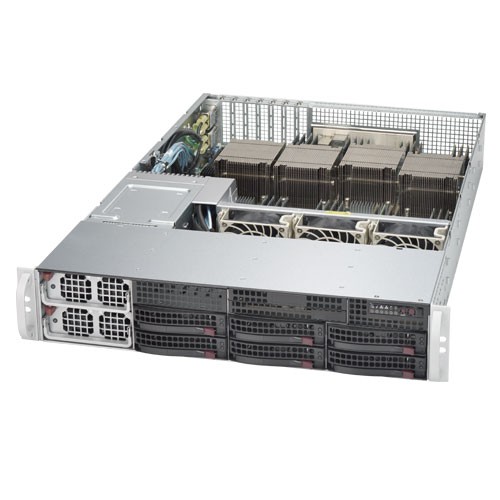

  • Supermicro 2U Rackmount Server SYS-8028B-C0R4FT - Angle

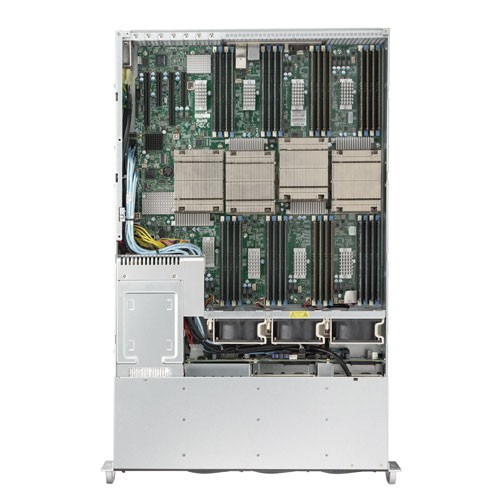

  • Supermicro 2U Rackmount Server SYS-8028B-C0R4FT - Top

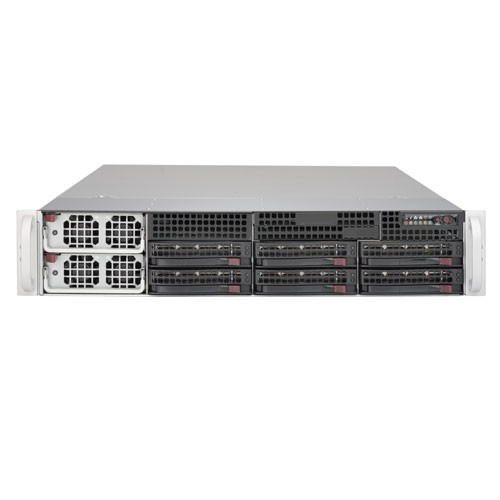

  • Supermicro 2U Rackmount Server SYS-8028B-C0R4FT - Front

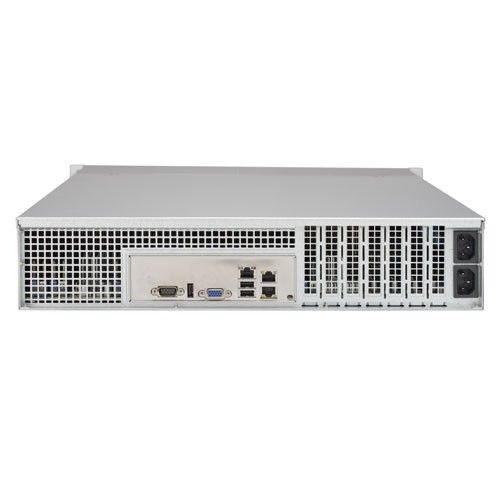

  • Supermicro 2U Rackmount Server SYS-8028B-C0R4FT - Rear

Supermicro 2U Rackmount Server SYS-8028B-C0R4FT

Call for price.
SKU:SYS-8028B-C0R4FT

Quick Overview:

Key Features:
• Quad socket R1 (LGA 2011) supports Intel® Xeon® processor
   E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
• Up to 4TB DDR4 (128GB 3DS LRDIMM), up to 1866MHz;
   32x DIMM slots
• 2x PCI-E 3.0 x16 Low-profile slot;
   2x PCI-E 3.0 x8 Low-profile slot
• Intel® X540 Dual port 10GBase-T
• I/O ports: 2x GbE LAN, 1x Dedicated LAN for IPMI Remote
   Management, 1x VGA, 1x COM port, 3x USB 2.0
• 6x 3.5" Hot-swap SAS2 Drive Bays; SAS2 via onboard LSI 3008
• 3x 8cm Heavy Duty fans w/ speed control
• 1400W Redundant Digital PS Platinum Level (95%)

Details

SuperServer SYS-8028B-C0R4FT 2U Rackmount

Supermicro SYS-8028B-C0R4FT 2U Rackmount Barebone with 1400W Redundant Digital PS Platinum Level (95%) power supply, Intel® C602J chipset, 6x 3.5" Hot-swap Drive Bays
using Supermicro Super X10QBL-4CT motherboard and CSE-828TQ-R1K43LPB Chassis.

Product SKU
• SuperServer 8028B-C0R4FT (Black)
Motherboard
        Super X10QBL-4CT
Processor/Cache
CPU

• Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP)
• Quad Socket R1 (LGA 2011)

Cache • Up to 60 MB
System Bus • QPI up to 9.6 GT/s
System Memory
Memory Capacity • 32x 288-pin DDR4 DIMM slots
• Supports up to 4TB DDR4 ECC 3DS LRDIMM in 32 DIMM slots
Memory Type • 1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs
DIMM Sizes • 128GB, 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C602J chipset
SAS

• SAS2 (6Gbps) Backplane via LSI® 3008 controller

SATA

• SATA2 (3Gbps) with RAID 0, 1, 5, 10
• SATA3 (6Gbps) with RAID 0, 1

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Intel® X540 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201F PHY (dedicated IPMI)

Graphics

• ASPEED AST2400 BMC

Input/Output
SAS • 8x SAS2 ports (6Gbps)
LAN • 2x RJ45 10GBase-T ports
• 1x dedicated LAN port for IPMI
USB • 3x USB 2.0 rear ports
Video

• 1x VGA port

Serial Port / Header • 1 Fast UART 16550 serial port
System Bios
Bios Type • 128MB SPI Flash EEPROM with AMI® BIOS
Bios Features

• Plug and Play (PnP)
• PCI 2.2
• ACPI up to 3.0
• USB Keyboard support




























Chassis
Form Factor • 2U Rackmount
Model CSE-828TQ-R1K43LPB
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 27.9" (709mm)
Weight • 66.5 lbs (30.2 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
Expansionn Slot
PCI-Express • 2x PCI-E 3.0 x16 Low-profile slot
• 2x PCI-E 3.0 x8 Low-profile slot
Drive Bays
Hot-swap • 6x 3.5" Hot-swap Drive Bays
Backplane
  • SAS/SATA HDD Backplane
Peripheral Drives
DVD-ROM  • 1x Slim DVD-ROM (Optional)
System Cooling
Fans • 3x 8cm Hot-swap Cooling fans
Shrouds • 1x Air Shroud
Power Supply
  Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage • 100-240 V, 50-60 Hz, 15 Amp max
+12V • 100 Amp/115 Vac
• 117 Amp/230 Vac
With Power
Distributor
• +5V: 30 Amp
• +3.3V: 25 Amp
• -12V: 0.6 Amp
Cerification • Platinum Certified
PC Health Monitoring
CPU • Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
• 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN • 4-pin fan headers with tachometer status monitoring
• Low noise fan speed control mode
Temperature • Monitoring for CPU and system environment
• Thermal Control for 10x fan connectors
Other Features

• Chassis intrusion detection

Operating Environment / Compliance
RoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°to 35°C (50°to 95°F)
• Non-operating Temperature: -40°to 70°C (-40°to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
