Details
|
Product SKU
| |
|---|---|

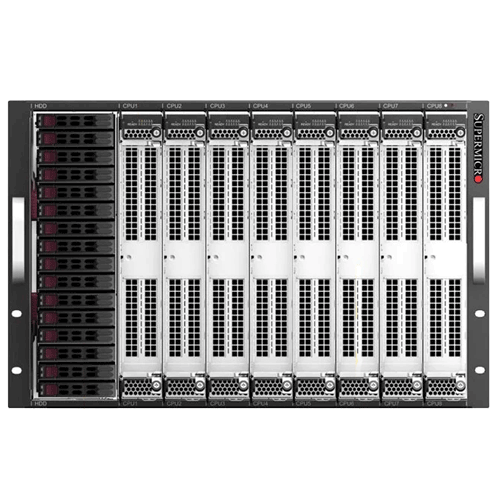

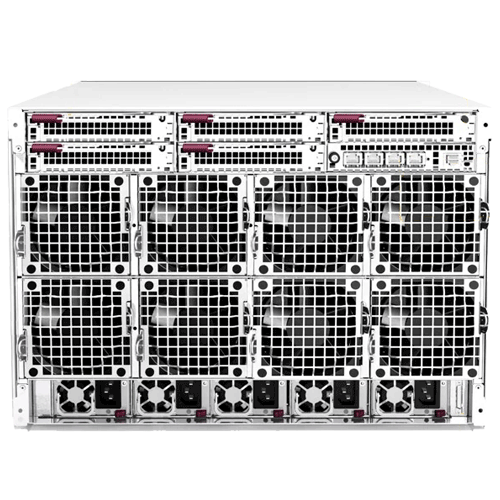

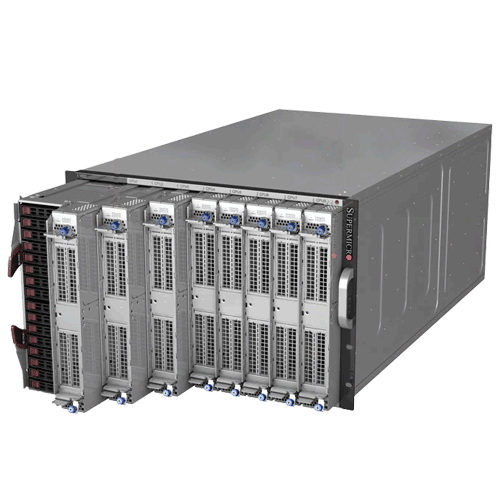

| SYS-7089P-TR4T | • SuperServer 7089P-TR4T (Black) |
|
Motherboard
| |
|---|---|
| • Super X11OPi-CPU | |
| Processor/Cache
|
|
|---|---|
| CPU | • Octa Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, 8S-3 UPI up to 10.4GT/s • Support CPU TDP 70-205W |
| Cores | • Up to 28 Cores with Intel® HT Technology |
| System Memory
|
|
|---|---|
| Memory Capacity | • 96x 288-pin DDR4 DIMM slots • Supports up to 12TB DDR4 ECC 3DS LRDIMM in 96 DIMM slots |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 SDRAM |
| DIMM Sizes | • 128GB, 64GB, 32GB, 16GB, 8GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
| On-Board Devices
|
Chipset | • Intel® C621 chipset |
|---|---|
| Storage | • Intel® C621 chipset Storage Intel C621 including 2 SATA3 (SATA DOM), 2 M.2 (SATA3/PCIe), 8 HDD (SATA3), 1 TPM header |
| Network Controllers
(via AOM) |
• 4-port 10GBase-T Ethernet SIOM (Intel® X550 controller) |
| IPMI (via AOM) | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | • ASPEED AST2500 BMC |
| Input/Output
|
Storage | • 2 SATA DOM (SATA3) ports • 2 M.2 (SATA3/PCI3) ports • 8 HDD (SATA3) ports |
LAN | • 4 10GBase-T ports via SIOM • 1 dedicated LAN port for IPMI |
|---|---|
| USB | • 2 USB 2.0 ports via KVM port |
| Serial Port / Header | • 1 Fast UART 16550 ports: 1 front via KVM port |
|
System BIOS
| |
|---|---|
| BIOS Type | • 16MB SPI Flash EEPROM with AMI® BIOS |
| BIOS Features |
• Plug and Play (PnP) |
|
PC Health Monitoring
| CPU | • Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator |
FAN | • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
Temperature | • Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
|---|
|
Chassis
| |
|---|---|
| Form Factor | • 7U Rackmountable • Rackmount Kit: Comes with the system |
| Model | • CSE-718SAC-R4800 |
|
Dimension and Weight
| |
|---|---|
| Width | • 17.63" (448mm) |
| Height | • 12.2" (310mm) |
| Depth | • 28.87" (733mm) |
| Gross Weight | • 208 lbs (94.35 kg) |
| Available Colors | • Black |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 16 Hot-swap 2.5" SAS3 drive bays (w/ RAID cards) |
|
Expansion Slots
| |
|---|---|
| PCI-Express | • 23 PCI-E 3.0 slots total including:
8 FH x16 PCI-E cards or 8 GPUs or 16 U.2 NVMe + 8 FHFL x16 PCI-E cards or 16 U.2 NVMe + 2 LP x8 (in x16 slot) PCI-E internal cards (storage module) + 5 FHHL x16 PCI-E cards (rear) |
|
Backplane
| |
|---|---|
• 2x 6-port 12G backplane supports 6x 2.5" SAS3/SATA3 HDD/SSD |
|
|
System Cooling
| |
|---|---|
| Fans | • 8x 9cm 10.5K-10.8K RPM Hot-Swap Counter-rotating Rear Fans |
|
Power Supply
| |
|---|---|
| 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | • 1600W/1000W |
| Dimension
(W x H x L) |
• 73.5 x 40 x 203 mm |
| Input | • 100-127Vac / 13 - 9A / 50-60Hz • 200-240Vac / 10 - 8A / 50-60Hz |
| +12V | • Max: 83.3A / Min: 0A (100-127Vac) • Max: 133A / Min: 0A (200-240Vac) |
| 12Vsb | • Max: 2.1A / Min: 0A |
| Output Type | • 25 Pairs Gold Finger Connector |
| Certification | • Titanium Level |
|
Operating Environment
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
