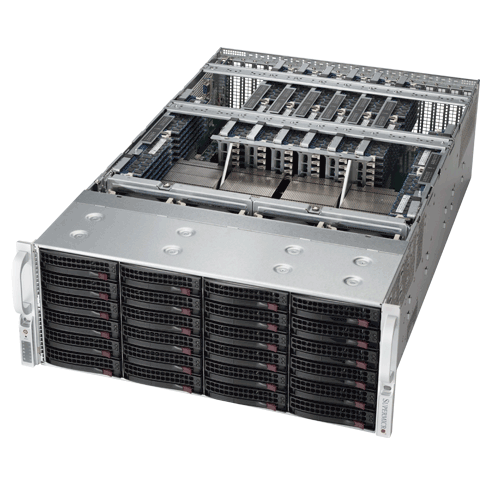

  • Supermicro 4U Rackmount SuperServer SYS-4048B-TRFT - Angle

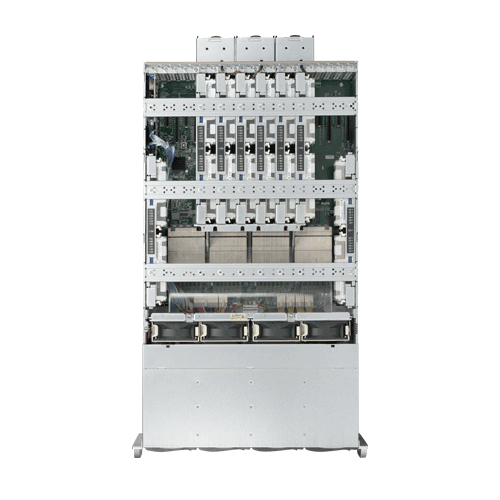

  • Supermicro 4U Rackmount SuperServer SYS-4048B-TRFT - Top

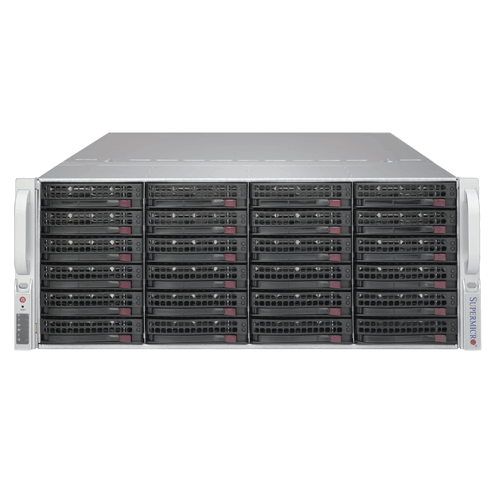

  • Supermicro 4U Rackmount SuperServer SYS-4048B-TRFT - Front

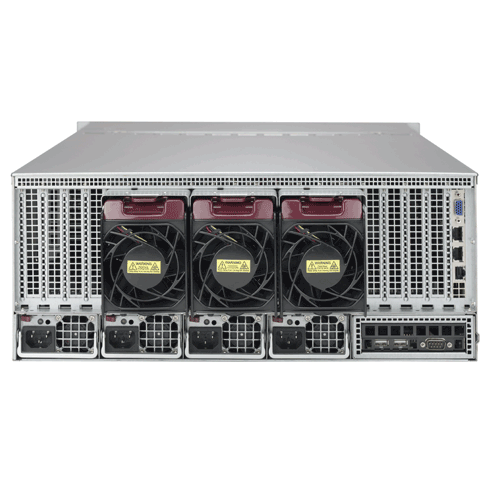

  • Supermicro 4U Rackmount SuperServer SYS-4048B-TRFT - Rear

Supermicro 4U Rackmount SuperServer SYS-4048B-TRFT

Call for price.
SKU:SYS-4048B-TRFT

Quick Overview:

Key Features:
• Quad socket R1 (LGA 2011) supports Intel® Xeon® processor
• Up to 6TB DDR3 1600MHz ECC RDIMMs and LRDIMMs; 96x DIMM slots
• Up to 11x PCI-E 3.0 slots (4 x16, 7 x8)
• I/O ports via Add-on Card: 2x 10Gb LAN, 1x Dedicated LAN for IPMI Remote Management, 1x VGA
• 24x 2.5" Hot-swap SAS3/SATA3 HDD or SSD (selected RAID/HBA cards); 48x 2.5" Hot-swap HDD/SSD optional
• 4x 9cm + 3x 8cm Heavy-duty Fans
• 1620W Redundant (N+1) Power Supplies, Platinum Level (94%)


Details

Supermicro SuperServer 4048B-TRFT (Complete System Only)

Product SKU
SYS-4048B-TRFT • SuperServer 4048B-TRFT (Black)
Motherboard
  • Super X10QBi
Processor/Cache
CPU • Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP)
• Quad Socket R1 (LGA 2011)
Cache • Up to 60 MB
System Bus • QPI up to 9.6 GT/s
Notes • E7-8800/4800 v2 (using MB-X10QBI-MEM1 Rev 1.01 or above)
• E7-8800/4800 v4/v3 (using MB-X10QBI-MEM1 Rev 2.0 or above)
System Memory
Memory Capacity • 96x 240-pin DDR3 DIMM slots
• Supports up to 6TB DDR3 ECC Registered memory (RDIMM) and LRDIMM in 96 DIMM slots
Memory Type

• 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes

• 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage

• 1.5 V, 1.35 V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® C602J chipset
AHCI SATA • SATA3 (6Gbps) with RAID 0, 1
• SATA2 (3Gbps) with RAID 0, 1, 5, 10
Network Controllers
(via AOM)		 • Intel® X540 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBase-T , 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)
IPMI (via AOM)

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED 2400
Graphics

• ASPEED 2400
Input/Output
AHCI SATA • 2x SATA3 (6Gbps) ports
• 4x SATA2 (3Gbps) ports
LAN • 2x RJ45 10GBase-T ports on AOM
• 1x dedicated LAN port for IPMI on AOM
USB • 2x USB 2.0 ports
Serial Port/Header • 2x Fast UART 16550 ports: 1 rear and 1 header
DOM • 1 DOM (Disk on Module) power connector
System BIOS
BIOS Type • 16MB SPI Flash EEPROM with AMI® BIOS
BIOS Features





 • Plug and Play (PnP)
• PCI 2.2
• ACPI up to 3.0
• USB Keyboard support
Chassis
Form Factor • 4U Rackmountable
• Rackmount Kit: Comes with the system
Model • CSE-418XA-R3240B
Dimension and Weight
Height • 7.0" (178mm)
Width • 17.2" (437mm)
Depth • 31.3" (795mm)
Gross Weight • 115 lbs (52.16 kg)
Available Colors • Black
Drive Bays
Hot-swap

• 24x 2.5" Hard drive bays (default)*
• 48x 2.5" Hard drive bays (optional)

* BPN-SAS3-216A direct attached backplane, system supports up to 24 HDDs by using selected RAID/HBA card and default HDD connection is onboard C602J chipset 2 SATA3 + 4 SATA2
Expansion Slots
PCI-Express

• 11x PCI-E 3.0 slots w/ 48 memory slots
   (4x PCI-E 3.0 x16 and 7x PCI-E 3.0 x8)
• 8x PCI-E 3.0 slots w/ 96 memory slots
   (4x PCI-E 3.0 x16 and 4x PCI-E 3.0 x8)
Backplane


• SAS/SATA HDD Backplane
System Cooling
Fans

• 4x 92mm RPM Hot-Swappable Cooling Fans
• 3x 80mm RPM Hot-Swappable Rear Exhaust Fan
• 2x 80mm Rear Exhaust Fans (optional)
Shrouds

• 1x Air Shroud (MCP-310-41804-0B)
Power Supply
  1620W high-efficiency redundant power supply w/ PMBus
AC Input • 1000W Output @ 100-120V, 12-10A, 50-60Hz
• 1200W Output @ 120-140V, 12-10A, 50-60Hz
• 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
 • 1000W: +12V/84A; +5Vsb/4A
• 1200W: +12V/100A; +5Vsb/4A
• 1620W: +12V/150A; +5Vsb/4A
Certification • Platinum Certified
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages
• 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN

• 4-pin fan headers with tachometer status monitoring
• Low noise fan speed control mode

Temperature

• Monitoring for CPU and system environment
• Thermal Control for 9x fan connectors

Other Features

• Chassis intrusion detection
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
