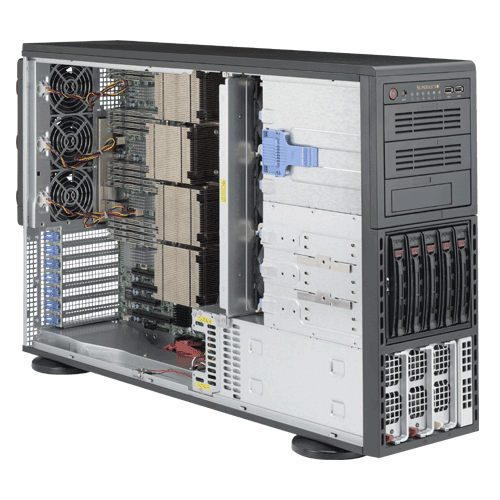

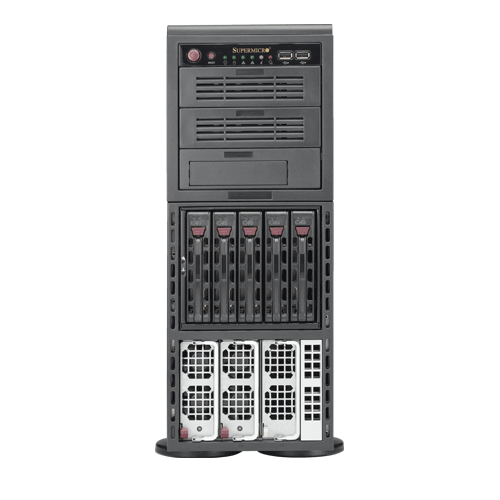

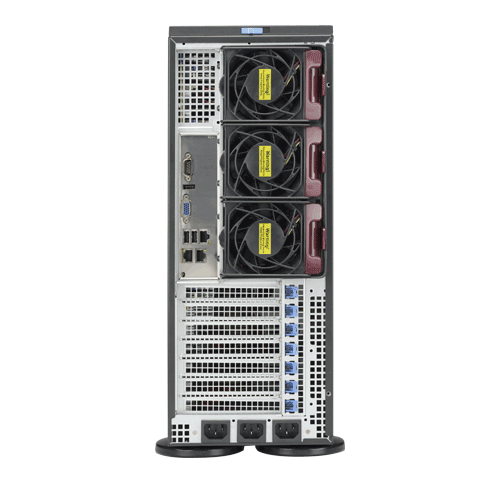

Supermicro 4U Rackmount Tower SuperServer SYS-8048B-C0R3FT

Call for price.

SKU:SYS-8048B-C0R3FT

Quick Overview:

Key Features:
• Quad socket R1 (LGA 2011) supports Intel® Xeon® processor
• Up to 2TB DDR3 (64GB LRDIMM); 32x DIMM slots
• 2x PCI-E 3.0 x16 FH slot; 2x PCI-E 3.0 x8 FH slot
• Intel® X540 Dual port 10GBase-T
• 5x 3.5" Hot-swap SAS2 Drive Bays; SAS2 via onboard Broadcom 3008
• 3x 9cm + 3x 8cm Heavy Duty fans with speed control
• 1400W Redundant Digital PS Platinum Level (95%)

Description

Details

Supermicro SuperServer SYS-8048B-C0R3FT

Product SKU
SYS-8048B-C0R3FT	• SuperServer 8048B-C0R3FT (Black)

Motherboard
	• Super X10QBL-CT

Processor/Cache
CPU	• Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP) • Quad Socket R1 (LGA 2011)
Cache	• Up to 60 MB
System Bus	• QPI up to 9.6 GT/s
Note	• E7-48XX/88XX v4/v3 family or above requires Rev. 2.0x or above motherboard w/ Jordan Creek II

System Memory
Memory Capacity	• 32x 240-pin DDR3 DIMM slots • Supports up to 2TB DDR3, ECC Registered memory (RDIMM/LRDIMM) in 32 DIMM slots
Memory Type	• 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602J chipset
SAS	• SAS2 (6Gbps) via Broadcom 3008 controller
SATA	• SATA2 (3Gbps) with RAID 0, 1, 5, 10 • SATA3 (6Gbps) with RAID 0, 1
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Intel® X540 Dual Port 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201F PHY (dedicated IPMI)
Graphics	• ASPEED 2400

Input/Output
SAS	• 8x SAS2 ports (6Gbps)
LAN	• 2x RJ45 10GBase-T ports • 1x dedicated LAN port for IPMI on AOM
USB	• 3x USB 2.0 rear ports
Serial Port/Header	• 2x Fast UART 16550 ports: 1 rear and 1 header
DOM	• 2x DOM (Disk on Module) power connectors

System BIOS
BIOS Type	• 16MB SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support

Chassis
Form Factor	• 4U Rackmount/Tower
Model	• CSE-748TQ-R1K43B

Dimension and Weight
Height	• 18.2" (462mm)
Width	• 7.0" (178mm)
Depth	• 28.4" (721mm)
Gross Weight	• Net Weight: 65.5 lbs (29.7 kg) • Gross Weight: 86.0 lbs (39.0 kg)
Available Colors	• Black

Drive Bays
Hot-swap	• 5x 3.5" Hot-swap Drive Bays

Expansion Slots
PCI-Express	• 2x PCI-E 3.0 x16 Full-heigh slot • 2x PCI-E 3.0 x8 Full-heigh slot

Backplane
	• SAS/SATA HDD Backplane

System Cooling
Fans	• 3x 9cm Heavy Duty fans with speed controlCooling Fans • 3x 8cm Heavy Duty fans with speed controlCooling Fans
Shrouds	• 1x Air Shroud (MCP-310-74806-0B)

Power Supply
	Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage	• 100-240 V, 50-60 Hz, 15 Amp max
+12V	• 100 Amp/115 Vac • 117 Amp/230 Vac
With Power Distributor	• +5V: 30 Amp • +3.3V: 25 Amp • -12V: 0.6 Amp
Certification	• Platinum Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN	• 4-pin fan headers with tachometer status monitoring • Low noise fan speed control mode
Temperature	• Monitoring for CPU and system environment • Thermal Control for 9x fan connectors
Other Features	• Chassis intrusion detection

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
