Details
|
Product SKU
| |
|---|---|

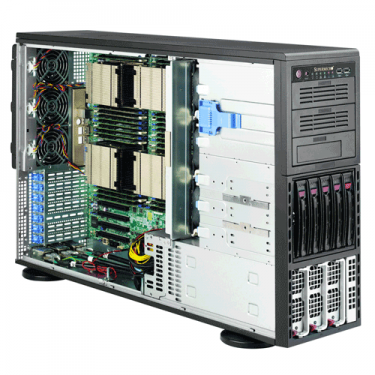

| SYS-8047R-TRF+ | • SuperServer 8047R-TRF+ (Black) |
|
Motherboard
| |
|---|---|
| • Super X9QRi-F+ | |
| Processor/Cache
|
|
|---|---|
| CPU | • Intel® Xeon® processor E5-4600 v2
(12-Core)** or E5-4600 (8-Core)
family (up to 130W CPU at 35°C) ** BIOS rev. 3.0 or above is needed to support Ivy Bridge-EP 4S |
| Cache | • Up to 30MB |
| System Bus | • QPI up to 8 GT/s |
|
System Memory
| |
|---|---|
| Memory Capacity | • 32x 240-pin DDR3 DIMM slots • Supports up to 1TB DDR3 ECC Registered memory (RDIMM) in 32 DIMM slots |
| Memory Type | • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection |
• Corrects single-bit errors |
|
On-Board Devices
| Chipset | • Intel® C602 chipset |
|---|---|
| SATA | • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
| Network Controllers | • Intel® i350 Dual port GbE LAN |
| Graphics | • Matrox G200eW (Nuvoton WPCM450 BMC) |
| Super I/O | • Nuvoton W83527HG |
|
Input/Output
| SATA | • 2x SATA 3.0 ports (6Gbps) • 4x SATA 2.0 ports (3Gbps) |
LAN | • 2x RJ45 Gigabit Ethernet LAN ports • 1x dedicated LAN port for IPMI |
USB | • 4x USB 2.0 rear ports |
|---|---|
| Video | • 1x VGA Port |
| Serial Port/Header | • 1 Fast UART 16550 serial port |
|
System BIOS
| BIOS Type | • 16MB SPI Flash EEPROM with AMI® BIOS | BIOS Features | • Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support |
|---|
|
Chassis
| |
|---|---|
| Form Factor | • Tower / 4U Rackmountable • Optional Rackmount Kit (MCP-290-00059-0B) |
| Model | • CSE-748TQ-R1K43B |
|
Dimension and Weight
| |
|---|---|
| Height | • 18.2" (462mm) |
| Width | • 7.0" (178mm) |
| Depth | • 28.4" (721mm) |
| Gross Weight | • 86.0 lbs (39.0 kg) |
| Available Colors | • Black |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 5x 3.5" Hard Drive Bays |
| Peripheral Bay(s) |
• 3x 5.25" Peripheral Drive Bays |
|
Expansion Slots
| |
|---|---|
| PCI-Express |
• 4x PCI-E 3.0 x16 (2 in x8) Slots |
|
Backplane
| |
|---|---|
|
• SAS/SATA HDD Backplane (SAS support requires optional SAS controller) |
|
|
System Cooling
| |
|---|---|
| Fans | • 3x 92mm RPM Hot-Swappable Cooling Fans |
| Shoruds |
• 1x Air Shroud |
|
Power Supply
| |
|---|---|
| Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2 | |
| AC Voltage | • 100-240 V, 50-60 Hz, 15 Amp max |
| +12V |
• 100 Amp/115 Vac • 117 Amp/230 Vac |
| With Power Distributor |
• +5V: 30 Amp • +3.3V: 25 Amp • -12V: 0.6 Amp |
|
PC Health Monitoring
| |
|---|---|
| CPU |
• Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages |
| FAN | • 4-pin fan headers with tachometer status monitoring |
| Temperature | • Monitoring for CPU and system environment |
| Other Features | • Chassis intrusion detection |
|
Operating Environment
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
