Supermicro 4U Rackmountable Tower SuperServer SYS-4047R-7JRFT

Call for price.

SKU:SYS-4047R-7JRFT

Quick Overview:

Key Features:
• Quad socket R (LGA 2011) Intel® Xeon® processor
• Up to 768GB* DDR3; 24X DIMM slots
• 8 PCI-E 3.0 x16 (1 x8 in x16 slot)
• Intel® X540 Dual port 10GBase-T

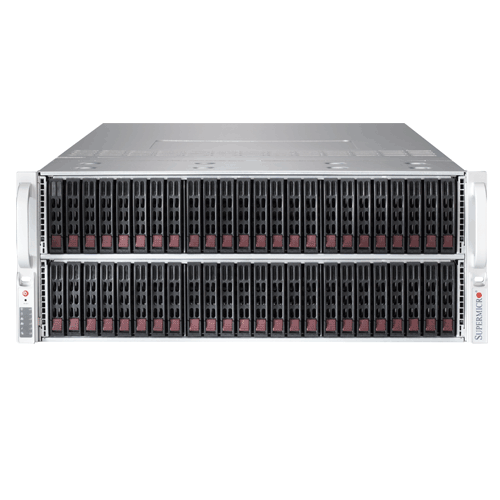

• 48x 2.5" Hot-swap SAS2/SATA3 HDD Bays
• 4x 9cm + 2x 8cm Heavy-duty Fans
• 1620W Redundant Power Supplies Platinum Level (94%+)

Description

Details

Supermicro SuperServer SYS-4047R-7JRFT

Product SKU
SYS-4047R-7JRFT	• SuperServer 4047R-7JRFT (Black)

Motherboard
	• Super X9QR7-TF-JBOD

Processor/Cache
CPU	• Intel® Xeon® processor E5-4600 v2 (12-Core) or E5-4600 (8-Core) family • Quad Socket R (LGA 2011) BIOS rev. 3.0 or above is needed to support Ivy Bridge-EP 4S
Cache	• Up to 30MB
System Bus	• QPI up to 8 GT/s

Processor/Cache

CPU

• Intel® Xeon® processor E5-4600 v2 (12-Core)** or E5-4600 (8-Core) family
• Quad Socket R (LGA 2011)

** BIOS rev. 3.0 or above is needed to support Ivy Bridge-EP 4S

Cache

• Up to 30MB

System Bus

• QPI up to 8 GT/s

System Memory
Memory Capacity	• 24x 240-pin DDR3 DIMM slots • Supports up to 768GB DDR3 ECC Registered memory (RDIMM)
Memory Type	• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602 chipset
AHCI SATA	• SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1
SCU SATA	• SATA 2.0 3Gbps with RAID 0, 1, 10
SAS	• SAS2 via Dual Broadcom 2308 • (IT mode)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC
Network Controllers	• Intel® X540 Dual Port 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBase-T , 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	• Matrox G200 (Nuvoton WPCM450 BMC)
Super I/O	• Nuvoton W83527HG

Input/Output
SAS	• SAS2 ports (6Gbps) (IT mode)
LAN	• 2x RJ45 10GBase-T ports • 1x dedicated LAN port for IPMI
USB	• 10x USB 2.0 ports total (4x rear + 4x via header + 2x Type A)
Serial Port/Header	• 2x Fast UART 16550 ports: 1 rear and 1 header

System BIOS
BIOS Type	• 16MB SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support

Chassis
Form Factor	• Tower / 4U Rackmountable • Rackmount Kit (MCP-290-00057-0N)
Model	• CSE-418E16-R1K62B2

Dimension and Weight
Height	• 7.0" (178mm)
Width	• 17.2" (437mm)
Depth	• 29" (737mm)
Gross Weight	• 100 lbs (45.4 kg)
Available Colors	• Black

Drive Bays
Hot-swap	• 48x 2.5" Hard drive bays

Expansion Slots
PCI-Express	• 8x PCI-E 3.0 x16 slots • (1x PCI-E 3.0 x8 in x16 slot)

Backplane
	• SAS/SATA HDD Backplane

System Cooling

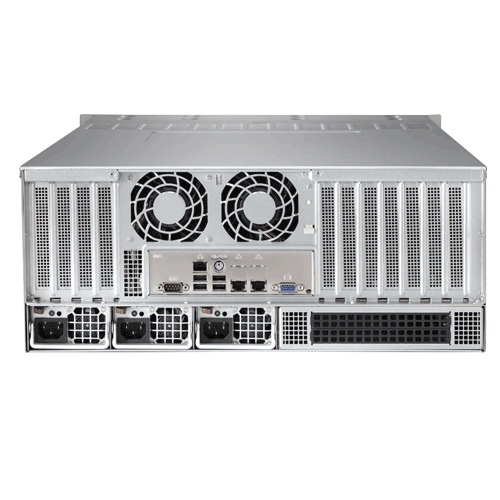

Fans	• 4x 92mm RPM Hot-Swappable Cooling Fans • 2x 80mm RPM Hot-Swappable Rear Exhaust Fan
Shrouds	• 1x Air Shroud (MCP-310-84805-0B)

Power Supply
	1620W high-efficiency redundant power supply w/ PMBus
AC Input	• 1000W Output @ 100-120V, 12-10A, 50-60Hz • 1200W Output @ 120-140V, 12-10A, 50-60Hz • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output	• 1000W: +12V/84A; +5Vsb/4A • 1200W: +12V/100A; +5Vsb/4A • 1620W: +12V/150A; +5Vsb/4A
Certification	• Platinum Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN	• 4-pin fan headers with tachometer status monitoring • Low noise fan speed control mode
Temperature	• Monitoring for CPU and system environment • Thermal Control for 8x fan connectors
Other Features	• Chassis intrusion detection

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
