Details

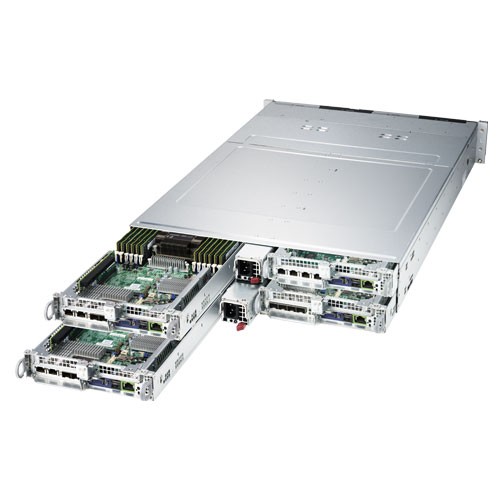

Supermicro SuperServer SYS-2029BT-HNC0R
Product SKU |
|
|---|---|
| SYS-2029BT-HNC0R | • SuperServer2029BT-HNC0R (Black) |
Motherboard |
|
|---|---|

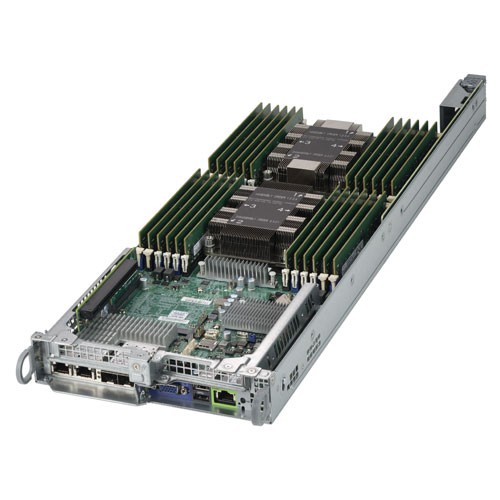

| Super X11DPT-B | |
Processor/Cache (per node) |
|
|---|---|
| CPU | • Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s • Support CPU TDP 70-205W* with IVR |
| Cores | • Up to 28 Cores with Intel® HT Technology |
| Note | * 200W/205W CPUs are supported under certain configurations. Please contact Will Jaya Technical Support for additional information about specialized system optimization |
System Memory (per node) |
|
|---|---|
| Memory Capacity |
• 24 DIMM slots • Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C621 chipset |
| SAS | • SAS3 (12Gbps) via Broadcom 3008; IT mode |
| Network | • Must bundle with at least one SIOM network card |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | • ASPEED AST2500 BMC |

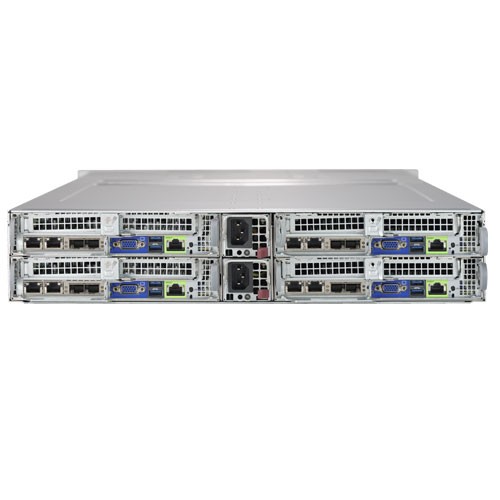

Input/Output (per node) |
|
|---|---|
| LAN | • 1 RJ45 Dedicated IPMI LAN port |
| USB | • 2 USB 3.0 ports (rear) |
| Video | • 1 VGA port |
| DOM | • 1 SuperDOM (Disk on Module) port |
System BIOS |
|
|---|---|
| BIOS Type | • AMI 32Mb SPI Flash ROM |
Management |
|
|---|---|
| Software |
• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • SSM, SPM, SUM • SuperDoctor® 5 • Watch Dog |
| Power Configurations | • ACPI / APM Power Management |
PC Health Monitoring |
|
|---|---|
| CPU |
• Monitors for CPU Cores, Chipset Voltages, Memory. • 4+1 Phase-switching voltage regulator |
| FAN | • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature |
• Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-217BHQ+-R2K22BP2 |
Dimension and Weight |
|
|---|---|
| Height | • 3.47" (88mm) |
| Width | • 17.25" (438mm) |
| Depth | • 28.5" (724mm) |
| Gross Weight | • 85 lbs (38.6kg) |
| Available Color | • Black |

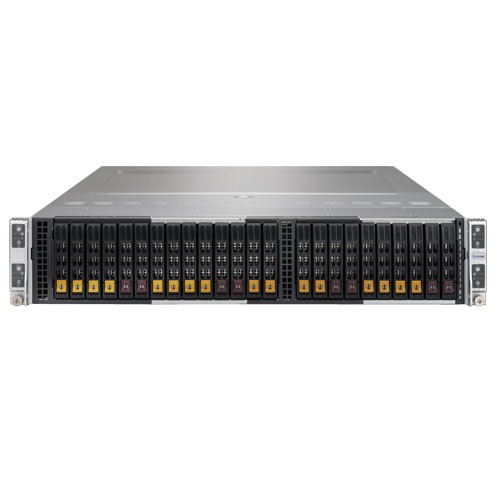

Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • UID button |
| LED |
• Power status LED • Hard drive activity LED • Network activity LEDs • Universal Information (UID) LED |
Expansion Slots (per node) |
|
|---|---|
| PCI-Express |
• 2 PCI-E 3.0 (x16) Low-profile slots • 1 SIOM card support (must bundle with network card) |
Drive Bays (per node) |
|
|---|---|
| Hot-swap |
• 6 Hot-swap 2.5" SAS3 drive bays or 4 NVMe + 2 SAS3 Hot-swap 2.5" Please contact Will JayaTechnical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD. |
System Cooling |
|
|---|---|
| Fans | • 4 Heavy duty 8cm PWM fans with air shroud |
Power Supply |
|
|---|---|
| 2200W Redundant Power Supplies with PMBus | |
| Total Output Power | • 1200W/1800W/1980W/2090/2200W |
| Dimension
(W x H x L) |
• 45 x 40 x 480 mm |
| Input | • 1200W: 100-127Vac / 50-60Hz • 1800W: 200-220Vac / 50-60Hz • 1980W: 220-230Vac / 50-60Hz • 2090W: 230-240Vac / 50-60Hz • 2090W: 180-220Vac (for UL/cUL only) • 2200W: 220-240Vac (for UL/cUL only) • 2090W: 230-240Vdc (for CCC only) |
| +12V | • Max: 100A / Min: 0A (100-127Vac) • Max: 150A / Min: 0A (200-220Vac) • Max: 165A / Min: 0A (220-230Vac) • Max: 174.17A / Min: 0A (230-240Vac) • Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only) • Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only) • Max: 174.17A / Min: 0A (230-240Vdc, CCC only) |
| 12Vsb | • Max: 2.1A / Min: 0A |
| Output Type | • Gold Finger |
| Certification | • 80 Plus Titanium Level |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) |
