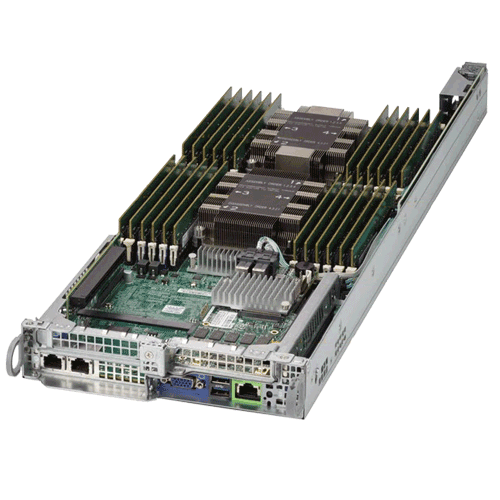

  • Supermicro BigTwin SuperServer SYS-2029BT-HNC1R - Node

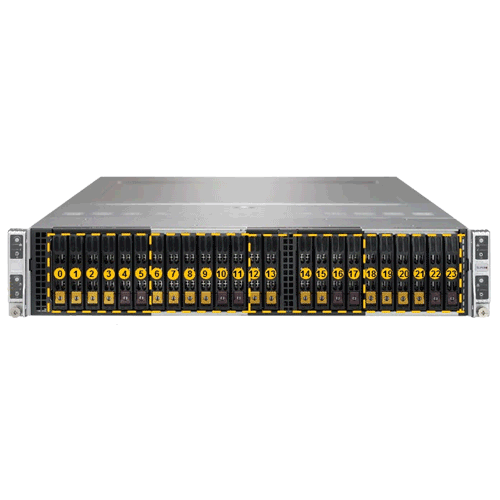

  • Supermicro BigTwin SuperServer SYS-2029BT-HNC1R - Front

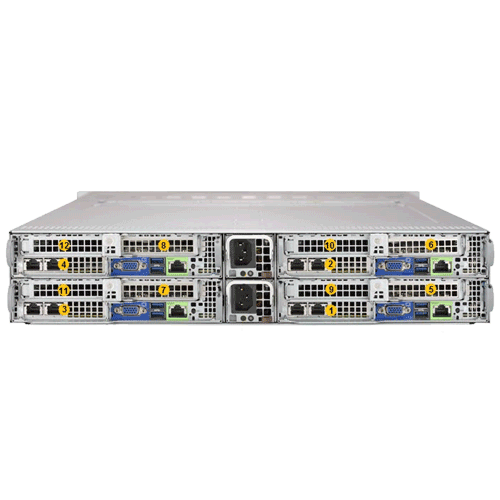

  • Supermicro BigTwin SuperServer SYS-2029BT-HNC1R - Rear

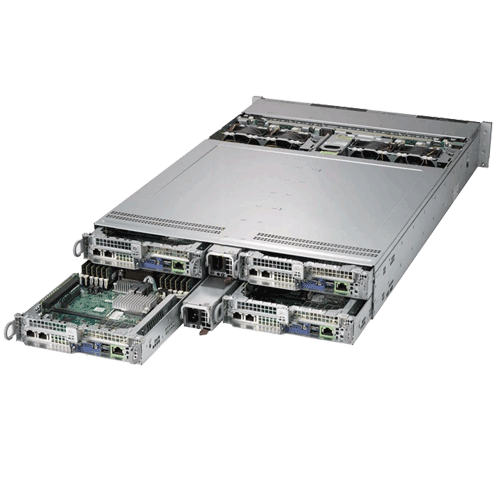

Supermicro BigTwin SuperServer SYS-2029BT-HNC1R (Complete System Only)

Call for price.
SKU:SYS-2029BT-HNC1R

Quick Overview:

Key Features:
• Four hot-pluggable systems (nodes) in a 2U form factor.
• Supports Intel® Xeon® Scalable Processors,
• Up to 3TB of memory
• 6 SAS3 or 4 NVMe
   + 2 SAS3 Hot-swap 2.5" drive bays
• 4 Heavy duty 8cm PWM fans with air shroud
• 2200W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 2 DIMMs, 1 HDD/NVMe and 1 SIOM card per node). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro BigTwin SuperServer SYS-2029BT-HNC1R (Complete System Only)

Product SKU
SYS-2029BT-HNC1R • SuperServer 2029BT-HNC1R (Black)
Motherboard
  • Super X11DPT-B
Processor/Cache (per node)
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-205W*
Cores • Up to 28 Cores with Intel® HT Technology
Note * 200W/205W CPUs are supported under certain configurations. Please contact Will Jaya Technical Support for additional information about specialized system optimization
System Memory (per node)
Memory Capacity • 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SAS • SAS3 (12Gbps) via Broadcom 3108; RAID 0, 1, 5, 6, 10, 50, 60
Network • Must bundle with at least one SIOM network card
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video

• ASPEED AST2500 BMC
Input/Output (per node)
LAN • 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
Video • 1 VGA port
DOM • 1 SuperDOM (Disk on Module) port
Others • M.2 and SATA DOM for boot drive only
System BIOS
BIOS Type

• AMI 32Mb SPI Flash ROM
Management
Software

• Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• SSM, SPM, SUM
• SuperDoctor® 5
• Watch Dog
Power Configuration

• ACPI / APM Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory.
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Fans with tachometer monitoring Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature










 • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 2U Rackmount
Model • CSE-217BHQ+-R2K22BP2
Dimension and Weight
Height • 3.47" (88mm)
Width • 17.6" (447mm)
Depth • 28.75" (730mm)
Gross Weight • 85 lbs (38.6kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• UID button
LEDs

• Power status LED
• HDD activity LED
• Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-Express

• 1 PCI-E 3.0 (x16) Low-profile slot
• 1 SIOM card support (must bundle with network card)
Drive Bays/Storage (per node)
Hot-swap

• 6 Hot-swap 2.5" SAS3 drive bays or 4 NVMe + 2 SAS3 Hot-swap 2.5"

Note

Please contact Will Jaya Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD.
M.2

• 2 M.2 NVMe or SATA (2240/2260/2280) via optional AOC-SMG3-2H8M2-B
System Cooling
Fans

• 4 Heavy duty 8cm PWM fans with air shroud
Power Supply
  2200W Redundant Power Supplies with PMBus
Total Output Power • 1200W/1800W/1980W/2090/2200W
Dimension
(W x H x L)
 • 45 x 40 x 480 mm
Input
 • 1200W: 100-127Vac / 50-60Hz
• 1800W: 200-220Vac / 50-60Hz
• 1980W: 220-230Vac / 50-60Hz
• 2090W: 230-240Vac / 50-60Hz
• 2090W: 180-220Vac (for UL/cUL only)
• 2200W: 220-240Vac (for UL/cUL only)
• 2090W: 230-240Vdc (for CCC only)
+12V
 • Max: 100A / Min: 0A (100-127Vac)
• Max: 150A / Min: 0A (200-220Vac)
• Max: 165A / Min: 0A (220-230Vac)
• Max: 174.17A / Min: 0A (230-240Vac)
• Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
• Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
• Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
12Vsb • Max: 2.1A / Min: 0A
Output Type • Gold Finger
Certification • Titanium Level
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
