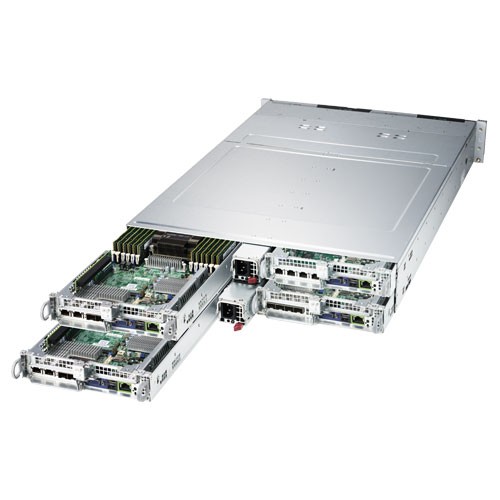

  • Supermicro 2U Rackmount SYS-2029BT-HTR - Angle

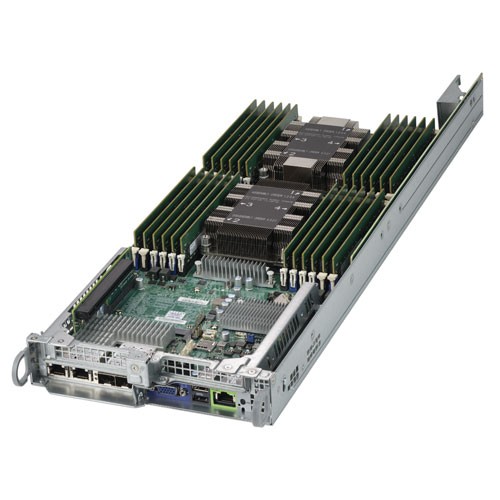

  • Supermicro 2U Rackmount SYS-2029BT-HTR - Node

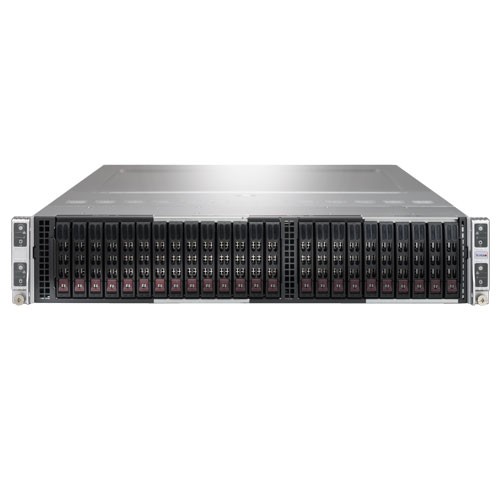

  • Supermicro 2U Rackmount SYS-2029BT-HTR - Front

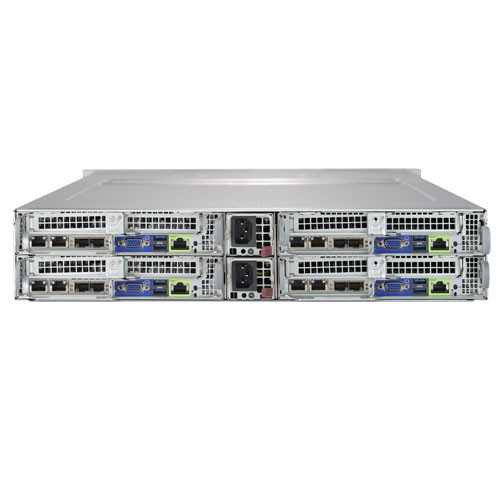

  • Supermicro 2U Rackmount SYS-2029BT-HTR - Rear

Supermicro 2U Rackmount SuperServer BigTwin SYS-2029BT-HTR

Call for price.
SKU:SYS-2029BT-HTR

Quick Overview:

Key Features:
• Compute Intensive Application | HPC, Data Center |
   Enterprise Server | Hyperscale / Hyperconverged
• Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Up to 3TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 24 DIMM slots Supports Intel Optane Memory NVDIMM
• 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking) Note: must bundle with Network card
• IPMI 2.0 + KVM with dedicated LAN
• 6 Hot-swap 2.5" SATA3 drive bays
• Video via Aspeed AST2500 BMC
• 4 Heavy duty 8cm PWM fans with air shroud
• 2200W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 2 DIMM, 1 HDD/NVMe and 1 SIOM card per node). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro SuperServer SYS-2029BT-HTR
Product SKU
• SuperServer 2029BT-HTR (Black)
Motherboard
    Super X11DPT-B
Processor/Cache (per node)
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-205W* with IVR
Cores • Up to 28 Cores with Intel® HT Technology
Note * 200W/205W CPUs are supported under certain configurations. Please contact Will Jaya Technical Support for additional information about specialized system optimization
System Memory (per node)
Memory Capacity • 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
Storage • SATA3 (6Gbps) via Intel C620 controller; RAID 0, 1, 5, 10 per node
Network • Must bundle with at least one SIOM network card
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video • ASPEED AST2500 BMC
Input/Output (per node)
LAN • 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
Video • 1 VGA port
DOM • 1 SuperDOM (Disk on Module) port
System BIOS
BIOS Type • AMI 32Mb SPI Flash ROM
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• SSM, SPM, SUM
• SuperDoctor® 5
• Watch Dog
Power Configurations   • ACPI / APM Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory.
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature





• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors



Chassis
Form Factor • 2U Rackmount
Model CSE-217BHQ+-R2K22BP2
Dimension and Weight
Height • 3.47" (88mm)
Width • 17.25" (438mm)
Depth • 28.5" (724mm)
Gross Weight • 85 lbs (38.6kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• UID button
LED • Power status LED
• Hard drive activity LED
• Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-Express • 2 PCI-E 3.0 (x16) Low-profile slots
• 1 SIOM card support (must bundle with network card)
Drive Bays (per node)
Hot-swap

• 6 Hot-swap 2.5" SATA3 drive bays

System Cooling
Fans • 4 Heavy duty 8cm PWM fans with air shroud
Power Supply
  2200W Redundant Power Supplies with PMBus
Total Output Power • 1200W/1800W/1980W/2090/2200W
Dimension
(W x H x L)
• 45 x 40 x 480 mm
Input • 1200W: 100-127Vac / 50-60Hz
• 1800W: 200-220Vac / 50-60Hz
• 1980W: 220-230Vac / 50-60Hz
• 2090W: 230-240Vac / 50-60Hz
• 2090W: 180-220Vac (for UL/cUL only)
• 2200W: 220-240Vac (for UL/cUL only)
• 2090W: 230-240Vdc (for CCC only)
+12V • Max: 100A / Min: 0A (100-127Vac)
• Max: 150A / Min: 0A (200-220Vac)
• Max: 165A / Min: 0A (220-230Vac)
• Max: 174.17A / Min: 0A (230-240Vac)
• Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
• Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
• Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
12Vsb • Max: 2.1A / Min: 0A
Output Type • Gold Finger
Certification • 80 Plus Titanium Level
Operating Environment / Compliance
RoHS • RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
