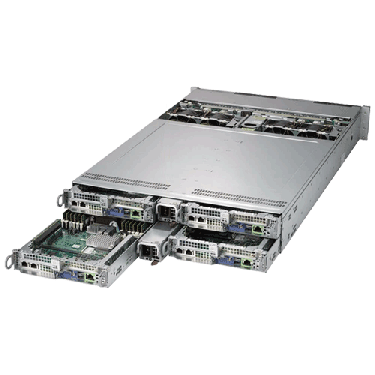

Supermicro BigTwin SuperServer SYS-6028BT-HNC0R+ Angle

More Views

  • Supermicro BigTwin SuperServer SYS-6028BT-HNC0R+ Angle
  • Supermicro BigTwin SuperServer SYS-6028BT-HNC0R+ Node
  • Supermicro BigTwin SuperServer SYS-6028BT-HNC0R+ Front
  • Supermicro BigTwin SuperServer SYS-6028BT-HNC0R+ Rear

Supermicro BigTwin SuperServer SYS-6028BT-HNC0R+ (Complete System Only)

Call for price.
SKU:SYS-6028BT-HNC0R+

Quick Overview:

Key Features:
• Four hot-pluggable systems (nodes) in a 2U form factor
• Intel® Xeon® processor E5-2600 v4†/ v3
• Up to 3TB of memory
• 3 Hot-swap 3.5" NVMe/SAS3 drive bays
• 4 heavy duty 8cm PWM fans with air shroud
• 2200W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (including but not limited to CPU, memory, and HDDs). Please contact your Supermicro sales rep for special requirements.

Details

Supermicro BigTwin SuperServer SYS-6028BT-HNC0R+ (Complete System Only)

Product SKU
SYS-6028BT-HNC0R+ • SuperServer 6028BT-HNC0R+ (Black)
Motherboard
  • Super X10DRT-B+
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
Notes • QPI up to 9.6 GT/s Note † BIOS version 2.0 or above is required
  * Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity • 24x 288-pin DDR4 DIMM slots
• Up to 3TB† ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes

• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2 V
Error Detection

• Corrects single-bit errors
On-Board Devices (per node)
Chipset • Intel® C612 chipset
SAS • SAS3 (12Gbps) via Broadcom 3008; IT mode
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network

• Must bundle with at least one SIOM network card
Video

• ASPEED AST2400 BMC
Input/Output (per node)
SAS • 3 SAS3 (12Gbps) ports
LAN • 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
Video • 1 VGA port
Others


















 • M.2 and SATA DOM for boot drive only
Chassis
Form Factor • 2U Rackmount
Model • CSE-827BHQ+-R2K22BP
Dimension and Weight
Height • 3.47" (88mm)
Width • 17.6" (447mm)
Depth • 30.5" (775mm)
Gross Weight • 86.5 lbs (39.24 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• UID button
LEDs

• Power status LED
• HDD activity LED
• 2 Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-Express

• 2 PCI-E 3.0 (x16) Low-profile slots
• 1 SIOM card (must bundle with network card)
Drive Bays (per node)
Hot-swap

• 3 Hot-swap 3.5" NVMe/SAS3 drive bays
System Cooling
Fans

• 4 heavy duty 8cm PWM fans with air shroud
Power Supply
  2200W Redundant Power Supplies with PMBus
Total Output Power • 1200W/1800W/1980W/2090/2200W
Dimension
(W x H x L)
 • 45 x 40 x 480 mm
Input • 1200W: 100-127Vac / 50-60Hz
• 1800W: 200-220Vac / 50-60Hz
• 1980W: 220-230Vac / 50-60Hz
• 2090W: 230-240Vac / 50-60Hz
• 2090W: 180-220Vac (for UL/cUL only)
• 2200W: 220-240Vac (for UL/cUL only)
• 2090W: 230-240Vdc (for CCC only)
+12V • Max: 100A / Min: 0A (100-127Vac)
• Max: 150A / Min: 0A (200-220Vac)
• Max: 165A / Min: 0A (220-230Vac)
• Max: 174.17A / Min: 0A (230-240Vac)
• Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
• Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
• Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
12Vsb • Max: 2.1A / Min: 0A
Output Type • Gold Finger
Certification • Titanium Level
System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS
Operating Environment/Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
