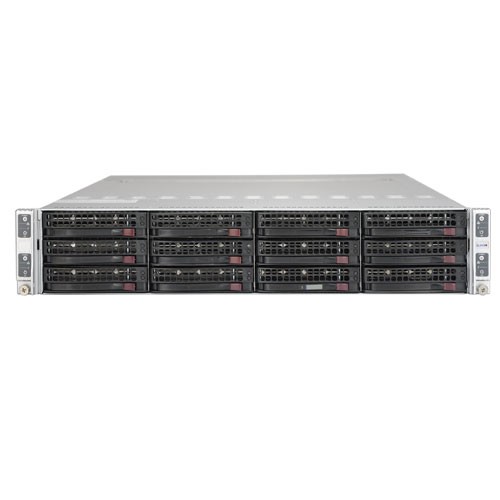

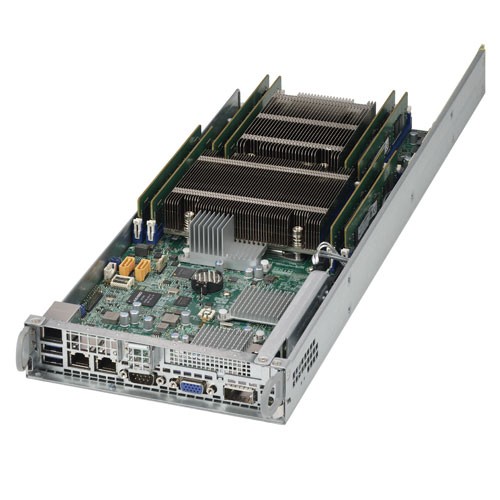

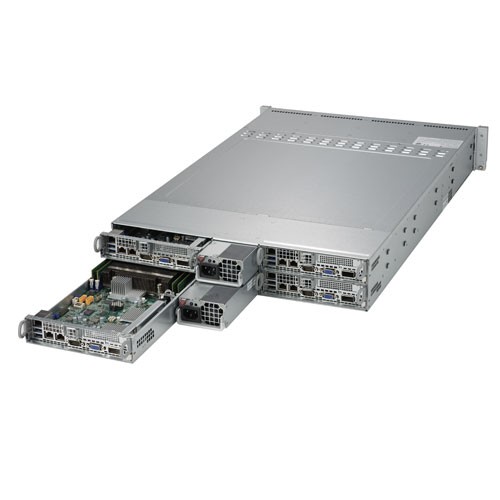

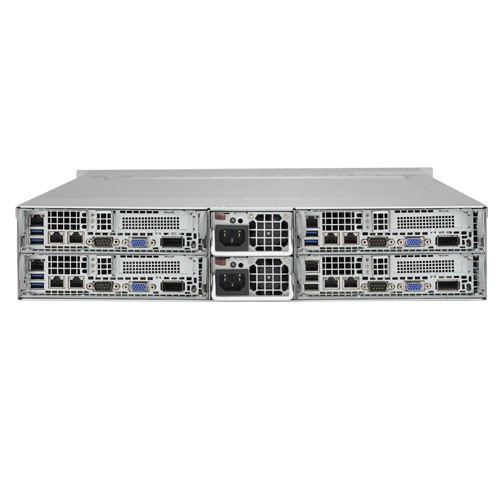

Supermicro Super X10DRT-HIBF Server Motherboard and CSE-827HQ-R1K68B 2U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-6028TR-HTFR | • SuperServer 6028TR-HTFR (Black) |
Motherboard |
|
|---|---|
| Super X10DRT-HIBF | |
Processor/Cache (per node) |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Dual Socket R3 (LGA 2011) |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Note | • † BIOS version 2.0 or above is required |
* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
|
System Memory (per node) |
|
|---|---|
| Memory Capacity |
• 8x 288-pin DDR4 DIMM slots • Up to 1TB† ECC 3DS LRDIMM, 256GB ECC RDIMM |
| Memory Type |
• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes |
• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C612 chipset |
| Infiniband | • Mellanox ConnectX-3 FDR Infiniband 56Gbps Controller |
| SATA | • SATA3 (6Gbps) with RAID 0, 1, 5 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | • Intel® i350-AM2 Dual Port Gigabit Ethernet |
| Graphics | • ASPEED AST2400 BMC |
Input/Output (per node) |
|
|---|---|
| Infiniband | • 1x External QSFP Infiniband connector |
| Serial ATA | • 8x SATA3 (6Gbps) ports |
| LAN | • 2x RJ45 Gigabit Ethernet LAN ports |
| USB | • 2x USB 3.0 ports total (rear) |
| Video | • 1x VGA port |
| Serial/Header Port | • 1x RS232
|
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-827HQ-R1K68B |
Dimension and Weight |
|
|---|---|
| Height | • 3.47" (88mm) |
| Width | • 17.25" (438mm) |
| Depth | • 28.5" (724mm) |
| Gross Weight | • 85 lbs (38.6kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button |
| LEDs | • Power status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
Expansion Slots (per ode) |
|
|---|---|
| PCI-E |
• 1x PCI-E 3.0 (x16) Low-profile slot |
Drive Bays (per node) |
|
|---|---|
| Hot-swap |
• 3x 3.5" Hot-swap SATA3 HDD trays Please contact Will Jaya Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD. |
System Cooling |
|
|---|---|
| Fans |
• 4x 8cm heavy duty PWM fans with optimal fan speed control |
Power Supply (76mm Width) |
|
|---|---|
| 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | • 800W/1600W |
| Dimension
(W x H x L) |
• 76 x 40.4 x 336 mm |
| Input | • 100-140Vac / 10-7A / 50-60Hz • 180-240Vac / 11-8A / 50-60Hz |
| +12V | • Max: 66A / Min: 0A (100-127Vac) • Max: 133A / Min: 0A (200-240Vac) |
| +5Vsb | • Max: 1A / Min: 0A |
| Output Type | • 27 Pairs Gold Finger Connector |
| Certification | • Titanium Level |
System Bios |
|
|---|---|
| Bios Type |
• 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) |
