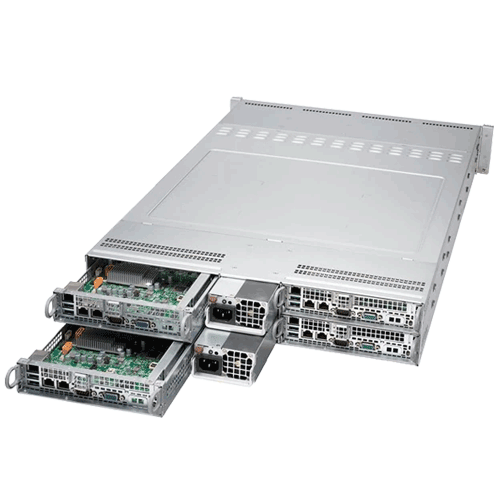

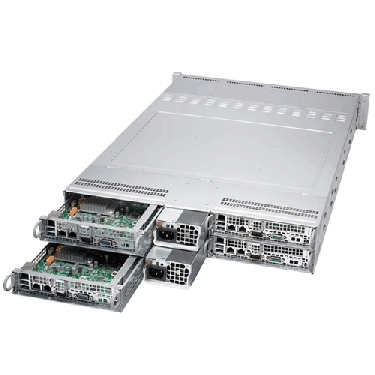

Supermicro 2U Twin2 SuperServer SYS-6029TR-HTR

Product SKU
SYS-6029TR-HTR	• SuperServer 6029TR-HTR (Black)

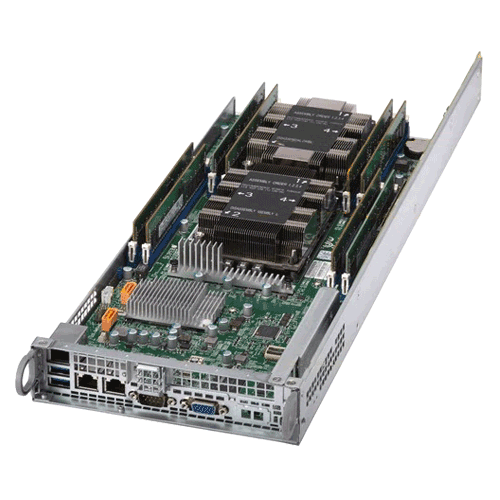

Motherboard (Four per system)
	• Super X11DPT-L

Processor/Cache (per Node)
CPU	• Dual Socket P (LGA 3647) • Dual Socket P (LGA 3647) Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s • Support CPU TDP 70-140W
Cores	• Up to 22 Cores with Intel® HT Technology

System Memory (per node)
Memory Capacity	• 8 DIMM slots • Up to 1TB ECC 3DS LRDIMM, 1TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type	• 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices (per node)
Chipset	• Intel® C621 chipset
SATA	• SATA3 (6Gbps); RAID 0, 1, 5 support
Network Controllers	• Intel® C621 chipset
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	• ASPEED AST2500 BMC

Input/Output (per node)
SATA	• 3 SATA3 (6Gbps) ports

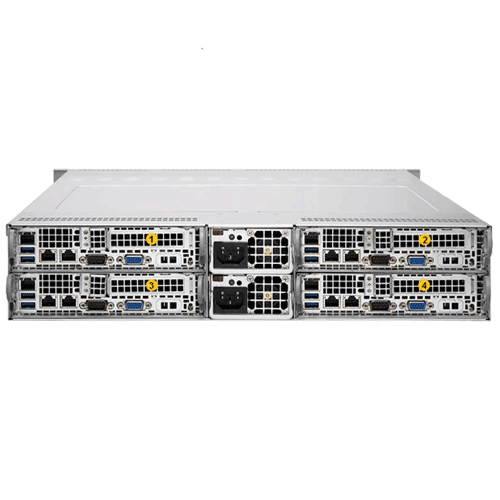

LAN	• 2 RJ45 Gigabit Ethernet LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports total (rear)
VGA	• 1 VGA port
Serial Port/Header	• 1 COM Port (1 rear)
Others	• TPM 2.0 Header

System BIOS
BIOS Type	• AMI 32Mb SPI Flash ROM with UEFI

Management
Software	• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • NMI • SSM, SPM, SUM • SuperDoctor® 5 • Watchdog

PC Health Monitoring
CPU	• Monitors for CPU Cores, Chipset Voltages, Memory. • 4+1 Phase-switching voltage regulator
FAN	• Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for fan connectors

Chassis
Form Factor	• 2U Rackmount
Model	• CSE-827HQ-R1K68BP3

Front Panel
Buttons	• Power On/Off button • UID button
LEDs	• Power status LED • HDD activity LED • Network activity LEDs • Universal Information (UID) LED

Expansion Slots (per node)
PCI-Express	• 1 PCI-E 3.0 x16 Low-profile slot

Drive Bays/Storage (per node)

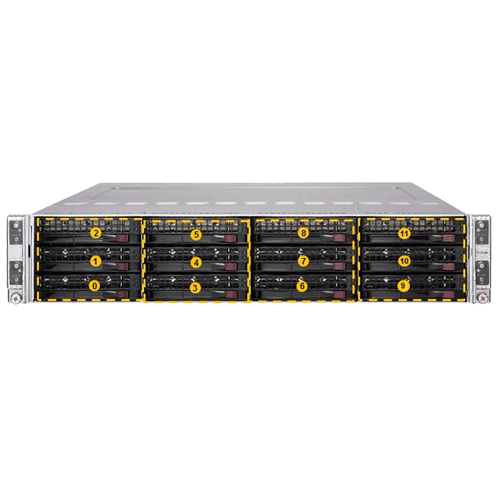

Hot-swap	• 3 Hot-swap 3.5" SATA3 HDD trays
Others	• 2 SATA DOM • 1 PCI-E 3.0 x4 NVMe or 1 SATA M.2 (22110/2280) support via BPN-ADP-6SATA3M2-1UL * M.2 and SuperDOM are for OS boot

Drive Bays/Storage (per node)

Hot-swap

• 3 Hot-swap 3.5" SATA3 HDD trays

Others

• 2 SATA DOM
• 1 PCI-E 3.0 x4 NVMe or 1 SATA M.2 (22110/2280) support via BPN-ADP-6SATA3M2-1UL

* M.2 and SuperDOM are for OS boot

System Cooling
Fans	• 4x 8cm heavy duty PWM fans with optimal fan speed controlled

Power Supply (76mm Width)
	1600W 1U Redundant Power Supplies with PMBus
Total Output Power	• 800W/1600W
Dimension (W x H x L)	• 76 x 40.4 x 336 mm
Input	• 100-140Vac / 10-7A / 50-60Hz • 180-240Vac / 11-8A / 50-60Hz
+12V	• Max: 67A / Min: 0A (100-140Vac) • Max: 133A / Min: 0A (180-240Vac)
+5Vsb	• Max: 1A / Min: 0A
Output Type	• 27 Pairs Gold Finger Connector
Certification	• Titanium Level

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
