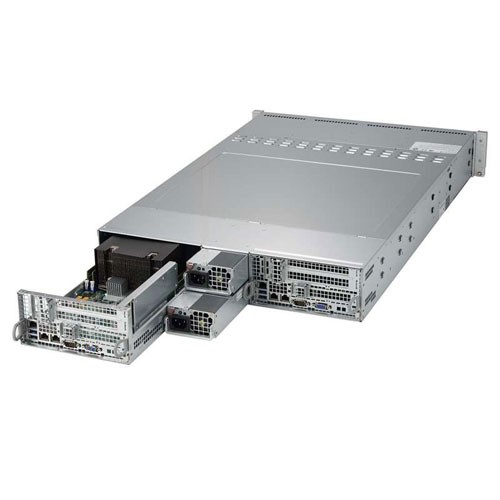

Supermicro 2U Rackmount SYS-6028TR-D72R - Angle

More Views

Supermicro 2U Twin Rackmount SuperServer SYS-6028TR-D72R

Call for price.

SKU:SYS-6028TR-D72R

Quick Overview:

Key Features:

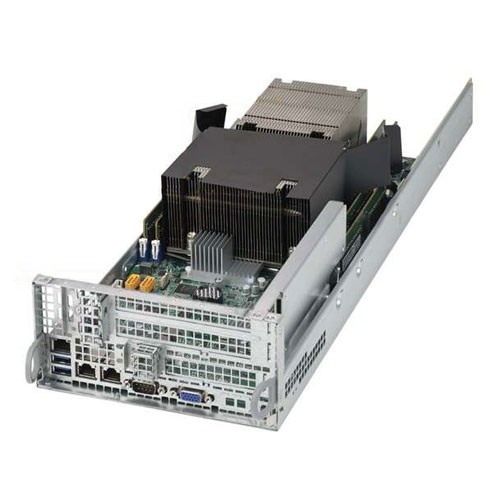

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
family; QPI up to 9.6GT/s
• Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
• 3x PCI-E 3.0 x8 slots (1x low-profile and 2x FHHL)
• Intel® i350 Dual port GbE LAN
• 6x 3.5" Hot-swap SAS2/SATA3 drive bays
• SAS2 (6Gbps) via LSI 2208
• 1280W Redundant Power Supplies Platinium Level

Description

Details

Superworkstation SYS-6028TR-D72R

Supermicro SYS-6028TR-D72R 2U Rackmount Barebone with 1280W Redundant Power Supplies, Intel® C612 chipset support 6x 3.5" Hot-swap SAS2/SATA3 drive bays per node using
Supermicro Super X10DRT-H Server Motherboard and CSE-827HD-R1K28B 2U Rackmount Chassis.

Product SKU
SYS-6028TR-D72R	• SuperServer 6028TR-D72R (Black)

Motherboard
	Super X10DRT-H

Processor/Cache (per node)
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Single Socket R3 (LGA 2011)
Core/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
Note	• † BIOS version 2.0 or above is required
	* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory (per node)
Memory Capacity	• 8x 288-pin DDR4 DIMM slots • Up to 1TB† ECC 3DS LRDIMM, 256GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SAS	• SAS2 (6Gbps) via LSI 2208 w/ Hardware RAID support • RAID 0, 1, 5, 6, 10, 50 support
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Aspeed AST2400 BMC
Network Controller	• Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Videos	• Aspeed AST2400 BMC

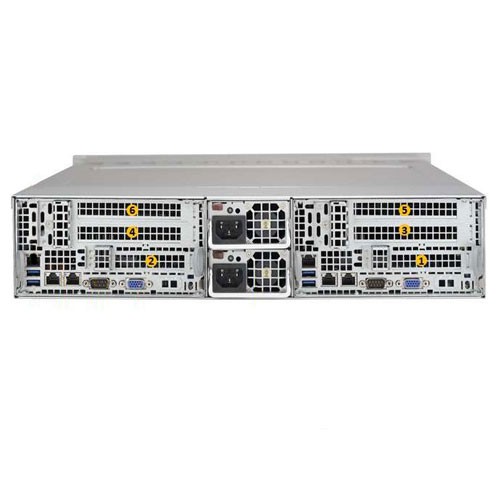

Input/Output (per node)
Serial ATA	• 8x SATA3 (6Gbps) ports
SAS	• 6x SAS2 ports (6Gbps)
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 ports (rear)
Video	• 1x VGA port

Chassis
Form Factor	• 2U Rackmount
Model	• CSE-827HD-R1K28B

Dimension and Weight
Height	• 3.47" (88mm)
Width	• 17.25" (438mm)
Depth	• 28.5" (724mm)
Gross Weight	• 85 lbs (38.6kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button • UID button
LEDs	• Power LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED

Expansion Slots (per node)
PCI-E	• 1x PCI-E 3.0 (x8) Low-profile slot • 2x PCI-E 3.0 (x8) Full-height Half-length slots

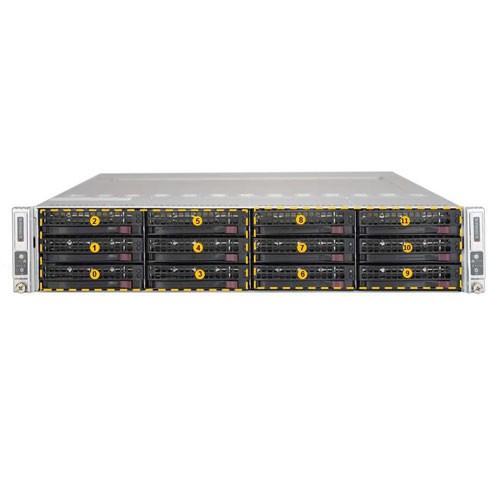

Drive Bays (per node)
Hot-swap	• 6x 3.5" Hot-swap SAS2/SATA3 drive bays Please contact Will Jaya Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD.

Drive Bays (per node)

Hot-swap

• 6x 3.5" Hot-swap SAS2/SATA3 drive bays

Please contact Will Jaya Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD.

System Cooling
Fans	• 4x 8cm heavy duty fans with PWM fan speed control

Power Supply
	1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input	• 1000W Output @ 100-140V, 8-12A, 50-60Hz • 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output	• 1000W: +12V/83A; +5Vsb/4A • 1280W: +12V/106.7A, +5Vsb/4A
Certification	• Platinum Certified

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
