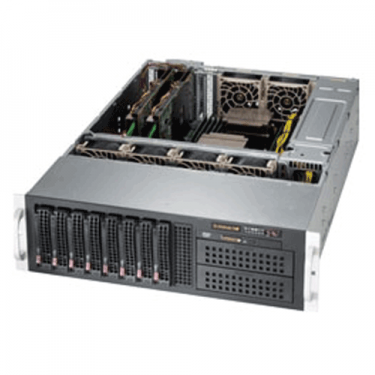

Supermicro Xeon Phi Server SYS-6037R-72RFT+
Product SKU |
|
|---|---|
| SYS-6037R-72RFT+ | • SuperServer 6037R-72RFT+ (Black) |
Motherboard |
|
|---|---|
| Super X9DR7-TF+ | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 135W TDP *) |
| Note | † BIOS version 3.0 or above is required |
| Cache | • Up to 30MB |
| System Bus | • QPI up to 8 GT/s |
| GPU/Xeon Phi Support |
• M2050/M2070(Q), up to 135W CPU at 30°C • M2090, up to 135W CPU at 30°C • Xeon Phi, up to 135W CPU at 30°C |
System Memory |
|
|---|---|
| Memory Capacity | • 24x 240-pin DDR3 DIMM slots • Up to 1.5TB DDR3 ECC LRDIMM • Up to 768GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C602J Chipset |
| SATA | • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1, 5, 10 |
| SAS | • SAS2 via Broadcom 2208 • HW RAID 0, 1, 5, 6, 10, 50, 60 support |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
| Network Controllers |
• Intel® X540 Dual Port 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Graphics | • Nuvoton W83527HG |
Input/Output |
|
|---|---|
| Serial ATA | • 2x SATA 3.0 ports (6Gbps) • 4x SATA 2.0 ports (3Gbps) |
| SAS | • 8x SAS2 ports (6Gbps) |
| LAN | • 2x RJ45 10GBase-T ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 4x Rear USB 2.0 ports • MB: 4x rear + 4x via header + 1x Type A |
| VGA | • 1x VGA port |
| Serial Port / Header | • 2x Fast UART 16550 ports: 1 rear and 1 header |
Chassis |
|
|---|---|
| Form Factor | • 3U Rackmount |
| Model | • CSE-835BTQ-R1K28B |
Dimension & Weight |
|
|---|---|
| Width | • 17.2" (437mm) |
| Height | • 5.2" (132mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • 74.8lbs (34kg) |
| Available Colors | • Black |
Front Panel |
|
|---|---|
| Button | • Power On/Off button • System Reset button |
| LEDs | • Power status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED |
Drive Bays |
|
|---|---|
| Hot-Swap | • 8x 3.5" Hot-swap SAS/SATA HDD trays • SAS or enterprise SATA HDD only recommended |
| Peripheral Bays | • 2x 5.25" Peripheral Drive Bay |
Backplane |
|
|---|---|
| • 1 SAS/SATA backplane | |
System Cooling |
|
|---|---|
| Fans | • 4x 8cm 9.5K RPM, Middle fans • 2x 8cm 6.7K RPM, Rear Exhaust fan |
Power Supply |
|
|---|---|
| • 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2 | |
| AC Input | • 1000W Output @ 100-140V, 8-12A, 50-60Hz • 1280W Output @ 180-240V, 6-8A, 50-60Hz |
| DC Output | • 1000W: +12V/83A; +5Vsb/4A • 1280W: +12V/106.7A, +5Vsb/4A |
| Certification | • Platinum Certified |
System BIOS |
|
|---|---|
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | • 1000W Output @ 100-140V, 8-12A, 50-60Hz • 1280W Output @ 180-240V, 6-8A, 50-60Hz |
Operating Environment |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
