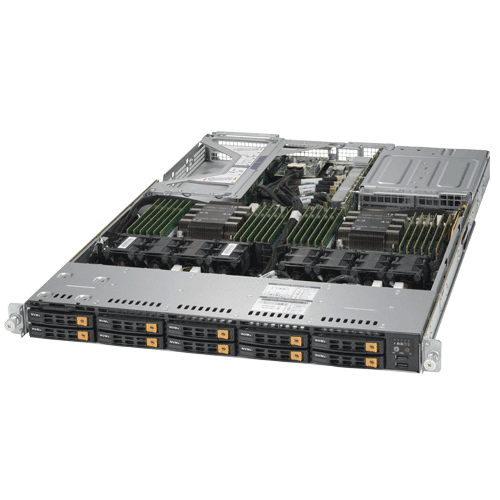

  • SYS-1029U-TN10RT ANgle

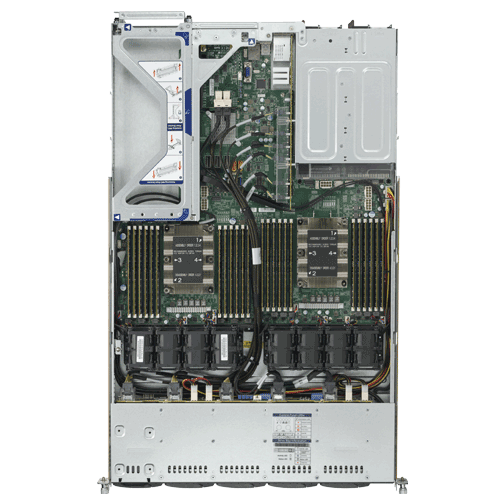

  • SYS-1029U-TN10RT Top

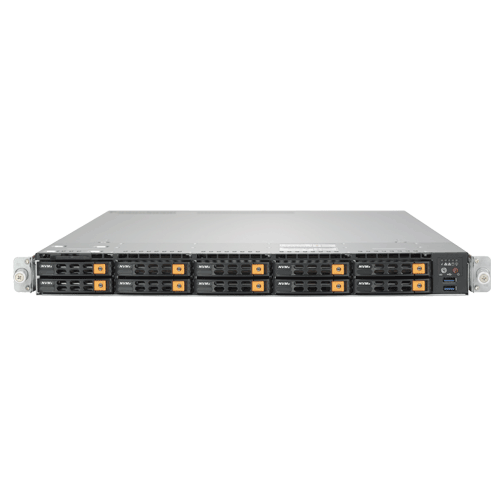

  • SYS-1029U-TN10RT Front

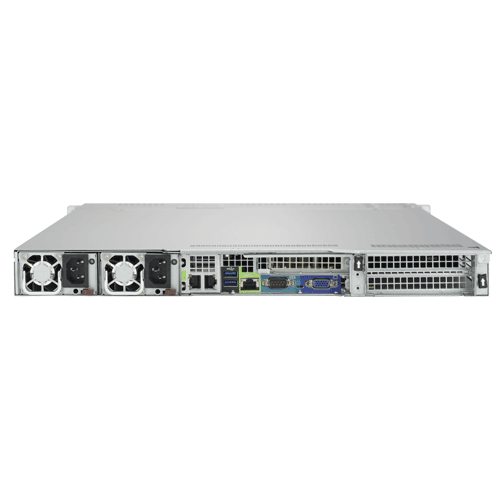

  • SYS-1029U-TN10RT Rear

Supermicro Ultra SuperServer SYS-1029U-TN10RT (Complete System Only)

Call for price.
SKU:SYS-1029U-TN10RT

Quick Overview:

Key Features:
• Intel® Xeon® Scalable Processors
• Up to 3TB of memory
• 10 Hot-swap 2.5" Drive Bays
• 10 NVMe (4 hybrid ports)
• 8 Heavy duty fans w/ optimal fan speed control
• 1000W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 4 DIMMs and 4 NVMe). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro Ultra SuperServers SYS-1029U-TN10RT (Complete System Only)

Product SKU
SYS-1029U-TN10RT • SuperServer 1029U-TN10RT (Black)
Motherboard
  • Super X11DPU
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
• 2666 ECC DDR4 NVDIMM
On-Board Devices
Chipset • Intel® C621 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity • 2 10GBase-T ports via AOC-URN6-i2XT
• Intel® X540 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

• ASPEED AST2500 BMC
Input/Output
NVMe • 6 NVMe ports (NVMe from CPU 1)
• 4 NVMe Hybrid ports with optional SAS3 (NVMe from CPU 2)
LAN • 2 RJ45 10GBase-T ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 5 USB 3.0 ports (2 rear, 2 front, 1 Type A)
Video • 2 VGA ports (1 rear, 1 onboard)
Serial Port • 1 Serial header
DOM • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type

• AMI 32Mb SPI Flash ROM
Management
Software

• Intel® Node Manager
• Redfish API
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
Power Configuration

• ACPI Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 1U Rackmount
Model • CSE-119UTS-R1K02P-N10T
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 28.5" (724mm)
Gross Weight • 48 lbs (21.8 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System UID button
LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• UID LED
Expansion Slots
PCI-Express

• 2 PCI-E 3.0 x16 slots (Full-height, 10.5"L)

Drive Bays/Storage
Hot-swap

• 10 Hot-swap 2.5" drive bays
• 10 NVMe (4 hybrid ports for optional SAS3 via AOC)
M.2

• 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110)
• 1 M.2 M-Key SATA3 via optional cable CBL-SAST-0538 and plastic stand-off FST-SCRW-0074L (2240/2260/2280/22110)
• 2 M.2 PCI-E 3.0 x4 M-Key NVMe via optional add-on card AOC-SLG3-2M2 (2260/2280/22110)
System Cooling
Fans

• 8 Heavy duty fans with optimal fan speed control
Air Shrouds

• 1 Air Shroud
Power Supply
  1000W Redundant Power Supplies with PMBus
Total Output Power • 800W/1000W
Dimension
(W x H x L)
 • 73.5 x 40 x 203 mm
Input • 100-127Vac / 9.8 - 7A / 50-60Hz
• 200-240Vac / 7 - 5A / 50-60Hz
• 200-240Vdc / 7 - 5A (for CCC only)
+12V • Max: 66.7A / Min: 0A (100-127Vac)
• Max: 83A / Min: 0A (200-240Vac)
• Max: 83A / Min: 0A (200-240Vdc)
12Vsb • Max: 2.1A / Min: 0A
Output Type • 25 Pairs Gold Finger Connector
Certification • Titanium Level
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec.





 • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
