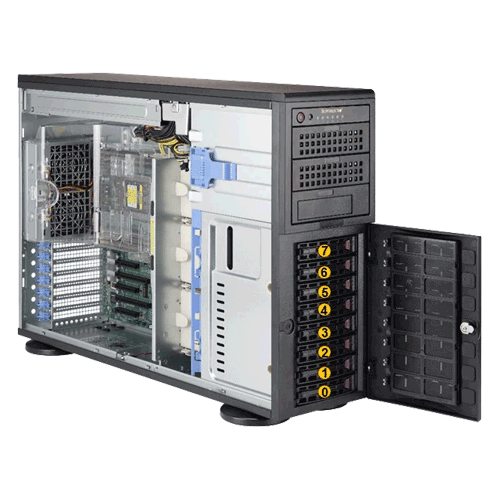

Supermicro Tower / 4U Rackmountable Server AMD EPYC AS -4023S-TRT ANgle

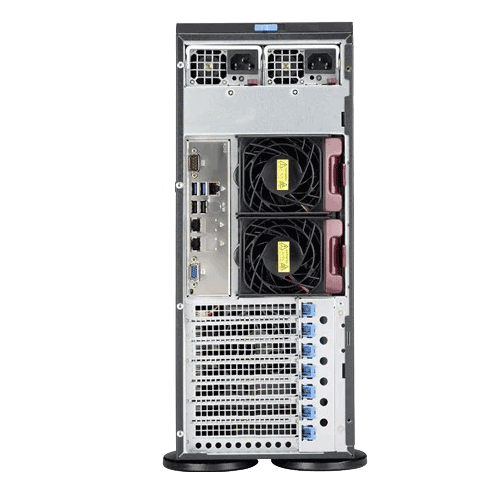

More Views

Supermicro Tower / 4U Rackmountable Server AMD EPYC AS -4023S-TRT

Description

Details

Supermicro Tower / 4U Rackmountable Server AMD EPYC AS -4023S-TRT

Product SKU
AS -4023S-TRT	• A+ Server 4023S-TRT

Motherboard
	• H11DSi-NT

Processor/Chipset
CPU	• Dual AMD EPYC™ 7000-series Processors • Socket SP3
Chipset	• System on Chip (SoC)
Cores	• Up to 32 Cores

System Memory
Memory Capacity	• 16 DIMM sockets • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs • 8-channel memory bus
Memory Type	• DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes	• 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage	• 1.2V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
SATA	• SATA3 (6 Gbps)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2500 BMC
Network Controllers	• 2 Intel® X550 10GBase-T Ethernet Controllers • 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA	• ASPEED AST2500 BMC

Expansion Slots
PCI-Express	• 2 PCI-E x16 slots • 3 PCI-E x8 slots
M.2	• Interface: 1 SATA/PCI-E 3.0 x2 • Form factor: 2280, 22110 • Key: M-key

Input/Output
SATA	• 10 SATA3 (6 Gbps) ports
LAN	• Dual 10G LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports (rear) • 2 USB 2.0 ports (rear)
VGA	• 1 VGA port
SAS	• 8 SAS3 ports support via optional Add-on Card
NVMe	• 2 NVMe support with optional cables
Others	• 1 COM port (rear) • 2 SATA DOM power connector • TPM 1.2 header

System BIOS
BIOS Type	• AMI 128Mb SPI Flash EEPROM
BIOS Features	• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 5.1 • USB Keyboard Support • SMBIOS 3.1.1

Chassis
Form Factor	• Tower / 4U Rackmountable
Model	• CSE-745BTS-R1K28BP2

Dimension and Weight
Height	• 17.8" (452mm)
Width	• 7" (178mm)
Depth	• 25.5" (647mm)
Gross Weight	• N.A.
Available Colors	• 25.5" (647mm)

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED / Fan fail LED / UID LED

Drive Bays
Hot-swap	• 8 hot-swap 3.5" Drive Bays: • 8 SATA3 by default • or 8 SAS3

Peripheral Drives
5.25"	• 3 peripheral 5.25" drive bays

Backplane
HDD Backplane	• Supports 8 SATA3 or 8 SAS3 HDD

System Cooling
Fans	• 3 internal hot-swap 9400 RPM fans • 2 external rear hot-swap 9400 RPM fans

Power Supply
	1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input	• 1000W Output @ 100-140V, 8-12A, 50-60Hz • 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output	• 1000W: +12V/83A; +5Vsb/4A • 1280W: +12V/106.7A, +5Vsb/4A
Certification	• 80Plus Platinum Certified

PC Health Monitoring
CPU	• Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT • CPU switching voltage regulator
FAN	• Up to 8-fan status tachometer monitoring • Up to eight 4-pin fan headers • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU Thermal Trip Support • Thermal control for 8x Fan connectors • I2C Temperature Sensing Logic
LED	• CPU / System Overheat LED
Other Features	• Chassis Intrusion Detection • Chassis Intrusion Header

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
