  • Supermicro 1U Rackmount SuperServer SYS-8014T-T

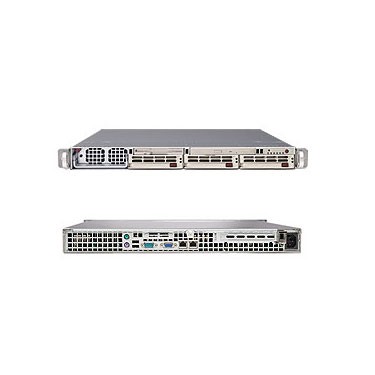

Supermicro 1U Rackmount SuperServer SYS-8014T-T

Call for price.
SKU:SYS-8014T-T

Quick Overview:

Key Features:
• Quad Dual-Core Intel® Xeon® Processor 7100 Series Support, up to 3.0 GHz,
   800 MHz FSB (CPUs must be 95W or less)
• Up to 64GB ECC DDR2 400 SDRAM
• 1 x8 (in x16) PCI-Express Slot
• Dual Intel® 82571 PCI-e Gigabit Ethernet Controllers
• 3 Total Hot-swap Drive Bays: 2x SATA Drive Support 1x Spare Drive Bay
• 1000W High-efficiency Power Supply
• IPMI 2.0 Support


Details

SuperServer SYS-8014T-T / SYS-8014T-TB 1U Rackmount

Supermicro SYS-8014T-T / SYS-8014T-TB 1U Rackmount with Intel® E8501 chipset, 2x 3.5" Hot-swap SATA Drives Supported, using Super X6QTE+ and SC818TQ-1000 Rackmount
Chassis


Product SKU
• SuperServer 8014T-T (Beige)
• SuperServer 8014T-TB (Black)
Motherboard
        Super X6QTE+
Processor/Cache
CPU

• Quad 604-pin FC-mPGA4 Sockets
• Supports up to four Intel® 64-bit Xeon® processor(s) of the same type below:
• Dual-Core Intel® Xeon® Processor 7100 Series with 2MB L2 Integrated Advanced Transfer Cache
• (CPUs must be 95W or less)

System Bus • 800 MHz system bus
OS Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Sixteen 240-pin DIMM sockets
• Supports up to 64GB ECC DDR2 400MHz memory
• Dual channel memory bus
• Memory must be populated in pairs and all be of same type
• Single-rank modules are recommended for 6+ DIMM support
Memory Type • DDR2 400MHz registered ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 512 MB, 1GB, 2GB, 4GB
Memory Voltage • 1.8V only
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 Single Device Data Correction (SDDC)
On-Board Devices
Chipset

• Intel® E8501 chipset
• MCH + ICH5R + PXH + 82571

SATA • ICH5R SATA Controller
• RAID 0, 1, JBOD support
IPMI • Support for Intelligent Platform Management Interface v.2.0
• (Optional: AOC-IPMI20-E)
Network Controllers  • Dual Intel® 82571 Single Port PCI-e Gigabit Controllers
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics • ATI ES1000 SVGA PCI video controller with 16 MB of video memory
Super I/O  • National 87427 chip
Input/Output
Serial ATA • Two Serial ATA ports
• Two SATA hard drives supported
IDE • Dual EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy • 1 Floppy controller; 1.44 MB
LAN • 2x RJ45 LAN ports
USB • 2x USB rear ports
• 2x USB internal headers
• USB 2.0 Compliant / 1.1 Compliant
VGA

• 1x VGA port

Keyboard/Mouse

• PS/2 keyboard and mouse ports

Serial Port/Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header

System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features

• Plug and Play (PnP)
• APM 1.2
• SMBIOS 2.3
• DMI 2.3
• PCI 2.2
• ACPI 1.0
• ACPI 1.0 (limited)
• BIOS Rescue Hot Keys
• USB Keyboard Support
• Hardware BIOS Virus Protection

Chassis
Form Factor • 1U Rackmount
Model SC818TQ-1000
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 27.75" (705mm)
Weight • 43 lbs (19.5 kg)
Available Color • Black, Beige
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power Status LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
Expansion Slot
PCI-Express

• 1 x8 (in x16) PCI-e Slot

Drive Bays
Hot Swap

• 2x 3.5" Hot-swap SATA Drives Supported
• 1x Spare Hot-swap bay

SATA BackPlane


• 1U SATA / SAS Backplane

Peripheral Drives
DVD-ROM

• Slim 8x DVD, 24x CD, DVD-ROM drive

System Cooling
Fans • 6x heavy-duty counter-rotating fans with optimal fan speed control
Shroud • 1x Air Shroud for CPU
Power Supply
  1000W AC-DC high-efficiency power supply w/ PFC + PDB
AC Voltage • 100 - 240V, 50 - 60Hz, 15 - 7Amp
+5V stand by • 4 Amp
+12V • 83 Amp
With Power
Distributor
• +5V: 20 Amp
• +3.3V: 20 Amp
• -12V: 0.6 Amp
PC Health Monitoring
CPU • Monitors for CPU Cores, +3.3V, +5V, ±12V & +3.3V Standby
• CPU Core 5-Phase-switching voltage regulator with auto-sense from 0.86V-1.63V
FAN • Total of nine 4-pin and four 3-pin fan headers
• 9x fans with status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Support for 3-pins (w/ speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 6x Fan Connectors
• I2C Temperature Sensing Logic
• Thermal Monitor 2 support
LED • CPU Overheat LED
Other Features • Chassis intrusion detection
• Chassis intrusion header
• SDDC
Operating Environment
Environmental Specs

• Operating Temperature: 10° to 35° C (50° to 95°F)
• Non-operating Temperature: -40° to 70° C (-40° to 158° F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
