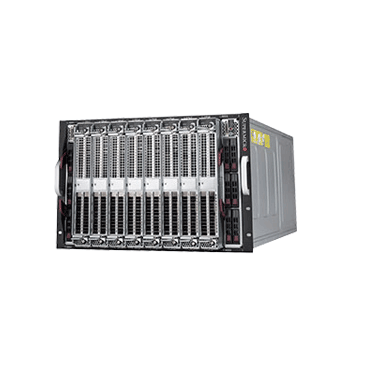

Supermicro SYS-7088B-TR4FT 7U Rackmountable NVMe Server
Supermicro SYS-7088B-TR4FT 7U Rackmountable NVMe Server Platform with 12 Hot-swap 2.5" SAS3 drive bays (w/ RAID cards), Up to 16 U.2 NVMe option available. 5x 1600W Redundant (N+1) Power
Supplies, Titanium Level (96%)
Product SKU |
|
|---|---|
| SYS-7088B-TR4FT | • SuperServer 7088B-TR4FT (Black) |
Motherboard |
|
|---|---|
| Super X10OBi-CPU | |
Processor / Cache |
|
|---|---|
| CPU |
• Intel® Xeon® processor E7-8800 v4/v3 family (up to 24 Cores and 165W TDP) • Socket R1 (LGA 2011) |
| Cache | • Up to 60 MB |
| System Bus | • QPI up to 9.6 GT/s |
System Memory |
|
|---|---|
| Memory Capacity | • 192x 288-pin DDR4 DIMM slots • Supports up to 24TB DDR4 ECC 3DS LRDIMM in 192 DIMM slots |
| Memory Type | • 2400*/2133*/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs * Run up to 1866MHz depend on setting. |
| DIMM Size | • 128GB, 64GB, 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On Board Devices |
|
|---|---|
| Chipset | • Intel® C602J chipset |
| Storage | • Intel C602J including 2 SATA3 (SATA DOM) + 4 SATA2(2 M.2, 2 HDD) |
| Network Controllers (via AOM) |
• 4-port 10GBase-T Ethernet SIOM (Intel® X550 controller) |
| IPMI (via AOM) |
• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED 2400 |
| Graphics | • ASPEED AST2400 BMC |
Input / Output |
|
|---|---|
| Storage | • 2 SATA2 (HDD) ports • 2 SATA2 (M.2) ports • 2 SATA3 (SATADOM) ports |
| LAN | • 4 10GBase-T ports via SIOM |
| USB | • 2 USB 2.0 ports via KVM port |
| Serial Port / Header | • 1 Fast UART 16550 ports: 1 front via KVM port |
System Bios |
|
|---|---|
| Bios Type | • 16MB SPI Flash EEPROM with AMI® BIOS |
| Bios Features | • Plug and Play (PnP)
|
Chassis |
|
|---|---|
| Form Factor |
• 7U Rackmountable • Rackmount Kit: Comes with the system |
| Model | • CSE-718TQC-R4800B |
Dimension and Weight |
|
|---|---|
| Height | • 12.2" (310mm) |
| Width | • 17.63" (448mm) |
| Depth | • 28.87" (733mm) |
| Gross Weight | • 208 lbs (93.35 kg) |
| Available Color | • Black |
Drive Bays |
|
|---|---|
| Hot-swap |
• 12 Hot-swap 2.5" SAS3 drive bays (w/ RAID cards) • 20x 2.5" or 6x 3.5" internal drive bays (w/ RAID cards) |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 15 PCI-E 3.0 FH slots total • 8 PCIE 3.0 x16 + 7 PCIE 3.0 x8 (in x16) slots • Up to 16 U.2 NVMe option available |
Backplane |
|
|---|---|
| • 2x 6-port 12G backplane supports 6x 2.5" SAS3/SATA3 HDD/SSD | |
System Cooling |
|
|---|---|
| Fans | • 8x 9cm Hot-Swap Counter-rotating Rear Fans |
Power Supply |
|
|---|---|
| • 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | • 1000W/1600W |
| Dimension (W x H x L) |
• 73.5 x 40 x 203 mm |
| Input | • 100-127Vac / 13 - 9A / 50-60Hz • 200-240Vac / 10 - 8A / 50-60Hz |
| +12V | • Max: 83.3A / Min: 0A (100-127Vac) • Max: 133A / Min: 0A (200-240Vac) |
| 12Vsb | • Max: 2.1A / Min: 0A |
| Output Type | • 25 Pairs Gold Finger Connector |
| Certification | • Titanium Level |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V |
| FAN | • 4-pin fan headers with tachometer status monitoring • Low noise fan speed control mode |
| Temperature | • Monitoring for CPU and system environment • Thermal Control for 9x fan connectors |
| Other Features | • Chassis intrusion detection |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) |
