Supermicro SYS-7044A-iB

More Views

  • Supermicro SYS-7044A-iB

Supermicro SYS-7044A-iB Rackmountable/Tower

Call for price.
SKU:SYS-7044A-iB

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Support up to 3.60 GHz
• Up to 16GB DDR 333 SDRAM (or) Up to 32GB DDR 266 SDRAM
• 1 (x16) & 1 (x4) PCI-Express, 1 x 64-bit 133MHz
   PCI-X, 2 x 64-bit 100MHz PCI-X, 1 x 32-bit 33MHz PCI Slots
• Intel® 82545GM Single-port Gigabit Ethernet Controller
• Zero Channel RAID Support
• 8x 3.5" Hot-swap Ultra320 SCSI Drive Bays
• 645W Low-Noise Power Supply
• Tower or Rackmount
• PWM Fan Speed Control


Details

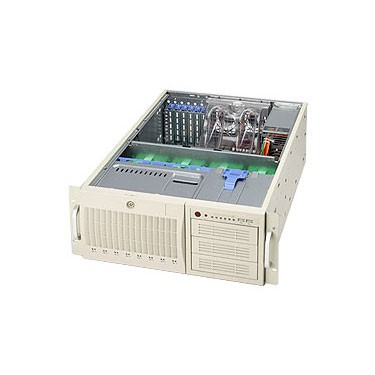

Superworkstation SYS-7044A-i / SYS-7044A-iB Rackmountable/Tower

Supermicro SYS-7044A-i / SYS-7044A-iB 4U Rackmountable/Tower with 645W Low-Noise Power Supply, Intel® E7525 chipset, 2x 4 IDE Hard Drive Carrier (Can fit up to 8 drives), using
Supermicro Super X6DAE-G Server Motherboard and SC743i-645 4U Rackmountable Tower Chassis.
Product SKU
SYS-7044A-i • SuperServer 7044A-i (Beige)
SYS-7044A-iB • SuperServer 7044A-iB (Black)
Motherboard
        Super X6DAE-G
Processor/Cache
CPU

• Dual 604-pin FC-mPGA4 Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Xeon (Nocona) CPU with 1MB L2 Integrated Advanced Transfer Cache, up to 3.60 GHz
• Xeon (Irwindale) CPU with 2MB L2 Integrated Advanced Transfer Cache, up to 3.80 GHz
• Xeon LV (Low Voltage) CPU, up to 2.8 GHz
System Bus • 800 MHz system bus
OS Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Eight 184-pin DIMM slots
• Supports up to 16 GB DDR 333 MHz memory or
• Supports up to 32 GB DDR 266 MHz memory
• Dual channel memory bus
• Memory must be populated in pairs
• Single-rank modules are recommended for 6+ DIMM support
Memory Type

• DDR333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes • 256 MB, 512 MB, 1GB, 2GB, 4GB**
Memory Voltage • 2.5 V only
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 Single Device Data Correction (SDDC)
On-Board Devices
Chipset

• Intel® E7525 chipset
• MCH + ICH5R + PXH +82545GM
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• (Optiona)
Network Controllers

• Intel® 82545GM Single Port Gigabit Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio

• AC'97 audio CODEC with high quality 6-channel sound
Super I/O

• Winbond 83627HF chip
Expansion Slot
PCI-Express • 1 (x16) slot
• 1 (x4) using (x16 slot)
PCI-X

• 1x 64-bit 133MHz PCI-X (3.3V) slot
• 2x 64-bit 100MHz PCI-X (3.3V) slots
PCI • 1x 32-bit 33MHz PCI (5V) slot
Input/Output
IDE

• Dual EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy

• 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
LAN

• 1x RJ45 LAN port
USB

• 4x USB rear ports
• 4x USB internal headers
• USB 2.0 Compliant / 1.1 Compliant
Audio

• 1x Line In / Line Out / Microphone ports
Keyboard/Mouse

• PS/2 keyboard and mouse ports
Serial Port

• 2 Fast UART 16550 serial ports
Parallel Port

• 1 ECP/EEP parallel port














Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit (CSE-PT26)
Model • SC743i-645
Dimension and Weight
Height • Tower: 17.2" (437mm) / Rackmount: 7.0" (178mm)
Width • Tower: 7.0" (178mm) / Rackmount: 17.2" (437mm)
Depth • 25.5" (648mm)
Gross Weight • 61 lbs (27.7kg)
Available Color • Beige / Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• Power Fail LED
Ports • 2x USB Ports
Drive Bays
Hot-swap

• 2x 4 IDE Hard Drive Carrier (Can fit up to 8 drives)
Peripheral Bay(s)
[90oRotatable]		 • 2x 5.25" Peripheral Drive Bay
• 1x 5.25" Bay For Floppy Drive
Peripheral Drives
Floppy

• Panasonic 3.5" 1.44MB Floppy Drive
SCSI Backplane


• Single Channel SCSI Backplane w/ SAF-TE
System Cooling
Fans

• 4x 5000 RPM Hot-swappable PWM Cooling Fans
Power Supply
  645W Low-Noise AC power supply with PFC [ 24-pin, (4-pin, 8-pin) = 12V ]
AC Voltage • 100 - 240V, 50 - 60Hz, 11 - 5Amp
DC Output • 5V + 3.3V ≤ 160W
+5V • 30.0 Amp
+5V standby • 4.0 Amp
+12V • 46.0 Amp
-12V • 0.6 Amp
+3.3V • 30.0 Amp
PC Health Monitoring
CPU

• Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby
• CPU Core 4-Phase-switching voltage regulator with auto-sense from 1.3V-1.5V
• Adjustable CPU clock frequency ratio settings (via BIOS)
FAN • Total of eight 4-pin fan headers
• 8x fans with tachometer status monitoring
• Status monitor with firmware/software on/off control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connector
Temperature • Monitoring for CPU, chassis, environment
• CPU thermal trip support
• Thermal Monitor 2 support
LED • CPU Overheat LED
• System Overheat LED
• Suspend-state indicator LED
Other Features

• Chassis intrusion detection
• Chassis intrusion header
• SDDC

System Bios
Bios Type

• 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features • Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• ACPI 1.0
• Fan Speed Control
