  • Supermicro SYS-7043M-8B Rackmountable/Tower

Supermicro SYS-7043M-8B Rackmountable/Tower

Call for price.
SKU:SYS-7043M-8B

Quick Overview:

Key Features:
• Dual Intel® Xeon® Support up to 3.20 GHz
• Up to 12GB DDR 266/200 SDRAM
• 3x 64-bit, 3x 32-bit PCI-X expansion slots
• 1x Gigabit, 1x 10/100 Ethernet Port
• Zero Channel RAID Support
• 7 x 3.5" hot-swap Ultra320 SCSI Drive Bays
• 450W Power Supply with Redundant Cooling Feature


Details

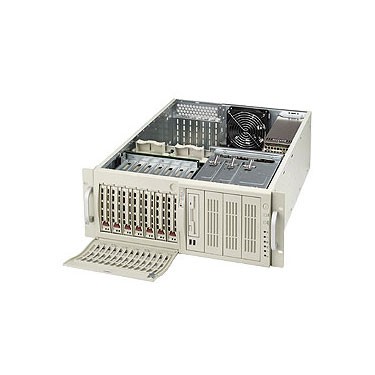

Superworkstation SYS-7043M-8 / SYS-7043M-8B Rackmountable/Tower

Supermicro SYS-7043M-8 / SYS-7043M-8B 4U Rackmountable/Tower with 450W Power Supply with Redundant Cooling Feature, Intel® E7501 chipset, 7 x 3.5" hot-swap Ultra320 SCSI
Drive Bays supports Super X5DMS-8GM Server Motherboard and SC742S-450 Rackmountable Tower Chassis.
Product SKU
• SuperServer 7043M-8 (Beige)
• SuperServer 7043M-8B (Black)
Motherboard
        Super X5DMS-8GM
Processor/Cache
CPU

• Dual mPGA604 ZIF Sockets
• Supports up to two Intel® Xeon® processor(s) with 1MB of integrated Advanced Transfer Cache up to 3.20GHz

System Bus • 533MHz/400MHz system bus
System Memory
Memory Capacity • Six 184-pin DIMM sockets
• Supports up to 12 GB DDR266/200 memory
• Dual channel memory bus
• Memory must be populated in pairs
Memory Type

• DDR266/200 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs

On-Board Devices
Chipset

• Intel® E7501 chipset
• MCH + ICH3-S + P64H2

SCSI

• Adaptec AIC-7902 Controller for Dual-Channel Ultra320 SCSI (only Single-channel w/ Backplane)

RAID

• Support for Zero-Channel RAID w/ ZCR Card (Card NOT included)

IPMI

• Support for Intelligent Platform Management Interface v.1.5 (Optional)

Network Controllers

• 1x Intel® 82545EM Gigabit Ethernet
• 1x Intel® 82551 10/100M Ethernet
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Graphics

• ATI Rage XL SVGA PCI video controller with 8 MB of video memory

Input/Output
PCI

• 1x 64-bit 133/100/66MHz PCI-X (3.3V) slot
• 2x 64-bit 66MHz PCI-X (3.3V) slots
• 3x 32-bit 33MHz PCI-X (5V) slots
• 1x VXB (Virtual Extended Bus) slot

IDE

• Dual EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100

USB

• Up to 5 USB ports

Serial Port

• 2 Fast UART 16550 serial ports

Parallel Port

• 1 ECP/EEP parallel port

Floppy

• 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support

Keyboard/Mouse

• PS/2 keyboard and mouse ports

System Bios
Bios Type • 4Mb Flash EEPROM with Phoenix® BIOS
Bios Features

• Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• ACPI 1.0
• BIOS rescue hot keys
• Hardware BIOS virus protection





















Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit (CSE-PT26)
Model SC742S-450
Dimension and Weight
Height • Tower: 17.8" (452mm) / Rackmount: 7.0" (178mm)
Width • Tower: 7.0" (178mm) / Rackmount: 17.8" (452mm)
Depth • 23.8" (605mm)
Gross Weight • 49 lbs (22.3kg)
Available Color • Beige / Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• Power Fail LED
Drive Bays
Hot-Swap • 7x 3.5"SCA Ultra320/160 Hot-swap Drives
Peripheral Bay(s) • 3x 5.25" Peripheral Drive Bay
• 1x 5.25" Bay For Floppy Drive
SCSI Backplane


• Single Channel SCSI Backplane w/o SAF-TE

System Cooling
Fans

• 2x 90mm Hot-swappable Fans
• 1x 120mm Rear Exhaust Fan

Power Supply
  450W AC power supply (w/ PFC) with Redundant Cooling Feature
AC Voltage • 100 - 240V, 50/60Hz, 10 Amp
DC Output • 5V + 3.3V ≤ 160W
• 12V + 5V + 3.3V ≤ 430W
+5V • 26.0 amp
+5V standby • 2.0 Amp
-5V • 0.5 Amp
+12V • 30.0 Amp
-12V • 1.0 Amp
+3.3V • 30.0 Amp
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5, ±12V, 3.3V Standby
• CPU Core 3-Phase-switching voltage regulator w/ auto-sense from 1.4V-3.5V
• Adjustable CPU clock frequency ratio settings (via BIOS)

FAN • Total of six 3-pin fan headers
• 4x fans with tachometer monitoring
• Overheat backup fan connector
• Status monitor with firmware/software on/off control
Temperature • Monitoring for CPU, chassis, environment
• CPU thermal trip support
LED • CPU Overheat LED
• System Overheat LED
• Suspend-state indicator LED
Other Features

• Chassis intrusion detection (through LDCM)
• Chassis intrusion header
• Chipkill support
