  • Supermicro SYS-7034A-iB Tower

Supermicro SYS-7034A-iB Tower

Call for price.
SKU:SYS-7034A-iB

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Support
• Up to 12GB DDR 333 SDRAM Up to 24GB DDR 266
   SDRAM
• 1 (x16) & 1 (x8) PCI-Express, 2 x 64-bit 66MHz PCI-X,
   2 x 32-bit 33MHz PCI Slots
• Intel® 82541GI Gigabit Ethernet Controller
• 4 x Internal Hard Drive Bays
• 645W Low Noise Power Supply
• PWM Fan Speed Control


Details

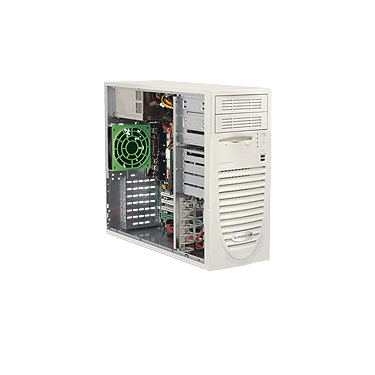

Supermicro SYS-7034A-i / SYS-7034A-iB Mid Tower

Supermicro SYS-7034A-i / SYS-7034A-iB Mid Tower with 645W Low Noise Power Supply, Intel® E7525 chipset, 4x Internal IDE Drive Carriers, supports Super X6DAL-G Server
Motherboard and SC733i-645 Mid Tower Chassis.
Product SKU
• SuperServer 7034A-i (Beige)
• SuperServer 7034A-iB (Black)
Motherboard
        Super X6DAL-G
Processor/Cache
CPU

• Dual 604-pin FC-mPGA4 Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Xeon (Nocona) CPU with 1MB L2 Integrated Advanced Transfer Cache, up to 3.60 GHz
• Xeon (Irwindale) CPU with 2MB L2 Integrated Advanced Transfer Cache, up to 3.80 GHz
• Xeon LV (Low Voltage) CPU, up to 2.8 GHz

System Bus • 800MHz system bus
System Memory
Memory Capacity • Six 184-pin DIMM slots
• Supports up to 12 GB DDR 333
• Supports up to 24 GB DDR 266
• Dual channel memory bus
• Memory must be populated in pairs
Memory Type

• DDR333/266 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs

DIMM Sizes • 256 MB, 512 MB, 1GB, 2GB, 4GB**
Memory Voltage • 2.5 V only
On-Board Devices
Chipset

• Intel® E7525 chipset
• MCH + 6300ESB + 82541GI

SATA

• 6300ESB support for 2x SATA ports
• RAID 0, 1, and JBOD support

Network Controllers

• 1x Intel® 82541GI Gigabit Ethernet
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Audio

• AC'97 audio CODEC with high quality 6-channel sound

Expansion Slots
PCI-Express

• 1 (x16) slot
• 1 (x8) slot

PCI-X

• 2x 64-bit 66MHz PCI-X (3.3V) slot

PCI

• 2x 32-bit 33MHz PCI (5V) slot

Input/Output
Serial ATA

• Two Serial ATA ports
• Two SATA hard drives supported

IDE

• Dual EIDE channels support up to four UDMA / IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100

Floppy

• 1 Floppy controller; 1.44 MB support

LAN

• 1x RJ45 LAN port

USB

• Up to 4 USB 2.0 ports
• 2x ports, 2x headers

Audio

• 1x Line In / Line Out / Microphone ports

Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Port

• 2 Fast UART 16550 serial ports

Parallel Port   • 1 ECP/EEP parallel header (CBL-081)
System Bios
Bios Type • 8Mb Flash EEPROM with AMI® BIOS
Bios Features

• Plug and Play (PnP)
• SMBIOS 2.3
• APM 1.2
• DMI 2.1
• ACPI 2.0







Chassis
Form Factor • Mid Tower
Model SC733i-645
Dimension and Weight
Height • 7" (178 mm)
Width • 16.8" (427 mm)
Depth • 20.9" (531 mm)
Gross Weight • 40 lbs (18.1 kg)
Available Color • Beige, Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LEDs • Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED
Ports • 2x Front side USB ports (USB 2.0 ready)
Drive Bays
Drive Carrier • 4x Internal IDE Drive Carriers
Peripheral Bay(s) • 2x 5.25" peripheral drive bay
• 1x 3.5" bay for floppy drive
Peripheral Drives
Floppy

• TEAC 3.5" 1.44MB Floppy Drive

System Cooling
Fans

• 1x 12cm PWM rear exhaust fan
• 1x 9cm PWM fan

Power Supply
  645W Low-Noise AC power supply with PFC [ 24-pin, (4-pin, 8-pin) = 12V ]
AC Voltage • 100 - 240V, 50 - 60Hz, 11 - 5Amp
DC Output • 5V + 3.3V ≤ 160W
+5V

• 30.0 Amp

+5V standby

• 4.0 Amp

+12V

• 46.0 Amp

-12V

• 0.6 Amp

+3.3V

• 30.0 Amp

PC Health Monitoring
CPU • Monitors for CPU Cores (0.865V to 1.6V), +3.3V, +5V, ±12V, 5V Standby
• CPU Core 4-Phase-switching voltage regulator with auto-sense from 1.3V-1.5V
• Adjustable CPU clock frequency ratio settings (via BIOS)
FAN

• Total of six 4-pin fan headers
• 6x fans with tachometer monitoring
• Status monitor with firmware/software on/off control
• Low noise fan speed control

Temperature • Monitoring for CPU, chassis, environment
• CPU thermal trip support
LED • CPU Overheat LED
• System Overheat LED
• Suspend-state indicator LED
Other Features

• Chassis intrusion detection
• Chassis intrusion header
• SDDC
