  • Supermicro SYS-6026T-URF4+ 2U Rackmount

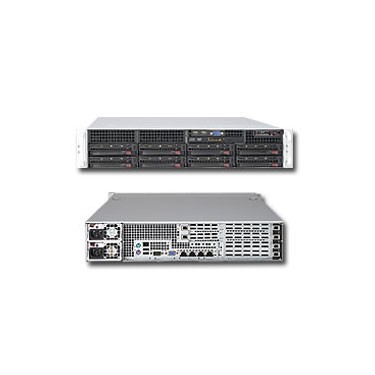

Supermicro SYS-6026T-URF4+ 2U Rackmount

Call for price.
SKU:SYS-6026T-URF4+

Quick Overview:

Key Features:
• Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s
• 288GB** DDR3 1333/ 1066/ 800MHz ECC Registered DIMM /
   48GB Unbuffered DIMM
• Left: (Full-height / Full-length) 1 (x8) PCI-E 2.0, 2 (x4) PCI-E 2.0
   and UIO slot
• Right: 2 (x4) PCI-E 2.0 slots
• 2x Intel® 82576 Dual-port Gigabit Ethernet Controllers (4 ports)
• 8x 3.5" Hot-swap Drives Trays
• 920W High-efficiency Platinum Level Redundant Power Supply
• Integrated IPMI 2.0 with Dedicated LAN

Details

SuperServer SYS-6026T-URF4+ 2U Rackmount

Supermicro SYS-6026T-URF4+ 2U Rackmount Barebone with 920W High-efficiency Platinum Level Redundant Power Supply, Intel® 5520 (Tylersburg) chipset, 8x 3.5" SAS / SATA
Hot-swap drive bays using Supermicro Super X8DTU-LN4F+ Motherboard and CSE-829TQ-R920UB 2U Chassis.

Product SKU
• SuperServer 6026T-URF4+ (Black)
Motherboard
        Super X8DTU-LN4F+
Processor/Cache
CPU

• Dual 1366-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Intel® Xeon® Processor X5600/E5600/L5600 Series (Westmere) 40W - 130W
• Intel® Xeon® Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W

QPI

• up to 6.4 GT/s

System Memory
Memory Capacity • 18x 240-pin DIMM slots
• Supports up to 288GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
• Supports up to 48GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
• Memory Mirroring supported
Memory Type • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage • 1.5 V / 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset • Intel® 5520 (Tylersburg) chipset
• ICH10R
SATA • Intel ICH10R SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• 2x Intel® 82576 Dual-Port Gigabit Ethernet Controllers (4 ports)
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT 3 support for fast, scaleable, and reliable networking
• VMDq support for better performance of virtualization
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• Matrox G200eW

Super I/O  • Winbond 83827HF chip
Expansion Slot
Left Slot • 1 Unversal I/O (UIO) Slot
• 1 (x8) PCI-E 2.0 slot
• 2 (x4) PCI-E 2.0 slots
Right Slot • 2 (x4) PCI-E 2.0 slots
Input/Output
Serial ATA • Six Serial ATA ports
• Six SATA hard drives supported
LAN • 4x RJ45 LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 2x USB rear ports
• 1x USB on-board
• 5x USB internal headers
• Total 8 USB 2.0 Compliant
VGA • 1 VGA port
Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Port / Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header (Option)

Chassis
Form Factor • 2U Rackmount
Model CSE-829TQ-R920UB
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.25" (438mm)
Depth • 27.75" (705mm)
Weight • 55 lbs (24.9kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• Power fail LED
Ports • 2x USB Ports
Drive Bays
Hot-Swaps • 8x 3.5" SAS / SATA Hot-swap drive trays
Peripheral Drives
DVD-ROM • Slim 8x DVD, 24x CD, DVD-ROM drive
SAS / SATA Backplane
  • 1x 2U SAS / SATA backplane
System Cooling
Fans • 4x 80mm 6300 RPM fans
Shroud • 1x Air Shroud
Power Supply with Power Distributor
  920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input • 100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output • 4 Amp @ +5V standby
• 75 Amp @ +12V
Certification • Platinum Certified
PC Health Monitoring
CPU • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
• 6-Phase-switching voltage regulator
FAN • Total of eight fan headers supporting up to 8 fans
• Eight 4-pin fan headers
• 8x fans with tachometer status monitoring
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for 8x fan connectors
• PECI
Other Features • Chassis intrusion detection
• Chassis intrusion header
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec.

• Operating Temperature: 5°C to 35°C (41°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
