Details

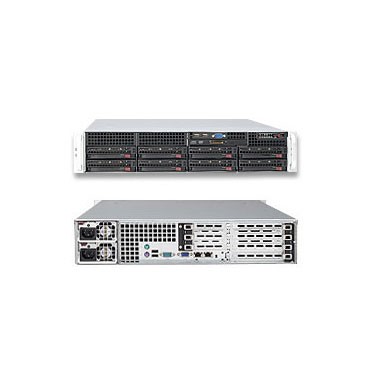

drive bays using Supermicro Super X8DTU-F Motherboard and SC825TQ-R720UB 2U Chassis.
Product SKU |
|
|---|---|
| SYS-6026T-URF | • SuperServer 6026T-URF (Black) |
Motherboard |
|
|---|---|
| Super X8DTU-F | |
Processor/Cache |
|
|---|---|
| CPU | • Dual 1366-pin LGA Sockets |
| QPI | • up to 6.4 GT/s |
System Memory |
|
|---|---|
| Memory Capacity |
• 12x 240-pin DIMM slots • Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory • Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory • Memory Mirroring supported |
| Memory Type | • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 1GB, 2GB, 4GB , 8GB , 16GB |
| Memory Voltage | • 1.5 V / 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® 5520 (Tylersburg) chipset • ICH10R + IOH-36D |
| SATA | • Intel ICH10R SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | • Intel® 82576 Dual-Port Gigabit Ethernet Controller |
| Graphics | • Matrox G200eW |
| Super I/O | • Winbond 83827HF chip |
Expansion Slot |
|
|---|---|
| Left Slot | • 1 Unversal I/O (UIO) Slot AND • 3 (x8) PCI-E 2.0 slots |
Input/Output |
|
|---|---|
| Serial ATA | • Six Serial ATA ports • Six SATA hard drives supported |
| LAN |
• 2x RJ45 LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 2x USB rear ports • 2x USB on-board • 4x USB internal headers • Total 8 USB 2.0 Compliant |
| VGA | • 1 VGA port |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
| Serial Port / Header | • 1 Fast UART 16550 serial port |
System Bios |
|
|---|---|
| Bios Type | • 32Mb SPI Flash EEPROM with AMI® BIOS |
| Bios Features | • Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support |
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • SC825TQ-R720UB |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.5" (648mm) |
| Weight | • 55 lbs (24.9kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • Power fail LED |
| Ports | • 2x USB Ports |
Drive Bays |
|
|---|---|
| Hot-Swaps | • 8x 3.5" SAS / SATA Hot-swap drive trays |
Peripheral Drives |
|
|---|---|
| DVD-ROM | • Slim 8x DVD, 24x CD, DVD-ROM Drive |
SAS / SATA Backplane |
|
|---|---|
| • 1x 2U SAS / SATA backplane | |
System Cooling |
|
|---|---|
| Fans | • 3x 80mm 6300 RPM fans |
| Shroud | • 1x Air Shroud |
Power Supply with Power Distributor |
|
|---|---|
| 720W (1+1) Redundant high-efficiency power supply with PMBus | |
| AC Input | • 100-240 V, 50-60 Hz, 4-9 Amp |
| DC Output | • 3 Amp @ +5V standby • 59 Amp @ +12V |
| With Power Distributor |
• +5V: 30 Amp • +3.3V: 24 Amp • -12V: 0.6 Amp |
| Certification | • Gold Certified |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. • 6-Phase-switching voltage regulator |
| FAN | • Total of eight fan headers supporting up to 8 fans • Eight 4-pin fan headers • 8x fans with tachometer status monitoring • Support 3-pin fans (w/o speed control) • Low noise fan speed control |
| Temperature | • Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI |
| Other Features | • Chassis intrusion detection • Chassis intrusion header |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
5°C to 35°C (41°F to 95°F)
|
