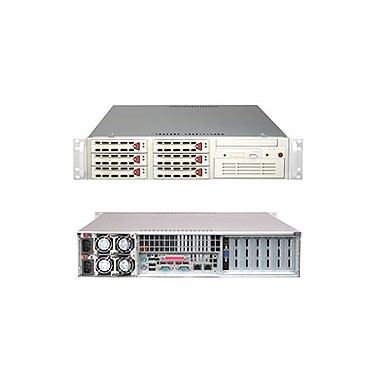

SuperServer SYS-6024H-TR / SYS-6024H-TRB 2U Rackmount

Supermicro SYS-6024H-TR / SYS-6024H-TRB 2U Rackmount Barebone with Redundant 500W power supply, Intel® E7520 chipset, 6x 3.5" Hot-swap drive trays using Supermicro
Super X6DHT-Gmother board and SC823T-R500LP Chassis.

Product SKU
SYS-6024H-TR • SuperServer 6024H-TR (Beige)
SYS-6024H-TRB • SuperServer 6024H-TRB (Black)
Motherboard
        Super X6DHT-G
Processor/Cache
CPU

• Dual 604-pin FC-mPGA4 Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Xeon (Nocona) CPU with 1MB L2 Integrated Advanced Transfer Cache, up to 3.60 GHz
• Xeon (Irwindale) CPU with 2MB L2 Integrated Advanced Transfer Cache, up to 3.80 GHz
• Xeon LV (Low Voltage) CPU, up to 2.8 GHz
System Bus

• 800 MHz system bus
OS Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Eight 184-pin DIMM sockets
• Supports up to 16 GB DDR 333MHz memory, or
• Supports up to 32 GB DDR 266MHz memory
• Dual channel memory bus
• Memory must be populated in pairs
• Single-rank modules are recommended for 6+ DIMM support
Memory Type • DDR333/266 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes • 256 MB, 512 MB, 1GB, 2GB, 4GB**
Memory Voltage • 2.5 V only
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 Single Device Data Correction (SDDC)
• Memory Sparing / Mirroring
On-Board Devices
Chipset • Intel® E7520 chipset
• MCH + 6300ESB + PXH/V +82541GI
SATA • Marvell® 88SX6081 8-port SATA Controller
• RAID 0, 1, JBOD support
SATA • 6300ESB 2-port SATA Controller
• RAID 0, 1, JBOD support
Zero Channel RAID

• Support for Zero-Channel RAID
• (Card not included)
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• (Optional: AOC-IPMI20-E)

Network Controllers

• 2x Intel® 82541GI Single Port Gigabit Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics

• ATI Rage XL SVGA PCI video controller with 8MB of video memory
Super I/O  • Winbond 83627HF chip
Clock Generator • CK409
Input/Output
Serial ATA • Ten Serial ATA ports
• Up to ten SATA hard drives supported
• 6300ESB - 2 SATA ports
• Marvell 885X6081- 8 SATA ports
IDE • Dual EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy • 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
ZCR • Adaptec 2020SA (Card not included)
LAN • 2x RJ45 LAN port
USB • 2x USB rear ports
• 2x USB internal headers
• USB 2.0 Compliant / 1.1 Compliant
VGA • 1x VGA port
Keyboard / Mouse

• PS/2 keyboard and mouse ports
Serial Port / Header

• 2 Fast UART 16550 serial ports
Parallel Port

• 1 ECP/EEP parallel port
• 1 parallel port header
























Chassis
Form Factor • 2U Rackmount
Model • SC823T-R500LP
Dimension and Weight
Height • 3.5" (89mm)
Width • 16.8" (426mm)
Depth • 25.6" (650mm)
Weight • 55.5 lbs (25.2kg)
Available Color • Beige,Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• Power fail LED
Ports • none
Expansion Slots
  • 6x low-profile expansion slots
PCI-Express • 2 (x8) slot
PCI-X • 1x 64-bit 133MHz PCI-X (3.3V) slot
• 2x 64-bit 100MHz PCI-X (3.3V) slots
PCI • 1x 32-bit 33MHz PCI (5V) slot
Drive Bays
Hot-swap • 6x 3.5" Hot-swap drive trays
Peripheral Bay(s)  • 1x 5.25" full-height peripheral bay
Peripheral Drives
Floppy • Panasonic 3.5" 1.44MB Floppy Drive
CD-Rom • TEAC Slim 24x CD-ROM drive
SATA Backplane
  • 1x 2U SATA backplane
System Cooling
Fans • 4x 80mm 6300 RPM fans Cooling redundancy with fan shroud
Power Supply
  500W (1 + 1) Redundant AC power supply with PFC [ 24-pin, (8-pin, 4-pin)=12V) ]
AC Voltage • 100 - 240V, 50/60Hz, 10 Amp
DC Output • 5V + 3.3V ≤ 160W
• 12V Total ≤ 39 Amp
+5V • 30.0 amp
+5V standby • 2.0 Amp
+12V1 • 15.0 amp
+12V2 • 15.0 amp
+12V3 • 18.0 amp
-12V • 1.0 Amp
+3.3V • 21.0 amp
PC Health Monitoring
CPU • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V & +5V Standby
FAN • Four 4-pin fan headers
• Four 3-pin fan headers
• 8x fans with status tachometer monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
• Support 3-pin fans
• Pulse Width Modulated (PWM) fan connector
Temperature • Monitoring for CPU, chassis environment
• CPU thermal trip support
• Thermal control for 8x fan connectors
• PC temperature sensing logic
• Thermal Monitor 2 (TM2) support
LED • CPU / System Overheat LED
• Suspend-state indicator LED
Other Features • Chassis intrusion detection
• Chassis intrusion header
• SDDC
System Bios
Bios Type

• 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features.

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 1.0
• USB Keyboard support
