Supermicro SYS-6018R-WTRT 1U Rackmount SuperServer

Call for price.

SKU:SYS-6018R-WTRT

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
• 2x PCI-E 3.0 x16 (FHHL) - AOC support
• Intel® X540 Dual port 10GBase-T
• 4x 3.5" Hot-swap SAS/SATA HDD Bays for Customizable Storage
• I/O ports: 2x SuperDOM, 1x VGA, 1x Serial, 6x USB 3.0 (4 rear)
• 700W Redundant Power Supplies Platinum Level High-efficiency

Description

Details

Supermicro SYS-6018R-WTRT

Supermicro 6018R-WTRT 1U Rackmount Server Barebone with 700W Redundant Power Supplies Platinum Level High-efficiency and 4x 3.5" Hot-swap SAS/SATA HDD Bays for
Customizable Storage using Supermicro Super X10DRW-iT Server Motherboard and 1U CSE-815TQ-R706WB Server Rackmount Chassis.

Product SKU
SYS-6018R-WTRT	• SuperServer 6018R-WTRT (Black)

Motherboard
	Super X10DRW-iT

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
Note	• † BIOS version 2.0 or above is required
	• Please contact WillJaya Technical support for additional information

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 via Intel® C612; RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Connectivity	• Intel® X540 Dual Port 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 1GBASE-T, RJ45 output • 1x Realtek RTL8211E PHY (dedicated IPMI)
Video	• ASPEED AST2400 BMC

Input/Output
SATA/SAS	• 10x SATA3 (6Gbps) ports
LAN	• 2x RJ45 10GBase-T ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 6x USB 3.0 ports (4 rear + 2 via header)
Video	• 1x VGA port
Serial Header Port	• 1x Header
DOM	• 2x SuperDOM (Disk on Module) ports

Management
Software	• SuperDoctor® 5 • Watch Dog • NMI • IPMI 2.0 • Intel Node Manager
Power Configuration	• ACPI / APM Power Management • Power-on mode for AC power recovery

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-815TQ-R706WB

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 25.6" (650mm)
Gross Weight	• 39 lbs (17.7 kg)

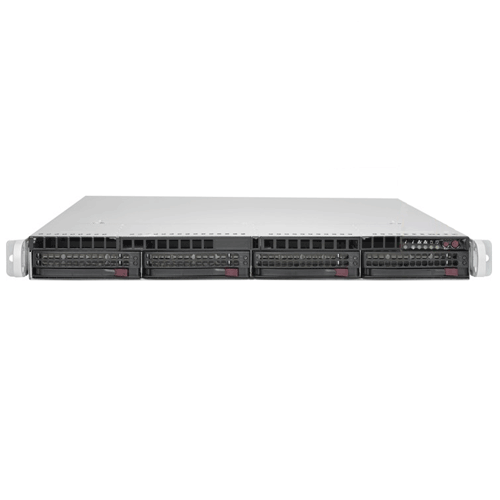

Front Panel
Buttons	• Power On/Off button • System Reset button • UID button
LED	• Power Status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED

Expansion Slots
PCI-Express	• 2x PCI-E 3.0 x16 (Full-height, Half-length) • 1x PCI-E 3.0 x8 Mezzanine for HBA cards • UIO AOC Compatibility Matrix (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Expansion Slots

PCI-Express

• 2x PCI-E 3.0 x16 (Full-height, Half-length)
• 1x PCI-E 3.0 x8 Mezzanine for HBA cards
• UIO AOC Compatibility Matrix

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap	• 4x 3.5" Hot-swap SAS / SATA HDD trays (ready for PCI-E storage controller card)

Peripheral Devices
DVD-ROM	• Slim DVD-ROM drive (optional)

Backplane
	• SAS/SATA HDD Backplane (SAS support requires optional SAS controller)

System Cooling
Fans	• 5x 4cm Counter-rotating PWM fans

AC/DC 240V Power Supply
	700W/750W Redundant Power Supplies with PMBus
Total Output Power	• 700W/750W
Dimention (W x H x L)	• 54.5 x 40 x 320 mm
Input	• 100 - 140Vac / 8 - 6A / 50-60Hz • 200 - 240Vac / 4.5 - 3.8A / 50-60Hz • 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V	• Max: 58A / Min: 0.5A (100 - 140Vac) • Max: 62A / Min: 0.5A (200 - 240Vac) • Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only)
+5V sb	• Max: 3A / Min: 0A
Output Type	• Gold Finger Connector Mating with Molex 45984-4343
Certification	• Platinum Certified

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
