Supermicro SYS-6018R-MD

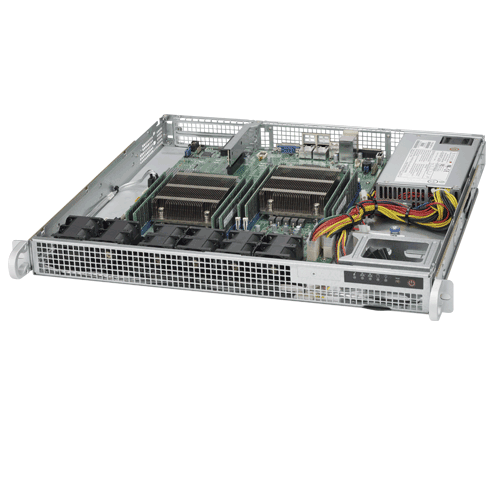

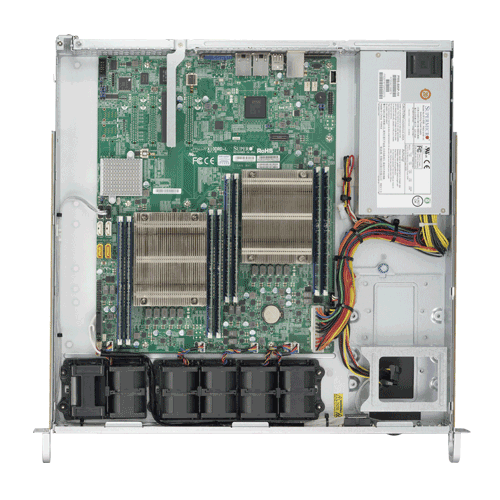

Supermicro 6018R-MD 1U Rackmount Barebone with 500W High-Efficiency Power Supply Platinum Level Certified, Intel® C612 chipset support 2x 2.5" or 1x 3.5" Fixed SATA3 Drive Bays
using Supermicro Super X10DRD-L Server Motherboard and CSE-514-505 1U Rackmount Chassis.
using Supermicro Super X10DRD-L Server Motherboard and CSE-514-505 1U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-6018R-MD | • SuperServer 6018R-MD (Silver) |
Motherboard |
|
|---|---|
| Super X10DRD-L | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011) |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Note | • † BIOS version 2.0 or above is required |
| • Please contact WillJaya Technical support for additional information | |
System Memory |
|
|---|---|
| Memory Capacity |
• 8x 288-pin DDR4 DIMM slots • Up to 1TB† ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes |
• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C612 chipset |
| SATA | • SATA3 (6Gbps); RAID 0, 1 |
| IPMI |
• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Connectivity | • Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8211E PHY (dedicated IPMI) |
| Video | • ASPEED AST2400 BMC |
Input/Output |
|
|---|---|
| SATA | • 6x SATA3 (6Gbps) ports • I-SATA 4 & I-SATA 5 support SATA DOM |
| LAN |
• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 7x USB 2.0 ports (4 rear, 2 headers, 1 Type A) |
| Video | • 1x VGA port |
| Serial Header Port | • 2x COM ports (1 rear, 1 header) |
| DOM | • 2x SuperDOM (Disk on Module) ports |
Management |
|
|---|---|
| Software |
• Intel® Node Manager • IPMI 2.0 • SuperDoctor® 5 • SSM • SPM • SUM • Watch Dog |
| Power Configuration |
• ACPI Power Management • Power-on mode for AC power recovery |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-514-505 |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 16.9" (429mm) |
| Gross Weight | • 26 lbs (11.80 kg) |
| Available Color | • Silver |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset Button |
| LED |
• Power Status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
Expansion Slots |
|
|---|---|
| PCI-Express | • 1x PCI-E 3.0 x8 (FHHL) slot |
Drive Bays |
|
|---|---|
| Hot Swap | • 2x 2.5" or 1x 3.5" Fixed SATA3 Drive Bays |
System Cooling |
|
|---|---|
| Fans | • 5x 4cm fans with optimal fan speed control |
Power Supply |
|
|---|---|
| 500W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC | |
| AC Input | • 100-240V, 50-60Hz, 6.6A max |
| DC Output | • +3.3V: 12A • +5V: 15A • +5V standby: 3A • +12V: 41A • -12V: 0.2A |
| Certification | • Platinum Certified |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features |
• Plug and Play (PnP) • PCI 2.3 • ACPI 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1 |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
5°C to 40°C (41°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
