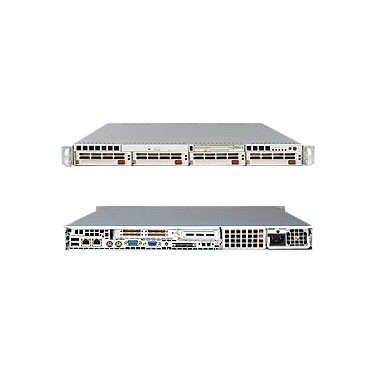

Supermicro SYS-6015P-T / SYS-6015P-TB 1U Rackmount with 700W High-efficiency Power Supply, Intel® 5000P (Blackford) chipset, support 4x 3.5" Hot-swap SATA drive bays,using
Supermicro Super X7DBP-i Motherboard and SC816A-700 Rackmount Chassis
Product SKU |
|
---|---|
SYS-6015P-T | • SuperServer 6015P-T (Beige) |
SYS-6015P-TB | • SuperServer 6015P-TB (Black) |
Motherboard |
|
---|---|
Super X7DBP-i |
Processor/Cache |
|
---|---|
CPU | • Dual 771-pin LGA Sockets |
System Bus | • 1333 / 1066 / 667 MHz system bus |
Operating System Software | • Supports 64-bit Operating Systems • Supports 32-bit Operating Systems |
System Memory |
|
---|---|
Memory Capacity |
• Eight 240-pin DIMM sockets • Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory • Dual branch memory bus • Memory must be populated in pairs |
Memory Type | • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs |
DIMM Sizes | • 512 MB, 1GB, 2GB, 4GB |
Memory Voltage | • 1.8V only • 1.5V (AMB) |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 Single Device Data Correction (SDDC) |
On-Board Devices |
|
---|---|
Chipset | • Intel® 5000P (Blackford) chipset |
SATA | • ESB2 SATA Controller • RAID 0, 1, 5, 10 support (Windows Only) • RAID 0, 1, 10 support (Linux) |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • 200-pin IPMI slot (SIM1U) • (Optional: AOC-SIM1U-3B and AOC-SIM1U-3D) |
Network Controllers | • Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/OAT support for fast, scaleable, and reliable networking |
Graphics | • ATI ES1000 controller with 16 MB of video memory |
Super I/O | • Winbond 83627HF chip |
Clock Generator | • CK410B chip |
Expansion Slots |
|
---|---|
Left Universal Slot | • 1 (x8) PCI-e slot OR |
Right Universal Slot | • 1 (x8) PCI-e slot OR • 1x 64-bit 133MHz PCI-X (3.3V) slot |
IPMI | • 1 SIM1U Slot (IPMI 2.0) (Supermicro Intelligent Management) |
Input/Output |
|
---|---|
Serial ATA | • Six Serial ATA ports • Four SATA hard drives supported |
IDE | • Single EIDE channels support up to two UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
Floppy | • 1 Floppy controller; 1.44 MB |
LAN | • 2x RJ45 LAN ports |
USB | • 2x USB rear ports |
VGA | • 1x VGA Port |
Keyboard / Mouse | • PS/2 keyboard and mouse ports |
Serial Port / Header | • 2 Fast UART 16550 serial ports
|
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • SC816A-700 |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 27" (686mm) |
Weight | • 44 lbs (20.0kg) |
Available Color | • Beige, Black |
Front Panel |
|
---|---|
Buttons | • Power On/Off button |
LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED • UID LED |
Ports | • N/A |
Drive Bays |
|
---|---|
Hot Swap | • 4x 3.5" Hot-swap SATA drive bays |
Peripheral Drives |
|
---|---|
Floppy | • 3.5" 1.44MB Slim Floppy Drive |
DVD-ROM | • Slim 8x DVD-ROM drive |
Backplane |
|
---|---|
• SAS/SATA HDD Backplane (SAS support requires optional SAS controller) |
System Cooling |
|
---|---|
Fans | • 4x 6-pin Counter-rotating Cooling Fans |
Power Supply |
|
---|---|
700W AC-DC power supply and power distributor w/ PFC | |
AC Input | • 100 - 240V, 60-50Hz, 10 - 4 Amp |
+5V stand by | • 4 Amp |
+12V | • 57 Amp |
With Power Distributor |
• +5V: 30 Amp • +3.3V: 21 Amp • -12V: 0.6 Amp |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores, +3.3V, +5V, ±12V, +5V Standby, VBAT • CPU Core 5-Phase-switching voltage regulator with auto-sense from 0.86V-1.63V |
FAN | • Total of ten proprietary fan headers for up to ten fans • Ten fans with tachometer status monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control |
Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x fan connectors • I2C temperature sensing logic • Thermal Monitor 2 (TM2) support |
LED | • CPU / System Overheat LED |
Other Features | • Chassis intrusion detection • Chassis intrusion header • SDDC Support |
System Bios |
|
---|---|
Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
Bios Features | • Plug and Play (PnP) • SMBIOS 2.3 • DMI 2.3 • PCI 2.2 • ACPI 1.0 • USB Keyboard support • Fan Speed Control |
Operating Environment / Compliance |
|
---|---|
Environmental Spec. | • Operating Temperature: 10° to 35°C (50° to 95°F)
|
