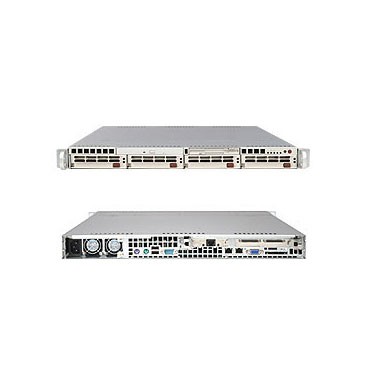

Supermicro SYS-6014H-8 / SYS-6014H-8B 1U Rackmount with 500W Cold-swap Power Supply,Intel® E7520 chipset,4x 3.5" Hot-swap Ultra320/160 SCSI drive bays, using Supermicro
Super X6DHR-X8G
Motherboard and SC813S-5000 Rackmount Chassis
Product SKU |
|
---|---|
SYS-6014H-8 | • SuperServer 6014H-8 (Beige) |
SYS-6014H-8B | • SuperServer 6014H-8B (Black) |
Motherboard |
|
---|---|
Super X6DHR-8G |
Processor/Cache |
|
---|---|
CPU | • Dual 604-pin FC-mPGA4 Sockets |
System Bus | • 800 MHz system bus |
OS Software | • Supports 64-bit Operating Systems • Supports 32-bit Operating Systems |
System Memory |
|
---|---|
Memory Capacity |
• Eight 184-pin DIMM sockets • Supports up to 16 GB DDR 333 MHz memory or • Supports up to 32 GB DDR 266 MHz memory • Dual-channel memory bus • Memory must be populated in pairs • Single-rank modules are recommended for 6+ DIMM support |
Memory Type | • DDR333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs |
DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB, 4GB** |
Memory Voltage | • 2.5 V only |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 Single Device Data Correction (SDDC) |
On-Board Devices |
|
---|---|
Chipset | • Intel® E7520 chipset |
SCSI | • Adaptec AIC-7902 Controller |
RAID | • Support for Zero-Channel RAID with Supermicro's AOC-SOZCR1 ZCR Card |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 (Optional) |
Network Controllers | • Intel® 82546GB Dual Port Gigabit Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
Graphics | • ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
Super I/O | • Winbond 83627HF chip |
Expansion Slots |
|
---|---|
PCI-Express / PCI-X |
• 2 x Universal (SXB-E) slots [1 (x8) and 1 (x4) using (x8 slots)] OR [2x 64-bit PCI-X 133MHz slot] |
Input/Output |
|
---|---|
IDE | • Dual EIDE channels support up to four UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB |
LAN | • 2x RJ45 LAN port |
USB | • 2x USB rear ports |
VGA | • 1x VGA Port |
Keyboard / Mouse | • PS/2 keyboard and mouse ports |
Serial Port / Header | • 2 Fast UART 16550 serial ports
|
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • SC813S-500 |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 25.6" (650mm) |
Weight | • 38.5 lbs (17.5kg) |
Available Color | • Beige,Black |
Front Panel |
|
---|---|
Buttons | • Power On/Off button |
LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED |
Ports | • 2x USB Ports (USB 2.0 Ready) |
Drive Bays |
|
---|---|
Hot-swap | • 4x 3.5" Hot-swap Ultra320/160 SCSI drive bays |
Peripheral Drives |
|
---|---|
Floppy | • TEAC 3.5" 1.44MB Slim Floppy Drive |
CD-ROM | • TEAC Slim 24x CD-ROM drive |
SCSI Backplane |
|
---|---|
• 1x SCA813S 1U SCSI Backplane w/ SAF-TE |
System Cooling |
|
---|---|
Fans | • 2x 10cm blower fans |
Power Supply |
|
---|---|
Cold-swappable 500W AC power supply module w/ PFC [ 20-pin, (4-pin, 8-pin) = 12V ] | |
AC Voltage | • 100 - 240V, 60-50Hz, 10-5 Amp |
DC Output | • 5V + 3.3V ≤ 160W • 12V Total ≤ 39 Amp |
+5V | • 21.0 Amp |
+5V stand by | • 2.0 Amp |
+12V1 | • 15 Amp |
+12V2 | • 15 Amp |
+12V3 | • 18 Amp |
-12V | • 1.0 Amp |
+3.3V | • 21 Amp |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby |
FAN | • Total of five 3-pin fan headers • 5x fans with status monitoring • Status monitor with firmware/software on/off control • Fan speed control |
Temperature | • Monitoring for CPU, chassis, environment • CPU thermal trip support • Thermal Monitor 2 support |
LED | • CPU Overheat LED |
Other Featue | • Chassis intrusion detection • Chassis intrusion header • SDDC support |
System Bios |
|
---|---|
Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
Bios Features | • Plug and Play (PnP) |
