  • Supermicro SYS-6014H-32B 1U Rackmount

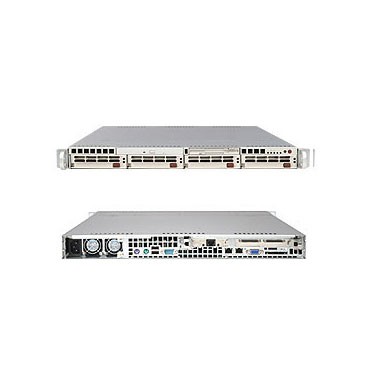

Supermicro SYS-6014H-32B 1U Rackmount

Call for price.
SKU:SYS-6014H-32B

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Support up to 3.60 GHz
• Up to 16GB DDR2 400MHz SDRAM
• 1 (x8) PCI-Express Expansion Slot OR 1 x 64-bit 133MHz
   Full-height / length PCI-X Slot
• 1 (x8) PCI-Express Slot OR 1 x 64-bit 100MHz Low-profile
   PCI-X Slot
• 2 x Intel® 82546GB Gigabit Ethernet Ports
• 4 x 3.5" SAS (SATA) Hot-swap Drive Bays
• 500W Cold-swap Power Supply with I2C for Remote Management


Details

SuperServer SYS-6014H-32 / SYS-6014H-32B 1U Rackmount

Supermicro SYS-6014H-32 / SYS-6014H-32B 1U Rackmount with 500W Hot-swap Power Supply,Intel® E7520 chipset,4x 3.5" Hot-swap SAS drive bays, using Supermicro
Super X6DHR-3G2 Motherboard and SC813T-500 Rackmount Chassis


Product SKU
• SuperServer 6014H-32 (Beige)
• SuperServer 6014H-32B (Black)
Motherboard
        Super X6DHR-3G2
Processor/Cache
CPU

• Dual 604-pin FC-mPGA4 Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Xeon Dual Core (Paxville) CPU with 2x2MB L2 Integrated Advanced Transfer Cache
• Xeon (Nocona) CPU with 1MB L2 Integrated Advanced Transfer Cache, up to 3.60 GHz
• Xeon (Irwindale) CPU with 2MB L2 Integrated Advanced Transfer Cache, up to 3.80 GHz
• Xeon LV (Low Voltage) CPU, up to 2.8 GHz

System Bus • 800 MHz system bus
Operating System Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Eight 240-pin DIMM sockets
• Supports up to 16 GB DDR2 400MHz memory
• Dual-channel memory bus
• Memory must be populated in pairs
• Single-rank modules are recommended for 6+ DIMM support
Memory Type • DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 256 MB, 512 MB, 1GB, 2GB
Memory Voltage • 1.8V only
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Single Device Data Correction (SDDC)
On-Board Devices
Chipset

• Intel® E7520 chipset
• MCH + ICH5R + PXH +82546GB

SATA • Adaptec AIC9410: Adaptec 8-port SAS Controller
• RAID 0, 1, 10, JBOD support
SAS • Adaptec AIC9410: Adaptec 8-port SAS Controller
• RAID 0, 1, JBOD support
SAS Zero Channel RAID • RAID 0, 1, 5, 10, 50
• Support for Zero-Channel RAID with Supermicro All-In-One-ZCR Card: AOC-SOZCR1
• (Card not included)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• (Optional IPMI Card: AOC-1UIPMI-B)
Network Controllers  • Intel® 82546GB Dual Port Gigabit Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics • ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Super I/O • Winbond 83627HF chip
Expansion Slots
PCI-Express /
PCI-X
• 2 x Universal (SXB-E) slots
   [1x PCI-X 133MHz & PCI-X 100MHz] OR [
   2x PCI-E (x8) (Riser cards CSE-RR1U-EL & CSE-RR1U-ELP required)]
Input/Output
SAS • Two SAS ports (1 internal, 1 external)
• Each SAS port supports up to 4 SAS / SATA drives for a total of up to 8 SAS or SATA hard drives
IDE • Dual EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy • 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
LAN • 2x RJ45 LAN ports
USB

• 2x USB rear ports
• 2x USB internal headers
• USB 2.0 Compliant / 1.1 Compliant

VGA • 1x VGA Port
Keyboard / Mouse • PS/2 keyboard and mouse ports
Serial Port / Header

• 2 Fast UART 16550 serial ports

Chassis
Form Factor • 1U Rackmount
Model SC813T-500
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 25.6" (650mm)
Weight • 38 lbs (17.2kg)
Available Color • Beige,Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power LED
• Hard Drive Activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
Ports • 2x USB & DB9 COM port tray
• (Optional - in place of floppy drive)
Drive Bays
Hot-swap

• 4x 3.5" Hot-swap SAS drive bays

Peripheral Drives
Floppy

• TEAC 3.5" 1.44MB Slim Floppy Drive

DVD-ROM

• TEAC Slim 24x CD-ROM drive

Backplane
  • 1x 1U SAS Hard Drive Backplane
System Cooling
Fans • 2x 10cm blower fans
Power Supply
  Cold-swappable 500W AC power supply module with PFC
[ 20-pin, (4-pin, 8-pin = 12V) ]
AC Voltage • 100 - 240V, 60-50Hz, 10 Amp Max
DC Output • 5V + 3.3V ≤ 160W
+5V • 30 Amp
+5V stand by • 2.0 Amp
+12V • 39 Amp
-12V • 1.0 Amp
+3.3V • 21 Amp
PC Health Monitoring
CPU

• Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby
• CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V - 1.6V
• Adjustable CPU clock frequency ratio settings (via BIOS)

FAN • Total of five 3-pin fan headers
• 5x fans with status monitoring
• Fan speed control
Temperature • Monitoring for CPU, chassis environment
• CPU thermal trip support
• Thermal Monitor 2 support
LED

• CPU Overheat LED
• System Overheat LED

Other Featue • Chassis intrusion detection
• Chassis intrusion header
• SDDC support
System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features

• Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• ACPI 1.0
• Fan Speed Control
