Details
Super PDSGE Motherboard
Product SKU |
|
---|---|

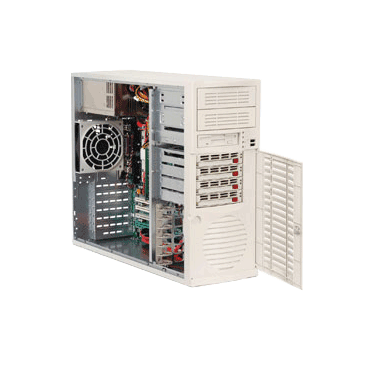

SYS-5035G-T | • SuperServer 5035G-T (Beige) |
SYS-5035G-TB | • SuperServer 5035G-TB (Black) |
Motherboard |
|
---|---|
Super PDSGE |
Processor/Cache |
|
---|---|
CPU | • Single LGA775 ZIF Socket • Supports an Intel® Pentium® D (Dual Core) processor • Supports an Intel® Pentium® Extreme Edition processor • Supports an Intel® Pentium® 4 processor • Supports an Intel® Pentium® 4 Extreme Edition processor • Supports an Intel® Celeron® D processor • Hyper-Threading (HT) capable |
System Bus | • 1066 / 800 / 533 MHz system bus |
System Memory |
|
---|---|
Memory Capacity | • Four 240-pin DIMM sockets • Supports up to 8 GB of unbuffered, ECC DDR2 667/533/400MHz memory (Single / Dual Channel) |
Memory Type | • DDR2 667/533/400MHz unbuffered, ECC SDRAM, 240-pin gold-plated DIMMs |
DIMM Size | • 256 MB, 512 MB, 1 GB, 2GB |
Memory Voltage | • 1.8V only |
On-Board Devices |
|
---|---|
Chipset | • Intel 955X (Glenwood) • ICH7R + PXH-V + Intel® 82573V |
Serial ATA | • Intel® ICH7R SATA (3 Gbps) controller built-in |
Network Controllers | • Single-port Intel® 82573V Gigabit PCI-Express Ethernet (Tekoa) |
Audio | • AC'97 audio CODEC with high quality 6-channel sound |
Super I/O | • Winbond 83627EHF chip |
Expansion Slots |
|
---|---|
PCI-Express | • 1 (x16) slot • 1 (x1) slot |
PCI-X | • 2x 64-bit 133MHz PCI-X (3.3V) slot |
PCI | • 3x 32-bit 33MHz PCI (5V) slot |
Input/Output |
|
---|---|
Serial ATA | • Four Serial ATA ports ( 3Gbps performance) • Four SATA hard drives supported |
IDE | • One EIDE channel supports up to two UDMA IDE devices |
Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support |
LAN | • 1x RJ45 LAN port |
USB | • 8x USB 2.0 compliant / 1.1 compatible (6x ports + 2x headers) |
Audio | • 1x Line In / Line Out / Microphone ports • Front Panel Header |
Keyboard/Mouse | • PS/2 keyboard and mouse ports |
Serial Ports | • 1x Fast UART 16550 serial port • 1x Serial Header |
Parallel Ports | • 1x ECP/EEP Parallel Port |
System Bios |
|
---|---|
Bios Type | • 8Mb Flash EEPROM with AwardBIOS® |
Bios Features | • User Over-Clock in System BIOS |
Chassis |
|
---|---|
Form Factor | • MidTower |
Dimension and Weight |
|
---|---|
Height | • 16.8" (427mm) |
Width | • 7" (178mm) |
Depth | • 20.9" (531mm) |
Gross Weight | • 39 lbs (17.7kg) |
Available Color | • Beige,Black |
Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset button |
LED |
• Power LED • Hard drive activity LED • Network activity LEDs • System Overheat LED |
Ports | • 2x Front side USB ports (USB 2.0 ready) |
Drive Bays |
|
---|---|
Hot-swap | • 4x 3.5"Serial ATA hot-swap drive bays |
Peripheral Bay(s) | • 2x 5.25" peripheral drive bay • 1x 3.5" bay for floppy drive |
Peripheral Drives |
|
---|---|
Floppy | • TEAC 3.5" 1.44MB Floppy Drive |
System Cooling |
|
---|---|
Fans |
• 1x 12cm rear exhaust fan • 1x 9cm mounted thermal cooling fan • 2x 8cm fans (450W power supply configuration) |
SATA Backplane |
|
---|---|
• 4 x 3.5" SATA Backplane |
Power Suplly |
|
---|---|
450W low-noise AC power supply with redundant cooling feature (with PFC) | |
AC Voltage | • 100 - 240V, 50/60Hz, 10 Amp |
DC Output | • 5V + 3.3V ≤ 160W • 12V1 + 12V2 + 12V3 ≤ 34 Amp |
+5V | • 26 Amp |
+5V standby | • 2 Amp |
+12V1 | • 15 Amp |
+12V2 | • 15 Amp |
+12V3 | • 18 Amp |
-12V | • 1.0 Amp |
+3.3V | • 30.0 Amp |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores, +1.5V, +3.3V, +5V, ±12V, +3.3V/+5V Standby, VBAT • CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V • Adjustable CPU clock frequency ratio settings (via BIOS) |
FAN | • Total of five 4-pin fan headers |
Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Monitor (TM2) Support |
LED | • CPU / System Overheat LED • +5V standby alert LED • Suspend-state indicator LED |
Other Features | • Chassis intrusion detection
|
