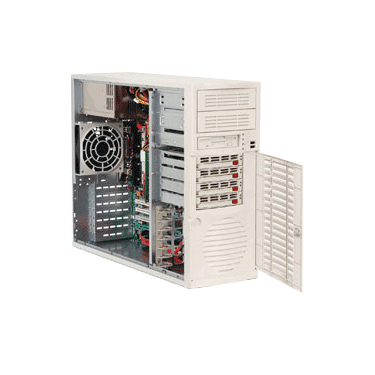

  • Supermicro SYS-5035G-T MidTower SuperWorkstation

Supermicro SYS-5035G-T MidTower SuperWorkstation

Call for price.
SKU:SYS-5035G-T

Quick Overview:

Key Features:
• Intel® Pentium® D, Pentium® 4 Extreme Edition, Pentium 4, Pentium Extreme
   Edition, & Celeron D in LGA775 Package(FSB 1066/800/533)
• Up to 8GB dual channel unbuffered, ECC DDR2 667/533/400 SDRAM
• 1 (x16) & 1 (x1) PCI-Express
   2x 64-bit 133MHz PCI-X
   3x 32-bit 33MHz PCI
• 1x Intel® 82573V (Tekoa) PCI-e Gigabit LAN Port and 8x USB 2.0 ports
• 4 x Hot-swappable SATA Hard Drive Bays
• 450W Power Supply


Details

SuperWorkstation SYS-5035G-T / SYS-5035G-TB MidTower

Supermicro SYS-5035G-T / SYS-5035G-TB MidTower SuperWorksation with 450W Power Supply, Intel 955X (Glenwood), 4 x Hot-swappable SATA Hard Drive Bays using Supermicro
Super PDSGE Motherboard

Product SKU
• SuperServer 5035G-T (Beige)
• SuperServer 5035G-TB (Black)
Motherboard
        Super PDSGE
Processor/Cache
CPU • Single LGA775 ZIF Socket
• Supports an Intel® Pentium® D (Dual Core) processor
• Supports an Intel® Pentium® Extreme Edition processor
• Supports an Intel® Pentium® 4 processor
• Supports an Intel® Pentium® 4 Extreme Edition processor
• Supports an Intel® Celeron® D processor
• Hyper-Threading (HT) capable
System Bus • 1066 / 800 / 533 MHz system bus
System Memory
Memory Capacity • Four 240-pin DIMM sockets
• Supports up to 8 GB of unbuffered, ECC DDR2 667/533/400MHz memory (Single / Dual Channel)
Memory Type • DDR2 667/533/400MHz unbuffered, ECC SDRAM, 240-pin gold-plated DIMMs
DIMM Size • 256 MB, 512 MB, 1 GB, 2GB
Memory Voltage • 1.8V only
On-Board Devices
Chipset • Intel 955X (Glenwood)
• ICH7R + PXH-V + Intel® 82573V
Serial ATA

• Intel® ICH7R SATA (3 Gbps) controller built-in
• Host RAID 0, 1, 5, and 10 Support

Network Controllers

• Single-port Intel® 82573V Gigabit PCI-Express Ethernet (Tekoa)
• Supports 10BASE-T, 100/1000BASE-TX, RJ45 output

Audio

• AC'97 audio CODEC with high quality 6-channel sound

Super I/O

• Winbond 83627EHF chip

Expansion Slots
PCI-Express • 1 (x16) slot
• 1 (x1) slot
PCI-X • 2x 64-bit 133MHz PCI-X (3.3V) slot
PCI • 3x 32-bit 33MHz PCI (5V) slot
Input/Output
Serial ATA • Four Serial ATA ports ( 3Gbps performance)
• Four SATA hard drives supported
IDE

• One EIDE channel supports up to two UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100

Floppy

• 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support

LAN

• 1x RJ45 LAN port

USB

• 8x USB 2.0 compliant / 1.1 compatible (6x ports + 2x headers)
• 2 in front (FUCI), 6 in rear

Audio • 1x Line In / Line Out / Microphone ports
• Front Panel Header
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Ports • 1x Fast UART 16550 serial port
• 1x Serial Header
Parallel Ports • 1x ECP/EEP Parallel Port
System Bios
Bios Type • 8Mb Flash EEPROM with AwardBIOS®
Bios Features

• User Over-Clock in System BIOS
• Plug and Play (PnP)
• APM 1.2
• DMI 2.3 support
• PCI 2.2
• ACPI 1.0
• BIOS rescue hot keys
• USB Keyboard support


Chassis
Form Factor • MidTower
Dimension and Weight
Height • 16.8" (427mm)
Width • 7" (178mm)
Depth • 20.9" (531mm)
Gross Weight • 39 lbs (17.7kg)
Available Color • Beige,Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED
Ports • 2x Front side USB ports (USB 2.0 ready)
Drive Bays
Hot-swap • 4x 3.5"Serial ATA hot-swap drive bays
Peripheral Bay(s)  • 2x 5.25" peripheral drive bay
• 1x 3.5" bay for floppy drive
Peripheral Drives
Floppy • TEAC 3.5" 1.44MB Floppy Drive
System Cooling
Fans • 1x 12cm rear exhaust fan
• 1x 9cm mounted thermal cooling fan
• 2x 8cm fans (450W power supply configuration)
SATA Backplane
  • 4 x 3.5" SATA Backplane
Power Suplly
  450W low-noise AC power supply with redundant cooling feature (with PFC)
AC Voltage • 100 - 240V, 50/60Hz, 10 Amp
DC Output • 5V + 3.3V ≤ 160W
• 12V1 + 12V2 + 12V3 ≤ 34 Amp
+5V • 26 Amp
+5V standby • 2 Amp
+12V1 • 15 Amp
+12V2 • 15 Amp
+12V3 • 18 Amp
-12V • 1.0 Amp
+3.3V • 30.0 Amp
PC Health Monitoring
CPU • Monitors for CPU Cores, +1.5V, +3.3V, +5V, ±12V, +3.3V/+5V Standby, VBAT
• CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
• Adjustable CPU clock frequency ratio settings (via BIOS)
FAN

• Total of five 4-pin fan headers
• 5x fans with tachometer monitoring
• Status monitor with firmware / software speed control
• Support 4-pin PWM fan (with speed control)

Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Monitor (TM2) Support
LED • CPU / System Overheat LED
• +5V standby alert LED
• Suspend-state indicator LED
Other Features

• Chassis intrusion detection
• Chassis intrusion header
• Lead Free (not 100%)
