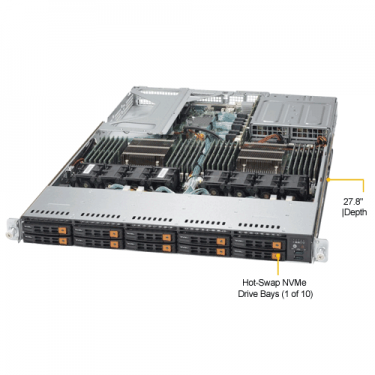

Supermicro SYS-1028U-TN10RT+ 1U Rackmount NVME SuperServer

Call for price.

SKU:SYS-1028U-TN10RT+

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
• Up to 1.5TB ECC, up to DDR4 2133MHz; 24x DIMM slots
• 3x PCI-E 3.0 x8 slots (2x FH 10.5"" L, 1x LP)
• 2x 10GBase-T ports
• 10x 2.5"" Hot-swap Drive Bays: 6x NVMe ports (NVMe from CPU 1); 4x NVMe/SAS3 hybrid ports for optional SAS3/SATA3 (NVMe from CPU 2)
• 1000W Redundant Power Supplies

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 4 DIMM and 4 NVMe). Please contact your Will Jaya sales rep for special requirements.

Description

Details

SuperServer 1028U-TN10RT+ (Complete System Only)

Supermicro SYS-1028U-TN10RT+ 1U Rackmount Server Barebone with 1000W Redundant Power Supplies Titanium Level (96%), 10x 2.5"" Hot-swap Drive Bays: 6x NVMe ports (NVMe
from CPU 1); 4x NVMe/SAS3 hybrid ports for optional SAS3/SATA3 (NVMe from CPU 2) using Supemricro Super X10DRU-i+ Server Motherboard and Supermicro CSE-119UAC2-R1K02 1U Rackmount Server Chassis.

Product SKU
SYS-1028U-TN10RT+	• SuperServer 1028U-TN10RT+ (Black)

Motherboard
	Super X10DRU-i+

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
Note	• BIOS version 2.0 or above is required
Error Detection	• Please contact WillJaya Technical support for additional information

System Memory
Memory Capacity	• 24x 288-pin DDR4 DIMM slots • Up to 3TB† ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Connectivity	• 2 10GBase-T ports via AOC-URN6-i2XT • Intel® X540 10GBase-T • 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics	• ASPEED AST2400 BMC

Input/Output
NVMe/SAS	• 6 NVMe ports (NVMe from CPU 1) • 4 NVMe/SAS3 Hybrid ports (NVMe from CPU 2)
LAN	• 2 RJ45 10GBase-T ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 5 USB 3.0 ports (2 rear, 2 front, 1 Type A)
Video	• 1 VGA Connector
Serial Port	• 1 Serial header
DOM	• 2 SuperDOM (Disk on Module) ports

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1

Management
Software	• SuperDoctor® 5 • Intel® Node Manager 3.0 • Watch Dog • NMI • SUM and SSM • Optional IPMI 1.5 / 2.0
Power Configuration	• ACPI Power Management • Power-on mode for AC power recovery

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-119UAC2-R1K02

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 27.82" (707mm)
Gross Weight	• 48 lbs (21.8 kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System UID button
LED	• Power LED • Hard drive activity LED • 2x Network activity LEDs • UID LED

Expansion Slots
PCI-Express	• 3 PCI-E 3.0 x8 slots (2 Full-height 10.5" L; 1 Low-profile) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot Swap	• 10x 2.5" Hot-swap drive bays • 6 NVMe ports (NVMe from CPU 1) • 4 NVMe/SAS3 hybrid ports for optional SAS3/SATA3 (NVMe from CPU 2)

System Cooling
Fans	• 8 heavy duty fans with optimal fan speed control
Air Shroud	• 1 Air Shroud

Power Suplly
	1000W Redundant Power Supplies with PMBus
Total Output Power	• 800W/1000W
Dimension (W x H x L)	• 73.5 x 40 x 203 mm
Input	• 100-127Vac / 9.8 - 7A / 50-60Hz • 200-240Vac / 7 - 5A / 50-60Hz
+12V	• Max: 66.7A / Min: 0A (100-127Vac) • Max: 83A / Min: 0A (200-240Vac)
12Vsb	• Max: 2.1A / Min: 0A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• UL/cUL/CB/BSMI/CE/CCC Titanium Level

PC Health Monitoring
Voltage	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. • 5+1 Phase-switching voltage regulator
FAN	• 8x 4-pin fan headers • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Support to monitor Supermicro AOC temperatures from IPMI or SD 5 • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x Fan Connectors • Thermal Monitor 2 (TM2) support • PECI
LED	• Memory DIMM ECC error LEDs • CPU / System Overheat LED • Suspend static indicator LED • UID/Remote UID
Other Features	• 4x 8-pin GPU power connectors • Chassis intrusion detection • Chassis intrusion header • SDDC Support • RoHS

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
