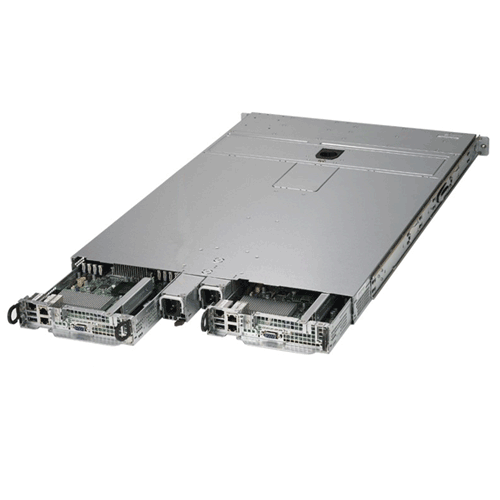

Supermicro SYS-1028TP-DC0TR 1U TwinPro Multinode

Call for price.

SKU:SYS-1028TP-DC0TR

Quick Overview:

Key Features:
Two hot-pluggable systems (nodes) in a 1U form factor. Each node supports the following:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600
v4†/ v3 family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
• 1x PCI-E 3.0 x16 Low-profile slot and 1x "0 slot"
• Intel® X540 Dual port 10GBase-T LAN
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• 4x 2.5" Hot-swap SAS3 drive bays
• LSI 3008 SAS3 controller; SW RAID
• 1000W Redundant Power Supplies Titanium Level (96%)

Description

Details

SuperServer SYS-1028TP-DC0TR 1U Rackmount

Supermicro SYS-1028TP-DC0TR 1U Rackmount with 1000W Redundant Power Supplies,Intel® C612 chipset and using Supermicro Super X10DRT-PT Motherboard and
CSE-809H-R1K05 1U Rackmount Chassis.

Product SKU
SYS-1028TP-DC0TR	• SuperServer 1028TP-DC0TR (Black)

Motherboard
	Super X10DRT-PT

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011)
Cores / Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
Note	• † BIOS version 2.0 or above is required
	* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SAS	• LSI 3008 SAS3 (12Gbps) controller; RAID 0, 1, 10 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controller	• Intel® X540 Dual port 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	• ASPEED AST2400 BMC

Input/Output (per node)
SAS	• 4x SAS3 (12Gbps) ports
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 ports (rear)
VGA	• 1 VGA port
Serial Port / Header	• 1x Fast UART 16550 port / 1 Header (internal)
Others	• 1x SATADOM support on the motherboard

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-809H-R1K05

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 19.1" (485mm)
Depth	• 29.5" (750mm)
Gross Weight	• 33.5 lbs (15.2 kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • UID button
LEDs	• Power status LED • Network activity LEDs • Universal Information (UID) LED

Expansion Slots (per node)
PCI-Express	• 1x PCI-E 3.0 x16 Low-profile slot
0 Slots	• 1x "0 slot" (x16)

Drive Bays (per node)
Hot-Swap	• 4x 2.5" Hot-swap SAS3 drive bays

System Cooling (per node)
Fans	• 3x heavy duty counter rotating fans with air shroud and optimal fan speed control

Power Stick Power Supply
	1000W Redundant Power Supplies with PMBus
Total Output Power	• 800W/1000W
Dimension (W x H x L)	• 38 x 40 x 360 mm
Input	• 100-127Vac / 9-7.5A / 50-60Hz • 200-240Vac / 6-5A / 50-60Hz
+12V	• Max: 66.7A / Min: 0A (100-127Vac) • Max: 83A / Min: 0A (200-240Vac)
+5Vsb	• Max: 1A / Min: 0A
Output Type	• Gold Finger Connector (16 Power Pin, 14 Signal Pin)
Certification	• Titanium Level

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment
Environmental Spec.	• Operating Temperature: 10° to 35°C (50° to 95°F) • Non-operating Temperature: -40° to 70°C (-40° to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)
