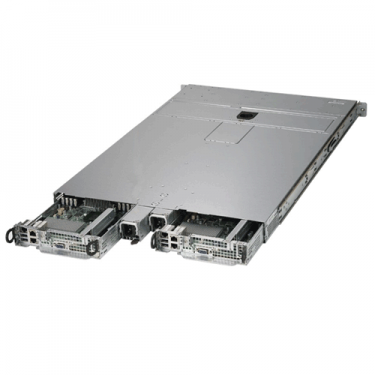

  • SYS-1028TP-DC0FR Angle
  • SYS-1028TP-DC0FR Top

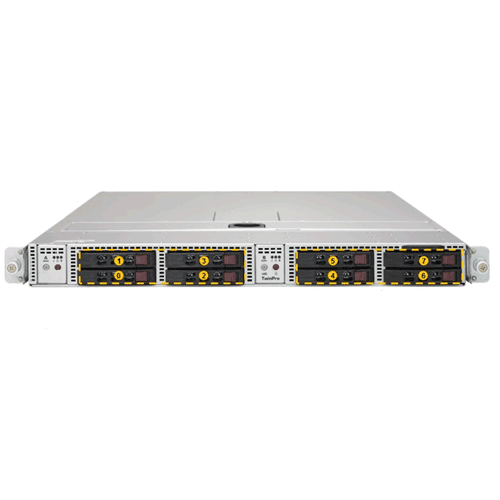

  • SYS-1028TP-DC0FR Front
  • SYS-1028TP-DC0FR Rear

Supermicro SYS-1028TP-DC0FR 1U TwinPro Multinode

Call for price.
SKU:SYS-1028TP-DC0FR

Quick Overview:

Key Features:
Two hot-pluggable systems (nodes) in a 1U form factor. Each node supports the following:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600
   v4†/ v3 family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
• 1x PCI-E 3.0 x16 Low-profile slot and 1x "0 slot"
• Single port IB (FDR, 56Gbps), w/ QSFP connector
• Intel® i350 Dual port GbE LAN
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• 4x 2.5" Hot-swap SAS3 drive bays
• LSI 3008 SAS3 controller; SW RAID
• 1000W Redundant Power Supplies Titanium Level (96%)


Details

SuperServer SYS-1028TP-DC0FR 1U Rackmount

Supermicro SYS-1028TP-DC0FR 1U Rackmount with 1000W Redundant Power Supplies,Intel® C612 chipset and using Supermicro Super X10DRT-PIBF Motherboard and
CSE-809H-R1K05 1U Rackmount Chassis.
Product SKU
• SuperServer 1028TP-DC0FR (Black)
Motherboard
        Super X10DRT-PIBF
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
• Dual Socket R3 (LGA 2011)
Cores / Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
Note • † BIOS version 2.0 or above is required


* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage • 1.2V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
Infiniband • Mellanox ConnectX-3 FDR Infiniband 56Gbps Controller
SAS • LSI 3008 SAS3 (12Gbps) controller; RAID 0, 1, 10 support
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controller

• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics • ASPEED AST2400 BMC
Input/Output (per node)
SAS • 4x SAS3 (12Gbps) ports
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB

• 2x USB 3.0 ports (rear)

VGA

• 1 VGA port

Serial Port / Header

• 1x Fast UART 16550 port / 1 Header (internal)

Others

• 1x SATADOM support on the motherboard













Chassis
Form Factor • 1U Rackmount
Model CSE-809H-R1K05
Dimension and Weight
Height • 1.7" (43mm)
Width • 19.1" (485mm)
Depth • 29.5" (750mm)
Gross Weight • 33.5 lbs (15.2 kg)
Available Color • Black
Front Panel
Buttons

• Power On/Off button
• UID button

LEDs • Power status LED
• Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-Express

• 1x PCI-E 3.0 x16 Low-profile slot

0 Slots • 1x "0 slot" (x16)
Drive Bays (per node)
Hot-Swap

• 4x 2.5" Hot-swap SAS3 drive bays

System Cooling (per node)
Fans

• 3x heavy duty counter rotating fans with air shroud and optimal fan speed control

Power Stick Power Supply
  1000W Redundant Power Supplies with PMBus
Total Output Power • 800W/1000W
Dimension
(W x H x L)
• 38 x 40 x 360 mm
Input • 100-127Vac / 9-7.5A / 50-60Hz
• 200-240Vac / 6-5A / 50-60Hz
+12V • Max: 66.7A / Min: 0A (100-127Vac)
• Max: 83A / Min: 0A (200-240Vac)
+5Vsb • Max: 1A / Min: 0A
Output Type • Gold Finger Connector (16 Power Pin, 14 Signal Pin)
Certification • Titanium Level
System Bios
Bios Type

• 128Mb SPI Flash EEPROM with AMI BIOS

Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment
Environmental Spec.

• Operating Temperature: 10° to 35°C (50° to 95°F)
• Non-operating Temperature: -40° to 70°C (-40° to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
