Supermicro SYS-1028R-WTR

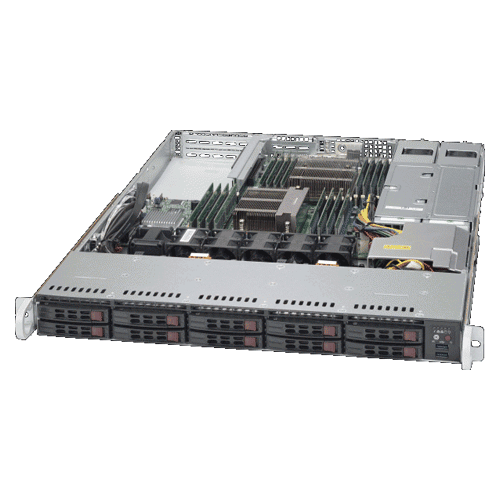

Supermicro 1028R-WTR 1U Rackmount Server Barebone with 700W Redundant Power Supplies Platinum Level High-efficiency, 10x Hot-swap 2.5" SAS/SATA HDD bays, 2xLAN, using Supermicro Super Super X10DDW-i Motherboard and CSE-116TQ-R706WB 1U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-1028R-WTR | • SuperServer 1028R-WTR (Black) |
Motherboard |
|
|---|---|
| Super X10DDW-i | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011) |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Note | • † BIOS version 2.0 or above is required |
| • Please contact WillJaya Technical support for additional information | |
System Memory |
|
|---|---|
| Memory Capacity |
• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes |
• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C612 chipset |
| SATA | • SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| IPMI |
• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Connectivity | • Intel® i350 Dual Port Gigabit Ethernet Controller • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8211E PHY (dedicated IPMI) |
| Video | • ASPEED AST2400 BMC |
Input/Output |
|
|---|---|
| Serial SATA | • 10x SATA3 (6Gbps) ports |
| LAN |
• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 6x USB 3.0 ports (4 rear + 2 via header) |
| Video | • 1x VGA port |
| Serial Header Port | • 1x Fast UART 16550 header |
| DOM | • 2x SuperDOM (Disk on Module) ports |
PC Health Monitoring |
|
|---|---|
| Voltage |
• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages • 5+1 Phase-switching voltage regulator |
| Fan | • 6x 4-pin fan headers (up to 6 fans) • 6x fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x Fan Connectors • Thermal Monitor 2 (TM2) support • PECI |
| LED | • CPU / System Overheat LED • Suspend static indicator LED • UID/Remote UID |
| Other Features | • Chassis intrusion detection • Chassis intrusion header • SDDC Support • RoHS |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-116TQ-R706WB |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 23.5" (597mm) |
| Gross Weight | • 39 lbs (17.7 kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • UID button |
| LED |
• Power Status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
Expansion Slots |
|
|---|---|
| PCI-Express | • 2x PCI-E 3.0 x16 full-height, Half-length slots |
Drive Bays |
|
|---|---|
| Hot Swap | • 10x Hot-swap 2.5" SAS / SATA HDD trays (connected to onboard storage controller) |
Backplane |
|
|---|---|
| • SAS/SATA HDD Backplane | |
System Cooling |
|
|---|---|
| Fans | • 5x 4cm heavy-duty counter-rotating fans w/ air shroud and optimal fan speed control |
AC/DC 240V Input Redundant Power Supply |
|
|---|---|
| 700W/750W Redundant Power Supplies with PMBus | |
| Total Output Power | • 700W/750W |
| Dimension (W x H x L) |
• 54.5 x 40 x 320 mm |
| Input | • 100 - 140Vac / 8 - 6A / 50-60Hz • 200 - 240Vac / 4.5 - 3.8A / 50-60Hz • 200 - 240Vdc / 4.5 - 3.8A (CCC Only) |
| +12V | • Max: 58A / Min: 0.5A (100 - 140Vac) • Max: 62A / Min: 0.5A (200 - 240Vac) • Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only) |
| +5V sb | • Max: 3A / Min: 0A |
| Output Type | • Gold Finger Connector Mating with Molex 45984-4343 |
| Certificate | • Platinum Certified |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features |
• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1 |
Management |
|
|---|---|
| Software | • SuperDoctor® 5 • Watch Dog • NMI • IPMI 2.0 • Intel Node Manager |
| Power Configuration |
• ACPI / APM Power Management • Power-on mode for AC power recovery |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
