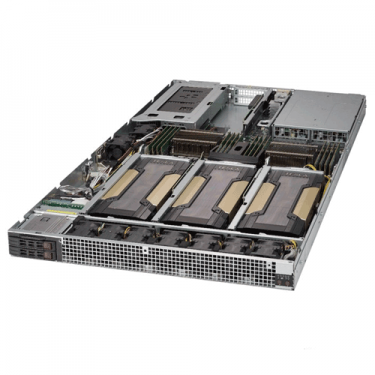

Supermicro SYS-1028GQ-TR 1U Rackmount SuperServer

Call for price.

SKU:SYS-1028GQ-TR

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
• 4x PCI-E 3.0 x16 slots (4x GPU/ Xeon Phi cards opt.), 2x PCI-E 3.0 x8 (in x16) LP slot
• Intel i350 Dual port GbE LAN
• 2x 2.5" Hot-swap drive bays, 2x 2.5" internal drive bays
• 9x 4cm heavy duty counter-rotating fans with air shroud & optimal fan speed control
• 2000W Redundant Power Supplies Platinum Level (94%+)

Description

Details

Supermicro SYS-1028GQ-TR

Supermciro 1028GQ-TR 1U Rackmount Barebone with 2000W Redundant Power Supplies, Intel® C612 chipset support 2x 2.5" Hot-swap drive bays, 2x 2.5" internal drive bays using
Supermicro X10DGQ Server Motherboard and CSE-118GQE-R2K03P 1U Rackmount Chassis.

Product SKU
SYS-1028GQ-TR	• SuperServer 1028GQ-TR (Black)

Motherboard
	Super X10DGQ

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
Note	• † BIOS version 2.0 or above is required
	• Please contact WillJaya Technical support for additional information

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Connectivity	• Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video	• ASPEED AST2400 BMC

Input/Output
SATA/SAS	• 4x SATA3 (6Gbps) ports
LAN	• 2x RJ45 Gigabit Ethernet ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 ports (2 via headers)
Video	• 1x VGA Connector
Serial Header Port	• 1x Serial header

System Bios
BIOS Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-118GQE-R2K03P

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 35.2" (894mm); 39.3" (997mm) with rails
Gross Weight	• 58 lbs (21.8 kg)

Front Panel
Buttons	• Power On/Off button • System Reset button
LED	• Power Status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED

Expansion Slots
PCI-Express	• 4x PCI-E 3.0 x16 slots (4x GPU/Xeon Phi cards optional) • 2x PCI-E 3.0 x8 (in x16) low-profile slot

Drive Bays
Hot-swap	• 2x 2.5" Hot-swap drive bays
Fixed	• 2x 2.5" internal drive bays

System Cooling
Fans	• 9x 4cm heavy duty counter-rotating fans with air shroud & optimal fan speed control

Power Supply
	2000W 1U Redundant Power Supplies with PMBus
Total Output Power	• 1000W/1800W/1980W/2000W
Dimention (W x H x L)	• 73.5 x 40 x 265 mm
Input	• 100-120Vac / 11.8-9.8A / 50-60Hz • 200-220Vac / 10-9.5A / 50-60Hz • 220-230Vac / 10-9.8A / 50-60Hz • 230-240Vac / 10-9.8A / 50-60Hz • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V	• Max: 83.3A / Min: 0.1A (100-120Vac) • Max: 150A / Min: 0.1A (200-220Vac) • Max: 165A / Min: 0.1A (220-230Vac) • Max: 166.7A / Min: 0.1A (230-240Vac) • Max: 166.7A / Min: 0.1A (200-240Vac) (UL/cUL only)
12V SB	• Max: 3.5A / Min: 0A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• Platinum Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. • 5 Phase-switching voltage regulator
FAN	• Total of nine 4-pin PWM fans • 9x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 9x Fan Connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI
LED	• Power Fail / Overheat LED • Suspend-state Indicator LED • UID LED
Other Features	• SDDC Support

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
